| Prod Model: |
FPV-101DT |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Resolution: |
1024X600(1366X768 Optional) |
| Backlight: |
LED |
| Contrast Ratio: |
500:1 |
| Response Time: |
15ms |
| Brightness: |
450CD/M2 (250CD/M2 for 1366X 768) |
| Viewing Angle: |
70° / 70°(L/R), 50 °/70°(U/D) |
| Inputs: |
AV,HDMI |
| Surface Treatment: |
Anti Glare |
| Speaker: |
Built in ,1W |
| Input Voltage: |
DC 6-24V |
| Type: |
TFT |
| Application: |
Aerial Photograph, Camera, Film Making |
| Aspect Ratio: |
16:9 |
| Feature: |
Dual 32 Channel AV Receiver ,No Blue Screen |
| Screen Size: |
10.1 Inch |
| Interface Type: |
AV,HDMI |
Product Description

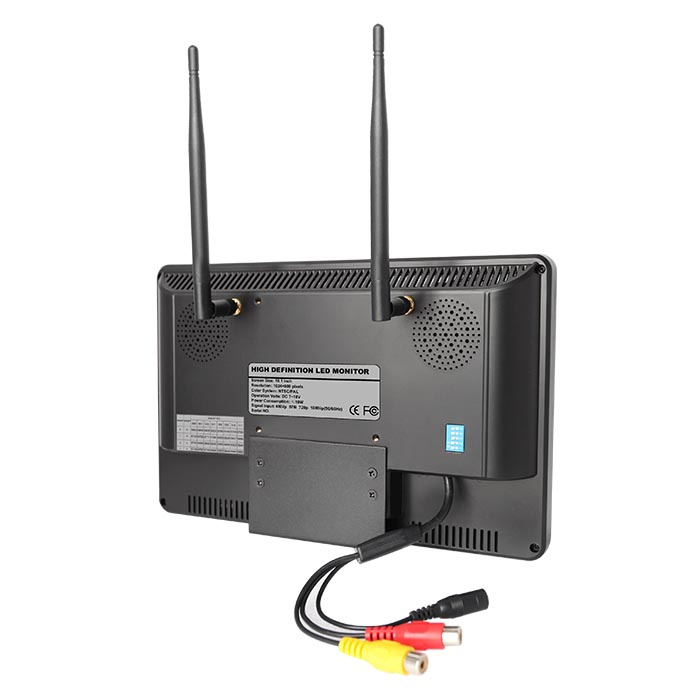

Small 10.1 Inch TFT LCD Display with AV Receiver
Advanced Features:
· High Sensitivity diversity receiver for the best possible reception, built in Dual Receiver Automatically for best reception. Automatic switching.
· The first groung station monitor, designed specially for outdoor users. No Blue Screen when signal is weak.
· Receiving Sensitivity: -90dBm
· Frequency Control: Built-in Frequency and phase lock loop
· Multiple Color format support, manually enter the menu to select the relative standard, stronger adaptability
· Analog Composite Video AV Input, connect the aerial camera
· 16: 9 aspect ratio, switch the display mode 16: 9 and 4: 3
· Connect with the camera, as a monitor for secondary monitor of aerial
· High Brightness, Contrast Ratio, Dizzy-proof monitor with sun shade, to see clearly under sunshine
· 1/4-20 thread hole is included at the bottom, easily to mount on the tripod.
|
Model Number |
FPV-101DT |
|
Screen Size |
10.1 inch |
|
Resolution |
1024x600 (1366x768 for optional) |
|
Brightness |
450cd/m 2 (250cd/m 2 for 1366x 768) |
|
Contrast Ratio |
500:1 |
|
Aspect Ratio |
16:9 |
|
Backlight |
LED |
|
Response Time |
15 ms |
|
Surface Treatment |
Anti-Glare |
|
Support Video Format |
NTSC M,PAL M, NTSC BG, PAL N, NTSC DK, PAL DK, PAL I ,Secam BG |
|
Speaker |
Built in ,1 Watt |
|
Viewing Angle |
70 ° / 70 ° (L/R), 50 ° /70 ° (U/D) |
|
Input Signals |
AV,HDMI |
|
Input Voltage |
DC 6-24V |
|
Power Consumption |
≤ 78W |
|
Battery plate(optional) |
VESA(F970,LP-E6,P-D28S) |
|
Install Way |
1/4"-20 Thread and VESA mounting socket(75mm) |
|
Working Temperature |
-20 ° c to 60 ° c |
|
Storage Temperature |
-30 ° c to 70 ° c |
|
Unit Size |
255(L)x 163(W)x34(H)mm |
|
Unit Weight |
530g |
|
Standard Accessories |
DC 12V Power Adaptor x1, Sun Shade x1, Manual x1, Anneta x2 |
|
Optional Accessories |
Battery Plate x1, |
|
Packing Details |
10PCS /CTN , |
|
Carton Size |
44x 36x48cm |
