| Prod Model: |
P215-9AHDT |
| Resolution: |
1920X1080 |
| Backlight: |
LED |
| Contrast Ratio: |
1000:1 |
| Brightness: |
1000CD/M2 |
| Viewing Angle: |
85°/85°(L/R) ,80°/80°(U/D) |
| Interfaces: |
HDMI, DVI, VGA, YPbPr, Video, Audio in, Aduio out, |
| Power Input: |
DC12V |
| Power Consumption: |
≤32W |
| Unit Size: |
550L×301.6h×34D (mm) |
| Application: |
ATM,POS, Kioks,Automation System |
| Aspect Ratio: |
16:9 |
| Feature: |
LED Backlight Display |
| Optimum Resolution: |
1920x1080 |
| Type: |
TFT |
| Widescreen: |
Widescreen |
| Response Time: |
5ms |
| 3D: |
Not 3D |
| Screen Size: |
21.5 Inch |
| Interface Type: |
AV,VGA,HDMI,DVI,YPbPr |
Product Description

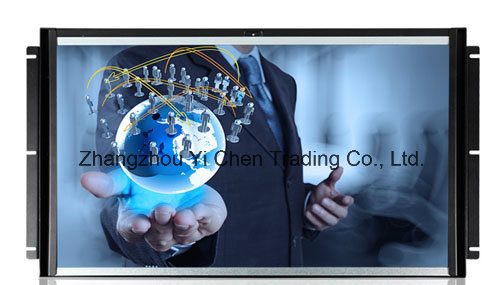

Sunglight Readable 1920x1080 Metal Frame Touch 21.5"LCD Display with HDMI Input Introduction :
GOODWELL'S Open Frame LCD display is designed for commercial and industrial applications , Auto Light Sensor, high brightness 1000cd/m² for sunlight readable . Features wide operating temperature, high brightness, touch screen optional, and customized mechanical design; fulfill the demand for extreme environments. It offers the best visibility, performance and cost effective value. The high level of brightness together with fast response time and LED backlight technology, the monitor brings remarkable display quality. And guaranteeing product life cycle longevity, stability, and reliability.Perfectly suitable for kiosks, ATM, POS, marline, military, medical, transportation, Avionics, industrial automation, gaming, digital entertainment display and outdoor application.
Applications:
Mainly Used in Closed-Circuit Surveillance Systems
Car Video, PC Operating Systems
Vehicle Navigation Systems Supporting Display
Can Also be Applied for Industrial Automation
Medical Machine Equipments
Electric Power
Petrification
Monitor
Navigation
POS, ATM and Instrumentation Display Systems
Advanced Features:
1. 21.5 inch Open Frame LCD display is designed for commercial and industrial applications
2. Auto Light Sensor, With ambient light sensor, auto dimming, reducing light pollution and energy saving.(1000cd/m2 under sunlight, 500cd/m2 during normally day, 200cd/m2 at night.)
3. Features wide operating temperature, high brightness,
4. Touch screen optional
5. VGA, DVI, HDMI, AV, YPbPr, S-Video, BNC etc multiple inputs/outputs optional
6. Customized mechanical design; fulfill the demand for extreme environments.
7. It offers the best visibility, performance and cost effective value.
8. The high level of brightness together with fast response time and LED backlight technology,
9. the monitor brings remarkable display quality, and guaranteeing product life cycle longevity, stability, and reliability.
10.Rugged Industrial Design metal housing, high perspective glass with and Anti-Glare.
Customizations :
We're able to design and adjust both hardware and software to match your cost and application requirement. Screen Size Optional, and the interface optional.
Specifications :
| Model Number | P215-9AHDT( P215-9AHD without touch ) |
| Screen Size | 21.5 inch |
| Resolution | 1920×1080 pixels |
| Dot Pitch | 0.24825×0.24825 mm |
| Aspect Ratio | 16:9 |
| Brightness | 1000cd/m² (Light Sensor) |
| Contrast Ratio | 1000:1 |
| Backlight | LED |
| Viewing Angle | 85°/85°(L/R) ,80°/80°(U/D) |

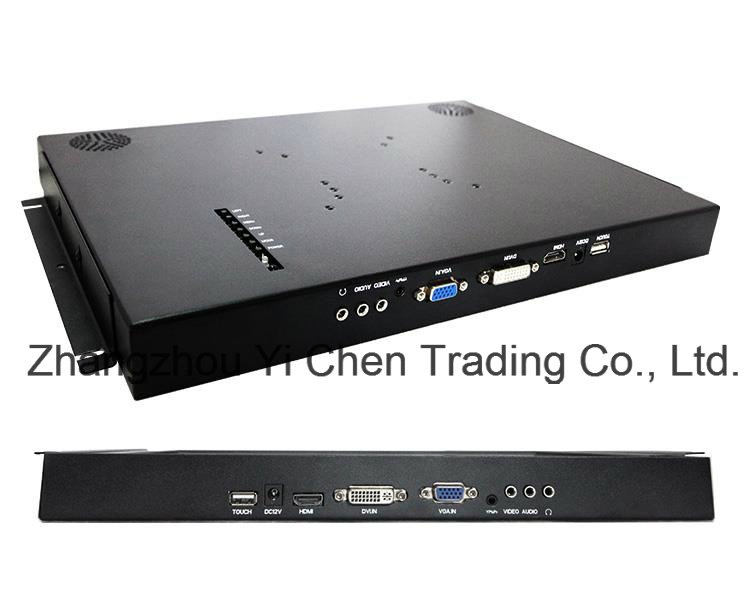

| Interfaces (Standard) | HDMI, DVI, VGA, YPbPr, Video, Audio in, Aduio out, USB for touch |
| Interfaces(Optional) | P215-9AHT: Audio out, Audio in, HDMI, VGA, AV1, AV2
P215-9AT: VGA, S-video, Video, Audio R/L in, Audio in, Audio out, USB for touch |
| Power Input | DC12V |
| Power Consumption | ≤32W |
| Working Temperature | -20ºC~60ºC |
| Storage Temperature | -30ºC~70ºC |
| Relative Humidity | 5(%RH)~90(%RH) |
| Unit Size | 550L×301.6H×34D (mm) |
| Unit Weight | 4.3kg |
| | |
| | |
Goodwell Technology Limited major in producing and selling the high technology electronic products. Base on the R&D department and the demand of market, we develop many kinds of new products to meet the customer's demand of different period and different market.
Our major products are TFT LCD Monitors, Car Touchscreen monitors, LCD SKD modules, Mobile Embedded Computing Device, Satellite Finder, Photography Monitor.
We have own R&D team major in developing the intelligent meters and the industrial control system and equipment, Display instruments.
Attributing to our strict quality control in components selection before production and performance inspection. Our Products are popular in Europen and North American Countries.
We will develop more new produts and catch up the market change. OEM and ODM are Welcome.
