| Prod Model: |
P133-9HSD |
| Application: |
Surveillance |
| Aspect Ratio: |
16:9 |
| Optimum Resolution: |
1920x1080 |
| Type: |
IPS |
| Widescreen: |
Widescreen |
| 3D: |
Not 3D |
| Screen Size: |
13.3" |
| Feature: |
3G-Sdi Input |
| Interface Type: |
3G-Sdi,HDMI,DVI,YPbPr, Video, Audio |
Product Description

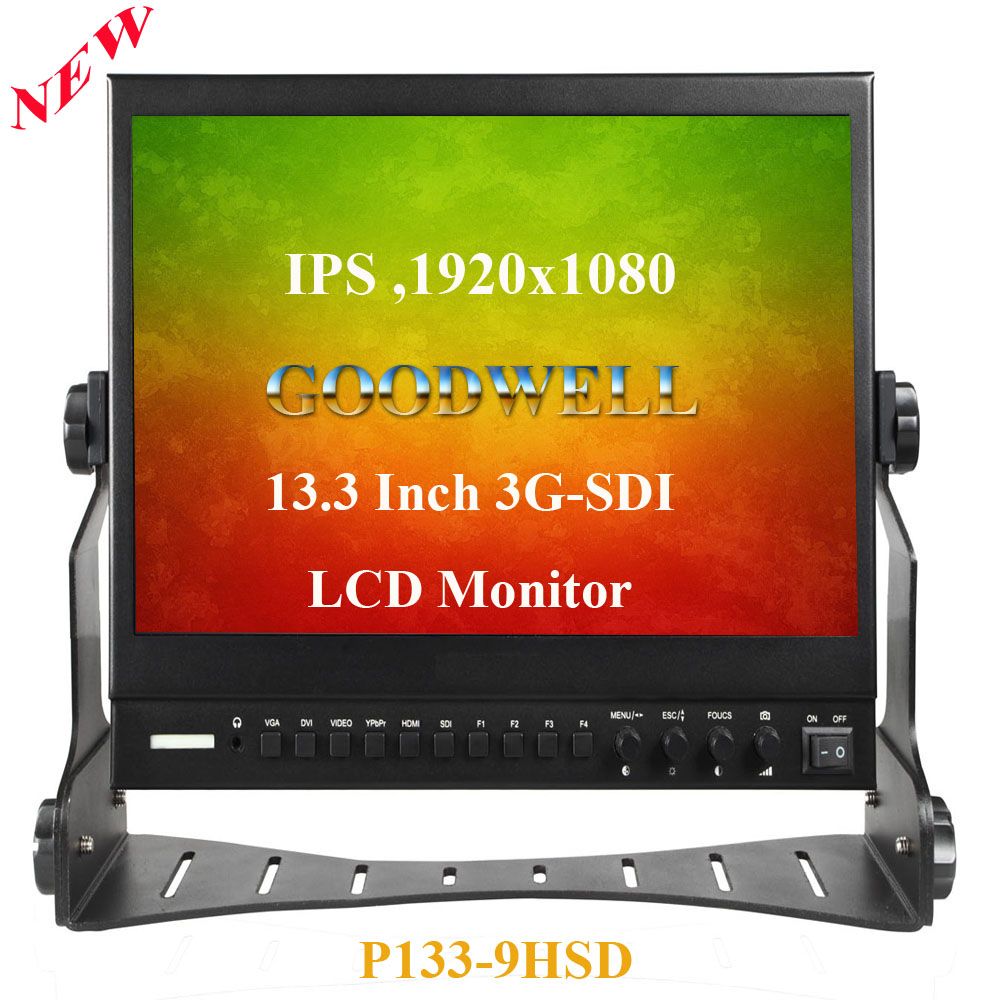

13.3 Inch Aluminum Design IPS 1920 x1080 Professional
Broadcast LCD Monitor with Peaking Focus
Product Description Introductions: GOODWELL Professional Broadcast LCD Monitor has been widely used in TV news production, broadcasting house, TV broadcasting truck and other fields. Since this series is working with other adjacent professional equipments, therefore, high stability, high reliability and electromagnetic compatibility are very important to make sure the whole system work smoothly, stability and reliability. The full aluminum case not only makes the product more solid and durable, but also solves the problem of heat dissipation. Full aluminum case improves the anti-interference capability . 1920X1080 IPS Full HD Panel: 13.3 inch 1920 x1080 Full HD panel what you see is truly viewing angles outputting crisp, clear shots on the field, which means less time in the editing room. The Full HD Panel of P133-9HSD is the tool of choice for high quality color reproduction. Innovation OSD operation:P133-9HSD not only set up five " F key" for peaking focus assist, check field, camera mode function, pixel to pixel, Center Marker, Safe Marker, Image Flip and so on, reserves the knob for professional users. Double functions and knob type coding switch are our exclusive technology feature, which will bring you more convenient and rapid operate feeling.Multiple Inputs and Outputs: | Inputs | Outputs |

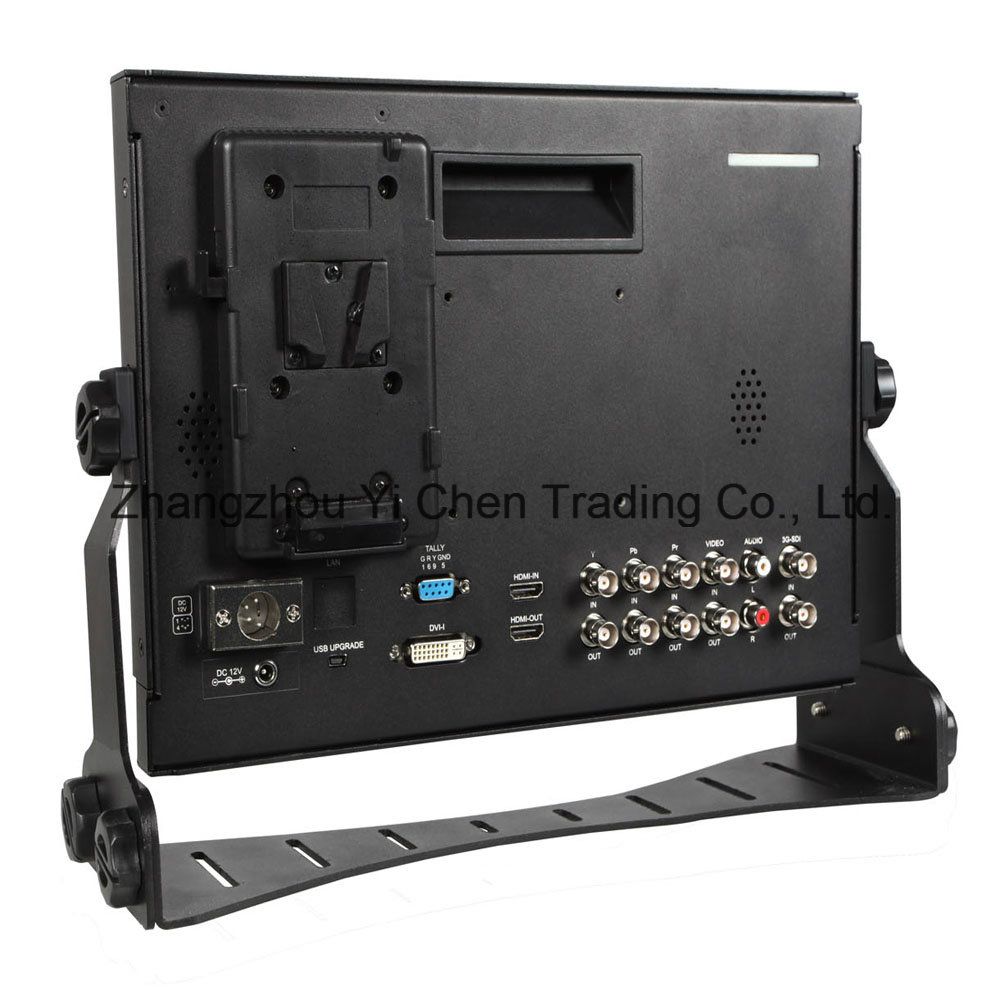

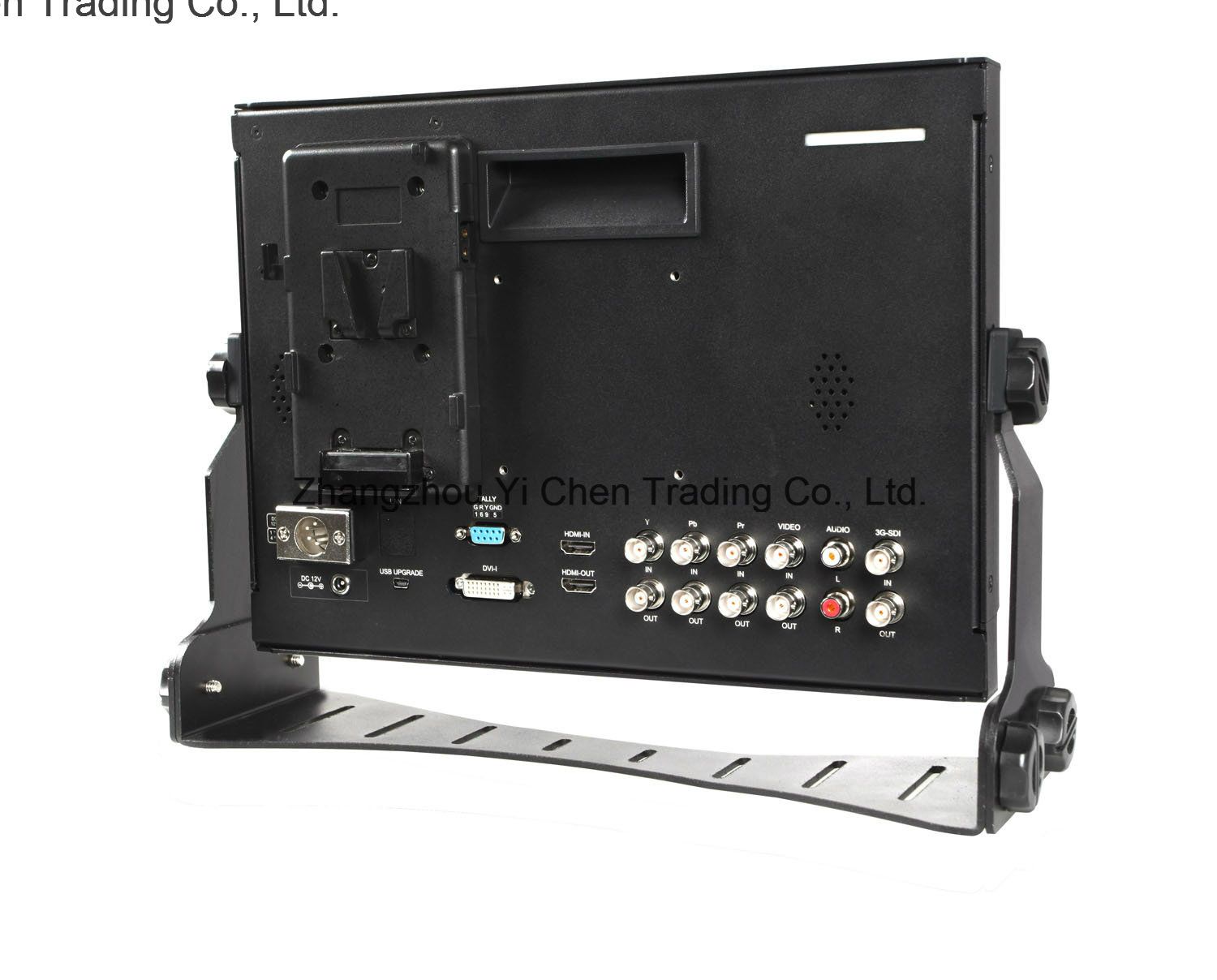

| YPbPr x3 | YPbPr x3 |
| 3G-SDI x1 | 3G-SDI x1 |
| HDMI x1 | HDMI x1 |
| DVI-I x1 | Video x1 |
| Video x1 | Audio: Stereo Headphone, Internal Speaker |
| RCA Auido (L/R) x2 | |
3 color Tally Light:Both front and rear side, there is front and rear TALLY lights for with 3 colors display (Red, Green, Yellow), and controlled via DB-9 ports on the rear panel. Main Features: 1. IPS Panel with Wide view angle, Full HD 1920 x 1080, bright, colorful display2. HDMI, 3G-SDI, YPbPr, Video, Audio(L/R) inputs and HDMI, 3G-SDI, Ypbpr, Video loop-through outputs3. Special Features:
Peaking Focus Assist (Red highlight over parts of the monochrome image in focus)
Check Field (Red, Green, Blue, Mono)
Camera Mode
Pixel to PixelCenter Marker
Safe Marker (80%, 85%, 90%,93%, 96%,2.35:1)
Image Flip (Horizontal, Vertical, Hor and Ver)
Image Freeze4. Monitoring via front panel 3.5mm stereo headphone jack and built-in speaker5. Built-in LED tally indicators (Red, Green, Yellow)6. Power using included 12 volt supply or use standard 4-pin XLR Specifications : | Model Number | P133-9HSD (P133-9HD without SDI Input ) |
| Screen Size | 13.3 inch with IPS Panel |
| Resolution | 1920 x 1080 |
| Backlight | LED |
| Aspect Ratio | 16:9 |
| Contrast Ratio | 1000:1 |
| Brightness | 400cd/m2 |
| Viewing Angle | 85°/85°(L/R) ,85°/85°(U/D) |
| Input Signal | 3G-SDI x1, YPbPr x3, HDMI x1, DVI-Ix 1, Video x1, RCA Auido (L/R) x2 |
| Output Signal | 3G-SDI x1, YPbPr x3, HDMI x1, Video x1 |
| Audio Out | Stereo Headphone, Speaker |
| SDI Support Format | 480i/576i
720p(60/59.94/50/30/29/25/24/23.98)
1080i(60/59.94/50)
1080p(60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF) |
| HDMI Support Format | 480i/576i/480p/576p
1080i (60/59.94/50)
720p (60/59.94/50/30/29/25/24/23.98)
1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF) |
| Input Voltage | DC7-12V |
| Power Consumption | ≤15W |
| Working Temperature | -20°C-55°C |
| Storage Temperature | -30°C-65°C |
| Unit Size | 315.5Lx229Hx26.4D (without handle) |
| Unit Weight | 1.64kg ( without handle) |
| | |
| | |
| | |
Standard Accessories : 1 x 3A DC Power Adapter
1 x V Battery Plate
1 x Mini HDMI Cable
1x Tally Kit
1x Sunshade
1x U bracket
1x Operation Manual
