| Prod Model: |
P729-9AHT |
| Resolution: |
800X 480 |
| Backlight: |
LED |
| Contrast Ratio: |
500:1 |
| Brightness: |
250CD/M2 |
| Viewing Angle: |
70°/70°(L/R), 50°/70°(U/D) |
| Input Signal: |
Audio out,Audio in,HDMI,VGA,AV1,AV2 |
| Power Input: |
DC12V±15% |
| Power Consumption: |
≤6W |
| Unit Size: |
217.8L × 103.1h× 30d mm |
| Application: |
ATM,POS, Kioks |
| Aspect Ratio: |
16:9 |
| Feature: |
HDMI Input |
| Type: |
TFT |
| Widescreen: |
Widescreen |
| 3D: |
Not 3D |
| Screen Size: |
7 Inch |
| Optimum Resolution: |
800X480 |
| Response Time: |
15ms |
| Interface Type: |
AV,VGA,HDMI |
Product Description

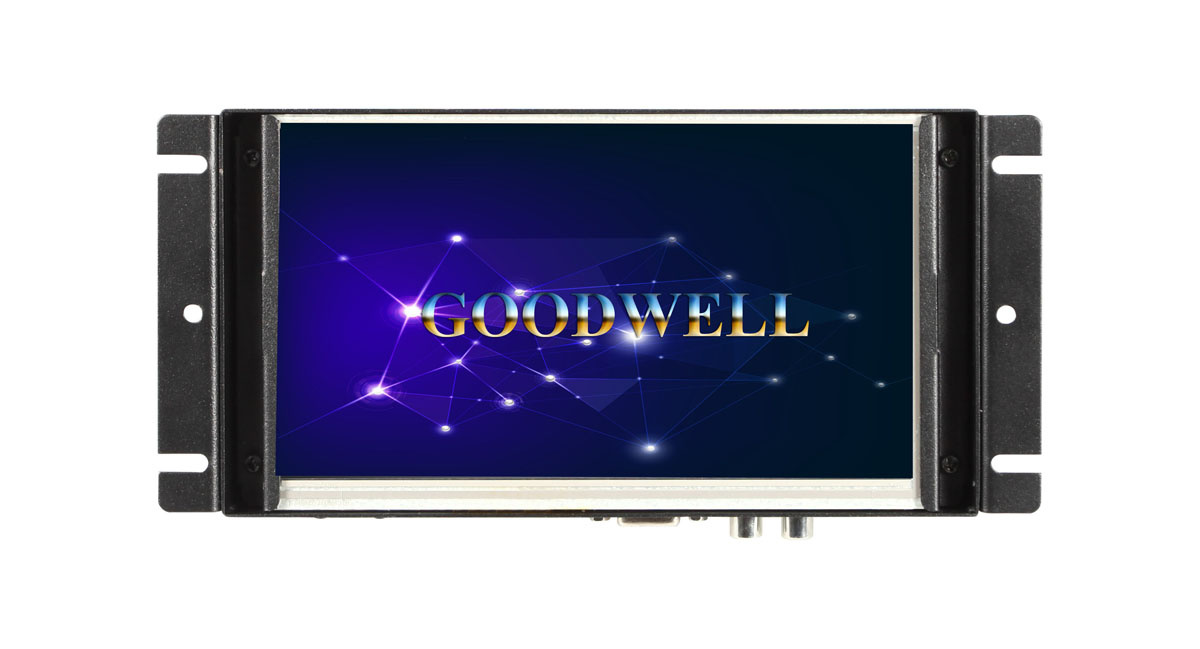

New Industrial 800x 480 Touch 7 Inch Metal Frame Open Frame
LCD Monitor with HDMI Input
Instruction : The GOODWELL industrial LCD Open frame Monitors series provides industrial grade LCD panels, which are developed specially to work with embedded boards, provides flexible customization services.They can be used in a wide variety of industrial and commercial applications. Perfect for: gaming, ATM machines, kiosk displays, and much more, Our Open frame LCD Monitors offer easy integration for maximum flexibility. Our Open Frame LCD Monitors are manufactured with steady performance and low power consumption. They are mainly applied to various facilities, such as car navigation system, HTPC, thin client PC, panel PC, POS, industrial control system etc. Customization Services:We're able to design and adjust both hardware and software to match your cost and application requirement. Screen Size Optional, and the interface optional. Applications : Mainly Used in Closed-Circuit Surveillance Systems
Car Video, PC Operating Systems
Vehicle Navigation Systems Supporting Display
Can Also be Applied for Industrial Automation
Medical Machine Equipments
Electric Power
Petrification
Monitor
Navigation
POS, ATM and Instrumentation Display Systems Specifications : | Model No. | P729-9AHT(P729-9AH withou touch screen ) |
| Screen Size | 7 Inch |
| Resolution | 800x 480 |
| Backlight | LED |
| Aspect Ratio | 16:9 |
| Contrast Ratio | 500:1 |
| Brightness | 250cd/m2 |
| Viewing Angle | 70°/70°(L/R), 50°/70°(U/D) |
| Response Time | 15ms |
| Interfaces (Standards) | P729-9AHT: Audio out,Audio in,HDMI,VGA,AV1,AV2 |
| Interfaces(Optional) | P729-9AHDT: HDMI,DVI,VGA,YPbPr,Video,Audio in,Audio out,USB for touch |
| Interfaces(Optional) | P729-9AT: VGA, S-video,Video,Audio R/L in,Audio in,Audio out,USB for touch |
| Input Voltage | DC12V±15% |
| Power Consumption | ≤6W |
| Working Temperature | -20ºC~60ºC |
| Storage Temperature | -30ºC~70ºC |
| Unit Size | 217.8L × 103.1H× 30D mm |
| | |
| | |
| | |
Goodwell Technology Limited major in producing and selling the high technology electronic products. Base on the R&D department and the demand of market, we develop many kinds of new products to meet the customer's demand of different period and different market.
Our major products are TFT LCD Monitors, Car Touchscreen monitors, LCD SKD modules, Mobile Embedded Computing Device, Satellite Finder, Photography Monitor.
We have own R&D team major in developing the intelligent meters and the industrial control system and equipment, Display instruments.
Attributing to our strict quality control in components selection before production and performance inspection. Our Products are popular in Europen and North American Countries.
We will develop more new produts and catch up the market change. OEM and ODM are Welcome.
