| Prod Model: |
D71 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Resolution: |
1280X800 |
| Backlight: |
LED |
| Contrast Ratio: |
800:1 |
| Brightness: |
400CD/M2 |
| Viewing Angle: |
89°/89°(L/R) ,89°/89°(U/D) |
| Inputs For Each LCD: |
3G/HD/SD-Sdi X1, HDMI X1, Video X1, Audio(L/R)X1 |
| Outputs For Each LCD: |
3G/HD/SD-Sdi X1, HDMI X1,Video X1 |
| Control Input: |
Ethernet X1 |
| Input Voltage: |
DC 9V-24V |
| Power Connector: |
DC 12V/ 4-Pin XLR |
| Application: |
TV Broadcasting |
| Aspect Ratio: |
16:10 |
| Type: |
IPS |
| Widescreen: |
Widescreen |
| 3D: |
Not 3D |
| Screen Size: |
7&Quot;X2 |
| Feature: |
Sdi,HDMI,AV Input |
| Optimum Resolution: |
1280X800 |
| Interface Type: |
3G/HD/SD-Sdi X1, HDMI X1, Video X1, Audio(L/R)X1 |
Product Description

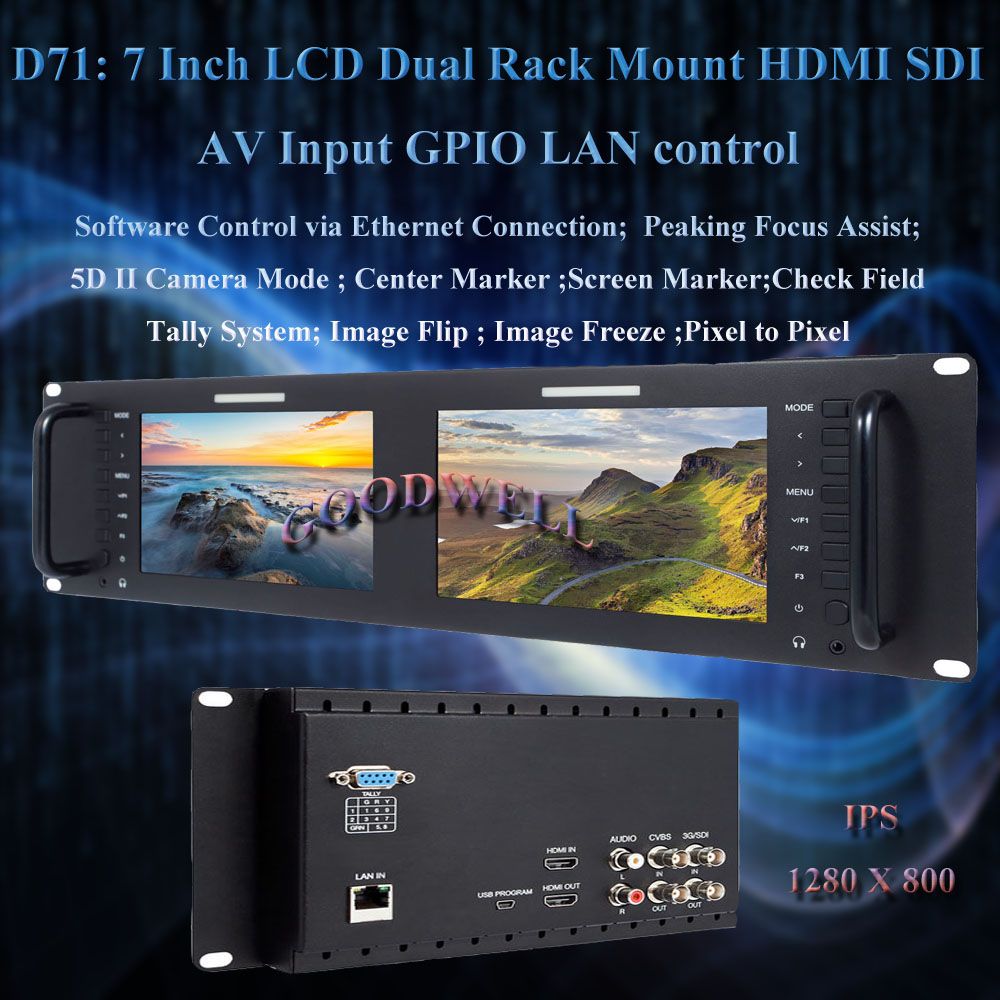

Dual 7" 3RU IPS 1280x800 Broadcast LCD Rack Mount Monitor with 3G-SDI, HDMI, AV input and output D71
Introductions :
D71 are extremely thin and lightweight.7" 3RU Rack Monitors with dual 7" IPS 1280x800 screens, viewing SD, HD and 3G-SDI video on 3RU rack monitor.With GPIO for Software control via Ethernet connection. GOODWELL Rack mount LCD monitor has been widely used in all levels of TV news production, post production, programme broadcasting and TV broadcasting trucks, special vehicles video surveillance and other fields. Since this series is working with other adjacent professional equipments, therefore, the high stability, high reliability and electromagnetic compatibility are very important conditions to make sure the whole system work smoothly.
Main Features :
1. Wide view angle IPS Screen, High resolution 1280x800, bright, colorful display
2. Software control via Ethernet connection
3. Slim design and 3RU size
4. HDMI,3G/HD/SD-SDI input and loop-through
5. Special Features:
Peaking Focus Assist (Red highlight over parts of the monochrome image in focus)
Check Field (Red, Green, Blue, Mono)
Pixel to Pixel
Center Marker
Safe Marker (80%, 85%, 90%, 93%, 96%,2.35:1)
Image Flip (Horizontal, Vertical, Hor&Ver)
Image Freeze
6. Monitoring via front panel 3.5mm stereo headphone jacks
7. Built-in LED tally indicators (Red, Green, Yellow)
8. Power using included 12-volt supply or use standard 4-pin XLR
Enjoy Consistent Images from Any Perspective:
D71 uses an IPS panel, which provides a wide 178°/178° viewing angle and brightness output of up to 400nit. This means you'll be able to see accurate, consistent and bright images from any point of view.
Multi-format Input/ Output : SDI / HDMI / CVBS / Audio
Each LCD of D71 monitor supports:
3G/HD/SD-SDI input × 1
3G/HD/SD-SDI loop output × 1
HDMI input × 1
HDMI loop output × 1
CVBS input × 1
CVBS output × 1
Audio(L/R) input× 1
Stereo Headphone output× 1
USB for Upgrade
Network Control:
D71 rack mount Monitor includes a LAN port,This allows the operator to Software control via Ethernet connection (software included).The rear panel LAN 100 port connects the unit to the LAN. Once connected, the user simply locates the IP address of any one of the units connected to the LAN. This is accomplished by going to the MAIN MENU of any of the connected units and selecting the NETWORK CONFIGURATION submenu. This will then display the IP address of that unit.Simply type this IP address into the address bar of your Software . It is possible to poll your LAN for all other units connected by accessing the NETWORK tab from the Top Menu.
Specifications :
| Screen Size | 7" x2 ,IPS Panel |
| Resolution | 1280x 800 |
| Backlight | LED |
| Aspect Ratio | 16:10 |
| Contrast Ratio | 800:1 |
| Brightness | 400cd/m2 |
| Viewing Angle | 89°/89°(L/R) ,89°/89°(U/D) |
| SDI Support Format | 480i/576i, 720p(60/59.94/50/30/29/25/24/23.98),
1080i(60/59.94/50), 1080p(60/59.94/50/30/29.97/25/24/24sF/23.98/23.98sF) |
| HDMI Support Format | 480i/576i/480p/576p, 720p(60/59.94/50/30/29/25/24/23.98), 1080i(60/59.94/50),1080p(60/59.94/50/30/29.97/25/24/24sF/23.98/23.98sF) |
| Inputs (Each LCD ) | 3G/HD/SD-SDI x1, HDMI x1, Video x1, Audio(L/R)x1 |
| Outputs (Each LCD ) | 3G/HD/SD-SDI x1, HDMI x1,Video x1 |
| Control Input | Ethernet x1 |
| Audio | Earphone slot x1 |
| Tally | Red, Green, Yellow |
| Focus Assist | Objects in focus with red peaking |
| Safe Marker | 80%, 85%, 90%, 93%, 96%,2.35:1 |
| Image Flip | Horizontal, Vertical, Hor&Ver |
| Check Field | Red, Green, Blue, Mono |
| Pixel to Pixel | Yes |
| Image Freeze | Yes |
| Center Marker | Yes |
| Power Consumption | ≤20W |
| Input Voltage | DC 9V-24V |
| Power Connector | DC 12V/ 4-pin XLR |
| Working Temperature | -20ºC~55ºC |
| Storage Temperature | -30ºC~65ºC |
| Install Way | Rack Mount |
| Unit Size | 482.6Lx132Hx30.5D (mm) |
| Unit Weight | 1890g |
