| Prod Model: |
T51 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Resolution: |
800X480 |
| Backlight: |
LED |
| Contrast Ratio: |
500:1 |
| Brightness: |
500CD/M2 |
| Viewing Angle: |
70°/70°(L/R), 50°/70°(U/D) |
| Inputs: |
HDMI,3G/HD/SD-Sdi,Audio(L/R),Video |
| Outputs: |
HDMI,3G/HD/SD-Sdi,Video,3.5mm Audio Jack |
| Power Consumption: |
≤25W |
| Input Voltage: |
DC 9V~24V |
| Install Way: |
Rack Mount |
| Application: |
TV Broacasting |
| Aspect Ratio: |
16:9 |
| Type: |
TFT |
| Widescreen: |
Widescreen |
| Response Time: |
10ms |
| 3D: |
Not 3D |
| Screen Size: |
5&Quot;X3 |
| Feature: |
Sdi,HDMI, AV Input |
| Optimum Resolution: |
800X480 |
| Interface Type: |
Sdi,HDMI,Video,Audio |
Product Description

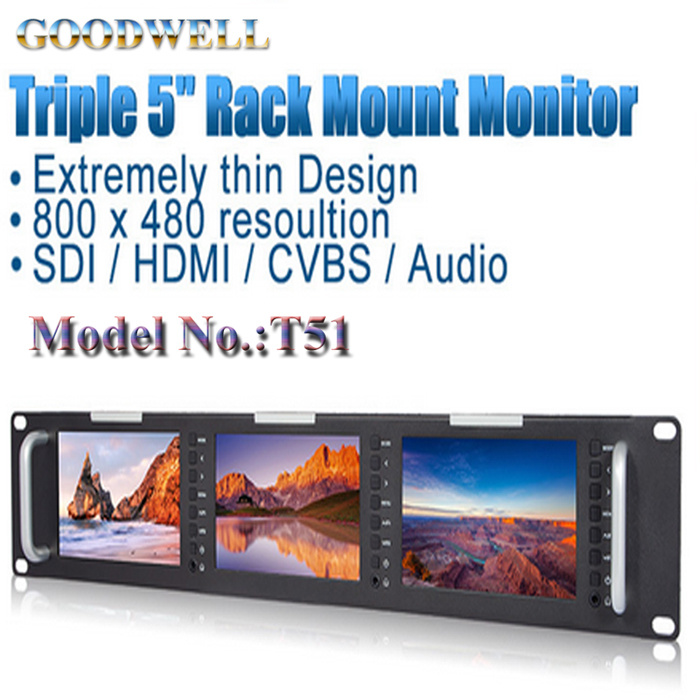

Triple 5" 2RU 800×480 Broadcast LCD Rack Mount Monitor with 3G-SDI, HDMI, AV input and output T51
Main Features :
Peaking Focus Assist(Red highlight over parts of the monochrome image in focus)
*Pixel to Pixel
*Centre Marker
*Screen Marker(80%,85%,90%,93%,96%,2.35:1)
*Image Flip(U/D,L/R)
*Check Field(Red,Green,Blue,Mono)
*Image Freeze
*Tally System
Specifications :
| Model | T51 |
| Screen size | 5"x3 |
| Resolution | 800×480 pixels |
| Dot pitch | 0.045(W)×0.135(H) mm |
| Aspect Ratio | 16:9 |
| Brightness | 500cd/m2 |
| Contrast | 500:1 |
| Backlight | LED |
| Response time | 10 ms |
| Viewing Angle | 70°/70°(L/R), 50°/70°(U/D) |
| Inputs | HDMI,3G/HD/SD-SDI,Audio(L/R),Video |
| Outputs | HDMI,3G/HD/SD-SDI,Video,3.5mm Audio Jack |
| SDI Support Format | 480i/576i |
| 720p(60/59.94/50/30/29/25/24/23.98) |
| 1080i(60/59.94/50) |
| 1080p(60/59.94/50/30/29.97/25/24/24fps/23.98/23.98fps) |
| HDMI Support Format | 480i/576i/480p/576p |
| 1080i (60/59.94/50) |
| 720p (60/59.94/50/30/29/25/24/23.98) |
| 1080p(60/59.94/50/30/29.97/25/24/24fps/23.98/23.98fps) |
| Power Consumption | ≤25W |
| Input Voltage | DC 9V~24V |
| storage Temperature | -20ºC~ 55ºC |
| workinging Temperature | -30ºC~ 65ºC |
| Install Way | Rack Mount |
| Unit Size | 482.6Lx88Hx34D mm |
| Unit Weight | 1570g |
Standard Accessories :
1× 3A Power Adapter
1× Tally Kit
1× Operation Manual
