| Prod Model: |
12.1-SKD |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Brightness: |
450CD/M2 |
| Backlight: |
LED |
| Contrast Ratio: |
350:1 |
| Touch Screen: |
4-Wire/5-Wire Touch Panel |
| Touch Interface: |
USB |
| Application: |
Surveillance |
| Aspect Ratio: |
16:9 |
| Feature: |
With Remote Control |
| Type: |
TFT |
| Widescreen: |
Widescreen |
| Response Time: |
8ms |
| 3D: |
Not 3D |
| Interface Type: |
HDMI |
| Screen Size: |
12.1 Inch |
| Optimum Resolution: |
1280X800 |
Product Description
AUKA supplies integrated LCD touch display solutions, which will make the process of your development easy. The module seals LCD, touch screen, the foundation hardware and software (driver), and universal connection (USB or RS232) to PC and embedded system.We focuses on LCD display module integrate touch screen in medium and small size between 5~12.1 inches. Touch screen technology is the most popular form in applications ranging from industry to consumer . It is more convenient compared with key button control technology. The input signal includes HDMI, AV, VGA, S-video, DVI, YPbPr and 3G-SDI, etc.

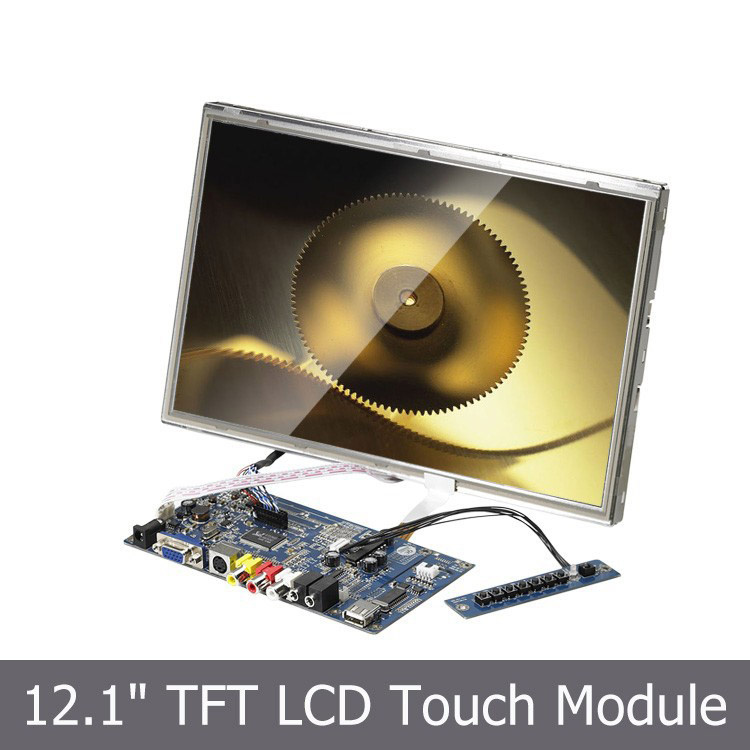

| Description | 12.1" TFT LCD SKD (touchscreen optional) |
|
|
| Model | 12.1-SKD |
|
| Touch Screen | 4&5Wire Resistive Touch(Optional) |
|
| Touch Interface | USB |
|
| Dot Resolution | 1280x800 pixels (max to1920×1440) |
|
| Aspect Ratio | 16:10 |
|
| Brightness | 400cd/m² |
|
| Contrast Ratio | 800:1 |
|
| Backlight | LED |
|
| Viewing Angle | 70°/70°(L/R) 45°/70°(U/D) |
|
| Input Signals | VGA,Video,Audio,S-Video(HDMI&DVI optional) / VGA,Video1,Video2,Audio(HDMI for optional) |
|
| Output Signals | Audio(earphone) |
|
| Input Voltage | DC12V±15% |
|
| Power Consumption | ≤23W |
|
| workingTemperature | -20ºC~60ºC |
|
| storage Temperature | -30ºC~70ºC |
|
| Unit Size | 278.34L×183.6W×13.05H(mm) |
|
| Unit Weight | 1500g |
|
AUKASKD modules are manufactured with steady performance and low power consumption. They are mainly applied to various facilities, such as car navigation system, HTPC, thin client PC, panel PC, POS, industrial control system etc.
Applications
Mainly Used in Closed-Circuit Surveillance Systems
Car Video, PC Operating Systems
Vehicle Navigation Systems Supporting Display
Can Also be Applied for Industrial Automation
Medical Machine Equipments
Electric Power
Petrification
Monitor
Navigation
POS, ATM and Instrumentation Display Systems
