| Prod Model: |
OFM-801 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Contrast Ratio: |
500:1 |
| Backlight: |
LED Backlight |
| Brightness: |
250CD/M2 |
| Interface Port: |
VGA,BNC |
| Touch Screen: |
4-Wire Touch Panel |
| Touch Interface: |
USB |
| Application: |
Graphic Design |
| Aspect Ratio: |
4:3 |
| Feature: |
LED Backlight Display |
| Type: |
TFT |
| Widescreen: |
Not Widescreen |
| Response Time: |
10ms |
| 3D: |
Not 3D |
| Interface Type: |
VGA |
| Screen Size: |
8 Inch |
| Optimum Resolution: |
800X600 |
Product Description

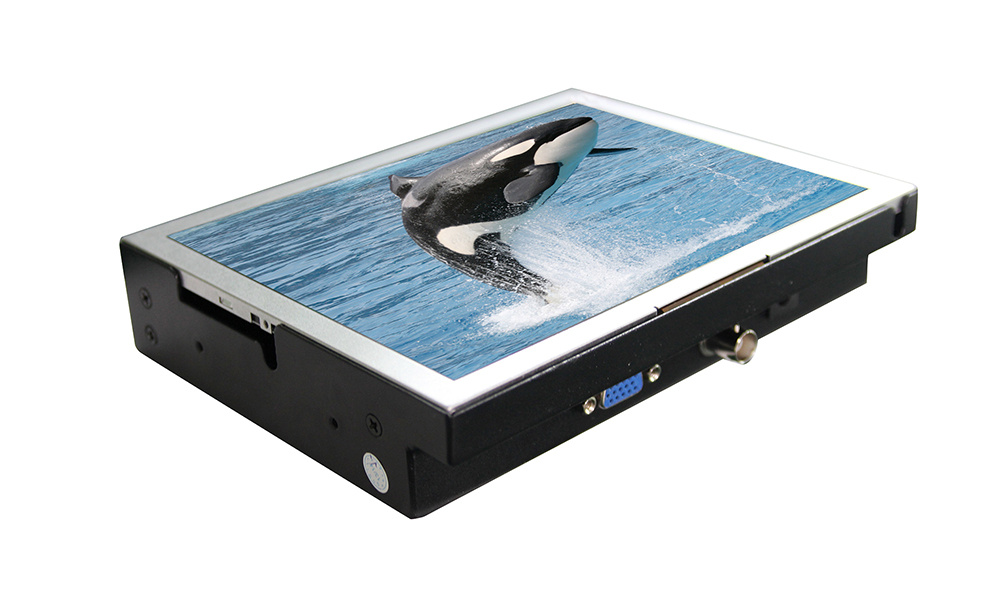

8 inch open frame monitor with bezel BNC/VGA, 4-wire Touch Panel
Feature Descriptions:
1. Various of Sizes range from 5" to 82"( such as 5", 7", 8", 10.4", 12.1", 14, 15", 17", 19" etc. )
2. Optional touch screen: 4-wire/5-wire Resistive, Infrared, SAW, Capacitive, with USB or RS232 touch screen interface.
3. With CE, RoHs, FCC, ISO 9001 approved
4. Optional interface type: D-Sub, DVI, HDMI, RS232C, USB
5. Wide range temperature and humidity from -20 to 80 degree
6. Color of 16.7M make image more natural, fine and smooth.
7. Customized service is available
8. Long life span. Support 24hours all day and 365 days continuous heavy burden work
9. Applicable to ATM, kiosk, transportation, automatic vending machine, POS, gaming machine, medical device, etc, industrial areas
| Specification |
| 8"Touch Open Frame Monitor |
| Mode Name | OFM-801T |
| Screen Size | 8 ″ |
| Active Display Area (mm) | 162mm(W)×121.5mm(H) |
| Display Mode | 4:3 |
| LCD Type | TFT-LCD |
| Resolution | 800×600 |
| Display Color | 16.7M |
| Pixel Pitch(mm) | 0.0675(H)×0.2025(V) |
| Brightness(nits) | 250cd/ m2 |
| Contrast Ratio | 500:1 |
| Viewing Angle | 140(H) /120(V) |
| Response Time | 10ms |
| Backlight | LED backlight |

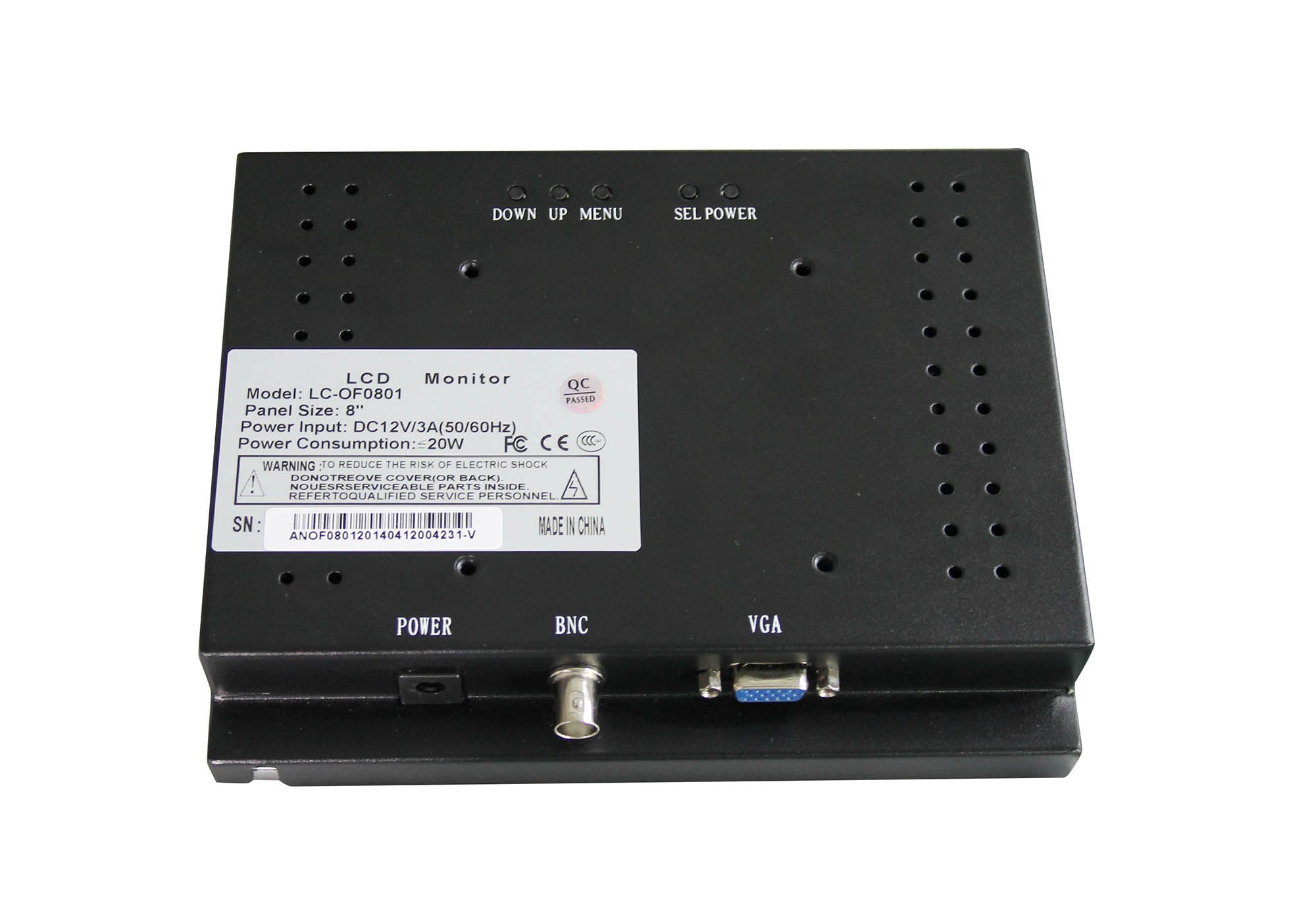

| Interface | D-Sub15 pin(VGA),BNC |
| Power | DC12V 2A 50HZ/60HZ |
| Power Consumption | ≤10W (Max) |
| Plug & Play | DDC 1/2B |
| OSD Control | Auto adjust, Brightness, Contrast, Hori. / Vert. Position, Clock, phase, Color, Language.. |
| MENU | Chinese/English(other languages supported) |
| Mount Way |
| Mounting | VESA 75mm/100mm |
| Touch Type |
| TouchScreen Type | Resistive(4-wire/5-wire) |
| Optional Touch Type | SAW, IR, Capacitive |
| TouchScreen interface | Serial (RS232) or USB(B) |
| Certificate Approval | CE,RoHS,CCC,FCC,ISO9001 |
| Warranty | 1.5 years |
| Application: |
| ATM/ Kiosk/Transportation/ Industrial Automation/Medical Treatment |
