| Prod Model: |
8-OFM9 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Brightness: |
250CD/M2 |
| Backlight: |
LED |
| Contrast Ratio: |
500:1 |
| Touch Screen: |
4-Wire/5-Wire Touch Panel |
| Resolution: |
800X480 |
| Aspect Ratio: |
16:9 |
| Usage: |
Monitor LCM |
| Digital LCD Module Type: |
Timing Module |
| Touch Screen Type: |
Resistive |
| Type: |
Color |
| Response Time: |
8ms |
| Viewing Angle: |
TN＋FILM |
| Display Technology: |
TFT |
| DOT-Matrix Graphic LCD Module Type: |
Row/Column-Driven Control Type |
| LCD Drive Mode: |
Multiplex Drive LCD Module |
| Customized: |
Customized |
Product Description
Features Highlights:
1. 8" LCD with resolution 800 x 480
2. Green LED-backlit panel technology
3. Easy to Mount Open Frame,Rugged construction against external impact, metal chassis
4. VESA Mounting Hole Pattern
5. OSD buttons can prevent unnecessary setting changes
6. Standard VGA Input (Optional for DVI. HDMI, AV)
7. Complete custom design/solution

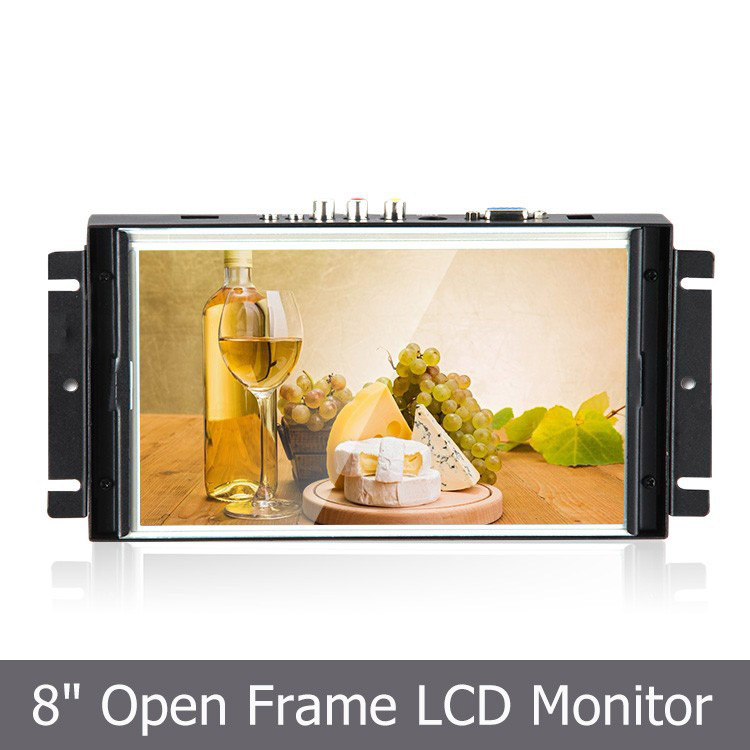

Display | Description | 8" TFT LCD Open Frame Monitor (touchscreen optional) |
| Model | 8-OFM9 |
| Touch Screen | 4-Wire Resistive Touch(5-Wire for Optional) |
| Touch Interface | USB (RS232 for Optional) |
| Resolution | 800x480 pixels (up to1920×1440) |
| Dot pitch | 0.0736(W) X 0.2070(H) mm |
| Aspect ratio | 16:9 |
| Brightness | 250cd/m² |
| Contrast | 500:1 |
| Viewing Angle | 70°/70°(L/R) 50°/70°U/D |
| Backlight | LED |
| Input |
| HDMI,DVI,VGA,YPbPr,Video,Audio,Earphone jack,USB for touch |
| Audio out,Audio in,HDMI,VGA,AV1,AV2 |
| VGA, S-video,Video,Audio R/L in,Audio in,Audio out,USB for touch |
| Output | Audio | 1 |
| Power | Power Consumption | ≤6W |
| Input Voltage | DC12V±15% |
| Environment | Working Temperature | -20ºC~60ºC |
| Storage Temperature | -30ºC~70ºC |
| Dimension | Unit Size | 245.7L × 120W × 31H (mm) |
| Unit Weight | 1200g |
Application:
Mainly Used in Closed-Circuit Surveillance Systems
Car Video, PC Operating Systems
Vehicle Navigation Systems Supporting Display
Can Also be Applied for Industrial Automation
Medical Machine Equipments
Electric Power
Petrification
Marline and Military
Navigation
POS, ATM and Instrumentation Display Systems.
Accessory | Optional Accessory | Packing |
| Home AC Adapter | HDMI cable | Box size | 35x20.5x7.2CM |
| Remote Controller |
| Per box G.W. | 3kgs |
| Touch Drive Disc(for touch) |
| Per Carton | 10pcs |
| Touch Pen(for touch) |
| Carton Size | 48x44x36CM |
| VGA Cable |
| N.W. | 18kgs/carton |
| USB cable(for touch) |
| G.W. | 19kgs/carton |
Engineered Solutions:
As display technologies evolve, so do our customer's imaginations. AUKA continues to engineering solutions to meet the diverse needs of the display marketplace. Whether your application is for a kiosk, CRT replacement, HMI, POS, Public Information Display or Digital Signage, this is the simple all-in-one solution for you. Easily integrated, we combine performance and quality with the versatility of an open frame chassis mountable product. Select from a wide variety of optional touch screens, protective glass, films or privacy shields.AUKA custom designs and builds for OEM's, providing custom enclosures, private label products, display selection assistance, special power requirements and customized warranty and service programs.
