| Prod Model: |
8-OFM3 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Brightness: |
250CD/M2 |
| Backlight: |
LED |
| Contrast Ratio: |
500:1 |
| Touch Screen: |
4-Wire Touch Panel |
| Touch Interface: |
USB |
| Application: |
Graphic Design |
| Aspect Ratio: |
4:3 |
| Feature: |
With Remote Control |
| Type: |
TFT |
| Widescreen: |
Widescreen |
| Response Time: |
6ms |
| 3D: |
Not 3D |
| Interface Type: |
VGA |
| Screen Size: |
8 Inch |
| Optimum Resolution: |
800X600 |
Product Description

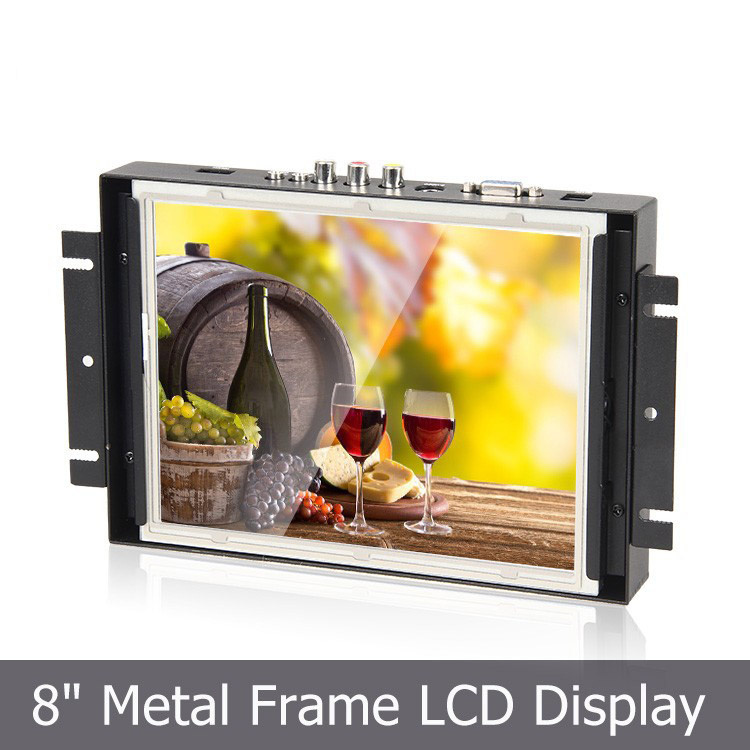

AUKA's Open Frame LCD display is designed for commercial and industrial applications , high brightness for sunlight readable application. Features wide operating temperature, high brightness, touch screen capable, and customized mechanical design; fulfill the demand for extreme environments. It offers the best visibility, performance and cost effective value. The high level of brightness together with fast response time and LED backlight technology, the monitor brings remarkable display quality. And guaranteeing product life cycle longevity, stability, and reliability.
Perfectly suitable for kiosks, ATM, POS, marline, military, medical, transportation, Avionics, industrial automation, gaming, digital entertainment display and outdoor application.
Display | Description | 8" TFT LCD Open Frame Monitor (touchscreen optional) |
| Model | 8-OFM3 |
| Touch Screen | 4-Wire Resistive Touch(5-Wire for Optional) |
| Touch Interface | USB (RS232 for Optional) |
| Resolution | 800x600 pixels (up to1920×1440) |
| Dot pitch | 0.0675(W)X0.2025(H) mm |
| Aspect ratio | 4:3 |
| Brightness | 250cd/m² |
| Contrast | 500:1 |
| Viewing Angle | 70°/70°(L/R) 50°/70°(U/D) |
| Backlight | LED |
| Input |
| HDMI,DVI,VGA,YPbPr,Video,Audio,Earphone jack,USB for touch |
| Audio out,Audio in,HDMI,VGA,AV1,AV2 |
| VGA, S-video,Video,Audio R/L in,Audio in,Audio out,USB for touch |
| Output | Audio | 1 |
| Power | Power Consumption | ≤6W |
| Input Voltage | DC12V±15% |
| Environment | Working Temperature | -20ºC~60ºC |
| Storage Temperature | -30ºC~70ºC |
| Dimension | Unit Size | 237L×145W×31H (mm) |
| Unit Weight | 1300g |
Applications:
Mainly Used in Closed-Circuit Surveillance Systems
Car Video, PC Operating Systems
Vehicle Navigation Systems Supporting Display
Can Also be Applied for Industrial Automation
Medical Machine Equipments
Electric Power
Petrification
Marline and Military
Navigation
POS, ATM and Instrumentation Display Systems.
Accessory | Optional Accessory | Packing |
| Home AC Adapter | HDMI cable | Box size | 35x20.5x7.2CM |
| Remote Controller |
| Per box G.W. | 3kgs |
| Touch Drive Disc(for touch) |
| Per Carton | 10pcs |
| Touch Pen(for touch) |
| Carton Size | 48x44x36CM |
| VGA Cable |
| N.W. | 18kgs/carton |
| USB cable(for touch) |
| G.W. | 19kgs/carton |
Auka Industrial Limited is a high-tech enterprise specializing in TFT LCD Monitor, Touch Screen Monitor, Camera Field Monitor, Embedded Computer, Industrial Panel PC, CCTV Monitor, USB Touch Monitor, Open Frame Monitor, LCD SKD Module, All in one POS, Transparent LCD, Sunlight Readable Monitor, FPV Monitor, Police Body Worn Camera and car DVR Recorder. And are widely used in the fields of security monitoring, traffic control center, broadcasting system, military, city square, shopping mall, bank, school and hospital, etc. Our monitors can be applied in devices like ATM, Self-service kiosk, Transportation, Automatic Vending Machine, Gaming Machine, POS, Medical Treatment, CNC Machine etc. We have set up a large customer network and gained praise since establishment in 2005 for preciseness, cordiality, powerful technology support and perfect market understanding. A factory with more than 8, 000 sq. M. As well as a team of well-trained employees. Our department of R&D, production, sales and after-service strictly abide by ISO9001 quality control system. Certified by CE, FCC, RoHS, CCC and E-MARK standard, the performance of our products meets or exceeds the advanced world standard. And our own-designed LCD Touch Monitor have became popular among many long- term customers and partners. Our products have been exported to America, Europe, Middle East, Australia and Southeast Asia.
We have yeares experience in OEM of VGA Touch screen, TFT LCD Module, Embedded Computer.
Welcome to our company for any OEM / ODM cooperation! Let' S go ahead hand in hand to embrace our prosperous tomorrow!
Professional, fast, and wonderful after-sales service is our mission. Customers' satisfaction is our final aim.
