| Prod Model: |
FA1042T |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Brightness: |
250CD/M2 |
| Contrast Ratio: |
500:1 |
| Backlight: |
LED |
| Touch Screen: |
4-Wire Touch Panel |
| Touch Interface: |
USB |
| Application: |
Taxi |
| Aspect Ratio: |
4:3 |
| Feature: |
With Remote Control |
| Type: |
TFT |
| Widescreen: |
Not Widescreen |
| Response Time: |
10ms |
| 3D: |
Not 3D |
| Interface Type: |
HDMI |
| Screen Size: |
10.4 Inch |
| Optimum Resolution: |
800X600 |
Product Description

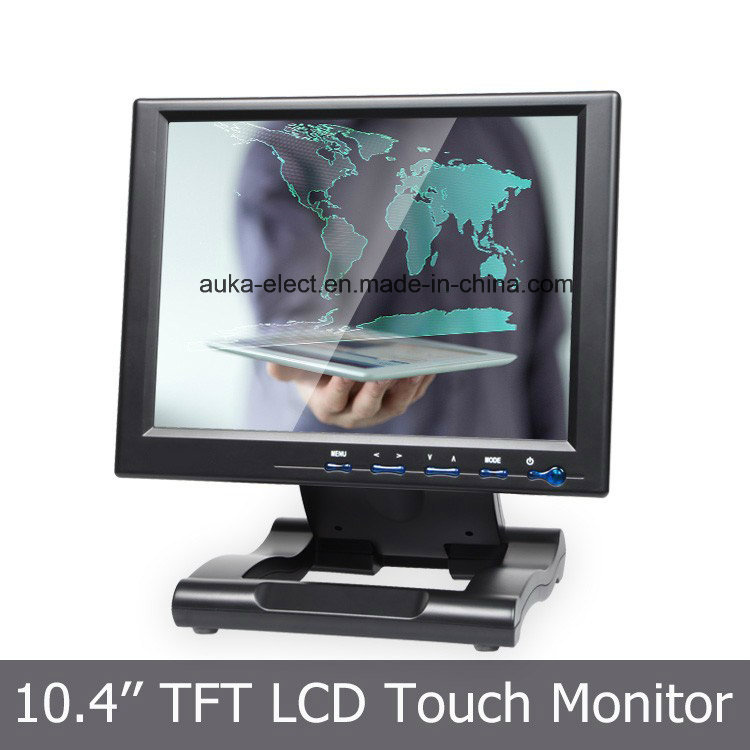

FA1042T is a 10.4 inch TFT LCD monitor.It uses a high quality new LCD Panel,with 800X600 resolution, 250cd/m² high brightness and 70°/70°(L/R) 50°/60°(U/D) wide angle, which can display clear images.
It uses LED backlight,which has advantage like Energy-Saving, Long life and environmental protection.
| Description | 10.4" TFT LCD Touch Monitor w/ HDMI Input |
| Model | FA1042T |
| Brightness | 250cd/m² |
| Touch Screen | 4-Wire Resistive Touch(5-Wire for Optional) |
| Touch Interface | USB (RS232 for Optional) |
| Dot Resolution | 800*600 pixels (max to1920*1440) |
| Aspect Ratio | 4:3 |
| Contrast Ratio | 500:1 |
| Backlight | LED |
| Viewing Angle | 70°/70°(L/R) 50°/60°U/D |
| Input Signal | VGA,AV1,AV2,Audio,YPbPr,HDMI,DVI |
| HDMI Format | 480i,480p,576i,576p,720p,1080i,1080p(50/60Hz) |
| Mounting Process | Foldable Stand Bracket and VESA 75*75mm |
| Input Voltage | DC9-15V |
| Power Consumption | ≤7W |
| workingTemperature | -20ºC~60ºC |
| storage Temperature | -30ºC~70ºC |
| Unit Size | 252L×216W×73H mm(folding) |
| 252L×185W×267H mm(unfolding) |
| Unit Weight | 1520g |
Abundant Interface:
Even small size as 10.4 inch,FA1042T also has VGA,AV1,AV2,Audio,YPbPr,HDMI,DVI input,
which can support many devices like PC, DVR, Camera, DVD,HD Video Player and so on.
>On HDMI Mode,using under scan function,it is possible to display Full HD videos.

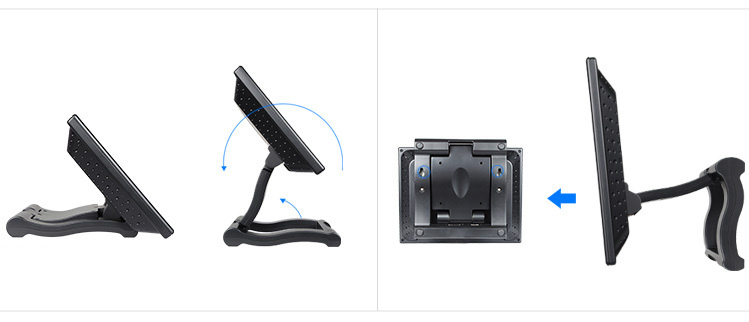

Folding Bracket
Possible to stretch & folding
Wall Mount possible
Support System for Touch:
MAC
Vista
Linux
Win CE
MS-DOS
Window XP
Window NT4
Window 9X/ME
Application:
This product employs new integrate circuits and high quality TFT LCD Screen. Advanced advantage is low power consumption, emits no radiation, and other advantage characteristics. This product is shaped with modern style and is easy to be carried with. The color TFT LCD is the most suitable display for VGA,VCD, DVD and GPS system for motorcars and ships. It also can be used in the office, in flat, at home, ATM, Automation, Gaming, Kiosk, Transportation, Military,Oil Gas & Energy,Retail and also in other suitable position. You will certainly benefit from this monitor in lots of ways,to some of them:convenience,safety,space-saving.
Auka Industrial Limited is a high-tech enterprise specializing in TFT LCD Monitor, Touch Screen Monitor, Camera Field Monitor, Embedded Computer, Industrial Panel PC, CCTV Monitor, USB Touch Monitor, Open Frame Monitor, LCD SKD Module, All in one POS, Transparent LCD, Sunlight Readable Monitor, FPV Monitor, Police Body Worn Camera and car DVR Recorder. And are widely used in the fields of security monitoring, traffic control center, broadcasting system, military, city square, shopping mall, bank, school and hospital, etc. Our monitors can be applied in devices like ATM, Self-service kiosk, Transportation, Automatic Vending Machine, Gaming Machine, POS, Medical Treatment, CNC Machine etc. We have set up a large customer network and gained praise since establishment in 2005 for preciseness, cordiality, powerful technology support and perfect market understanding. A factory with more than 8, 000 sq. M. As well as a team of well-trained employees. Our department of R&D, production, sales and after-service strictly abide by ISO9001 quality control system. Certified by CE, FCC, RoHS, CCC and E-MARK standard, the performance of our products meets or exceeds the advanced world standard. And our own-designed LCD Touch Monitor have became popular among many long- term customers and partners. Our products have been exported to America, Europe, Middle East, Australia and Southeast Asia.
We have yeares experience in OEM of VGA Touch screen, TFT LCD Module, Embedded Computer.
Welcome to our company for any OEM / ODM cooperation! Let' S go ahead hand in hand to embrace our prosperous tomorrow!
Professional, fast, and wonderful after-sales service is our mission. Customers' satisfaction is our final aim.
