| Prod Model: |
101-CT |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Resolution: |
1024X600(1366X768 Optional) |
| Backlight: |
LED |
| Contrast Ratio: |
500:1 |
| Brightness: |
450CD/M2 (250CD/M 2 for 1366X 768) |
| Viewing Angle: |
70°/70°(L/R), 50°/70°(U/D) |
| Support System: |
Win 7/ Win 8 |
| Max To: |
10 Point |
| Input Signal: |
VGA,Video1,Video2,Audio,HDMI,YPbPr |
| HDMI Format: |
480I,480p,576I,576p,720p,1080I,1080P(50/60Hz) |
| Input Voltage: |
DC 9-15V |
| Screen Type: |
Capacitive |
Product Description

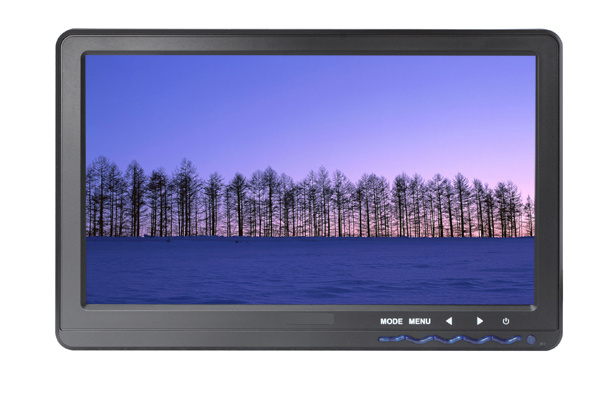

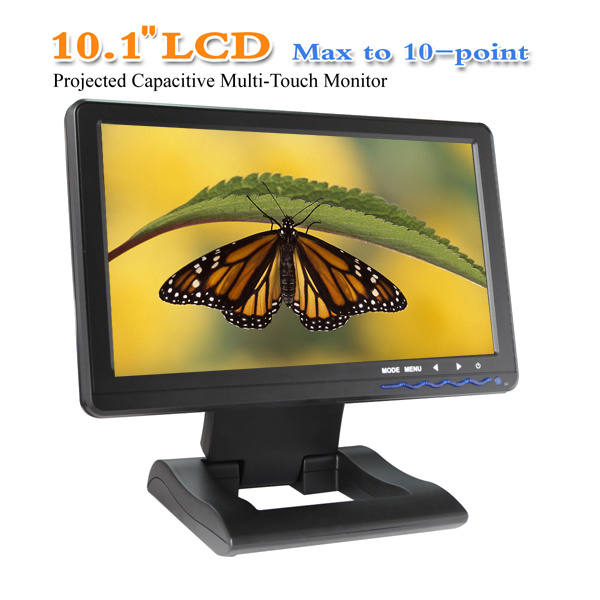

HDMI/AV/VGA Input Capacitive 10.1 Inch LCD Touch Screen
Advanced Features:
1. Multi-Touch Capacitive: Support Max to 10 point, allow people flip and zoom in/out picture via fingers.
2. Optical Characteristics ≥ 80%
3. Support System: WIN 7 / WIN 8
4. Tapping Durability: ≥ 1 millio times
5. Hardness: ≥ 3H
6. Touch Interfaces: USB
7. Inputs: AV1, AV2, VGA HDMI, YPbPr, Audio
| Model Number | 101-CT |
| Screen Size | 10.1 inch |
| Backlight | LED |
| Resolution | 1024x600( 1366x768 optional) |
| Contrast Ratio | 500:1 |
| Aspect Ratio | 16:9 |
| Brightness | 450cd/m 2 (250cd/m 2 for 1366x 768) |
| View Angle | 70°/70°(L/R), 50°/70°(U/D) |
| Optical characteristics | ≥ 80% |
| Support System | Win 7/ Win 8 |
| Tapping Durability | ≥ 1 million times |
| Hardness | ≥ 3H |
| Max to | 10 point |
| Input Voltage | DC 9-15V |
| Input Signal | VGA,Video1,Video2,Audio,HDMI,YPbPr |
| HDMI Format | 480i,480p,576i,576p,720p,1080i,1080p(50/60Hz) |

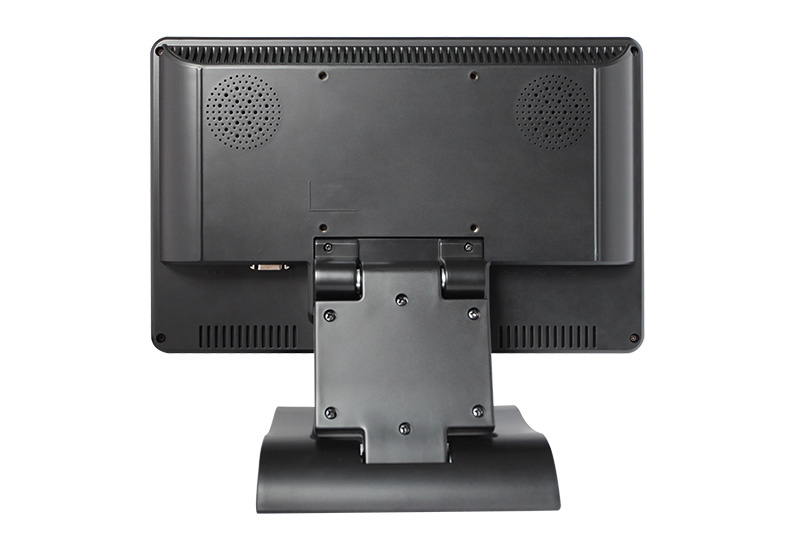

| Mounting Process | Foldable Stand Bracket and VESA 75*75mm |
| Power Consumption | ≤ 6W |
| Working Temperature | 0°c to 60 °c |
| Storage Temperature | -10 °c to 70 °c |
| Unit Size | 255L×163W×34H mm |
| Unit Weight | 1040g |
| Touch Interface | USB |
|
|
|
|
