| Prod Model: |
7-SKD |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Aspect Ratio: |
16:9 |
| Backlight: |
LED Backlight |
| Type: |
Color |
| Display Technology: |
TFT |
| Usage: |
TV-LCM |
| Viewing Angle: |
Wide |
Product Description
Application
Mainly Used in Closed-Circuit Surveillance Systems,
Car Video, PC Operating Systems,
Vehicle Navigation Systems Supporting Display,
Can Also be Applied for Industrial Automation,
Medical Machine Equipments,
Electric Power,
Petrification,
Monitor,
Navigation,
POS, ATM and Instrumentation Display Systems.
Display

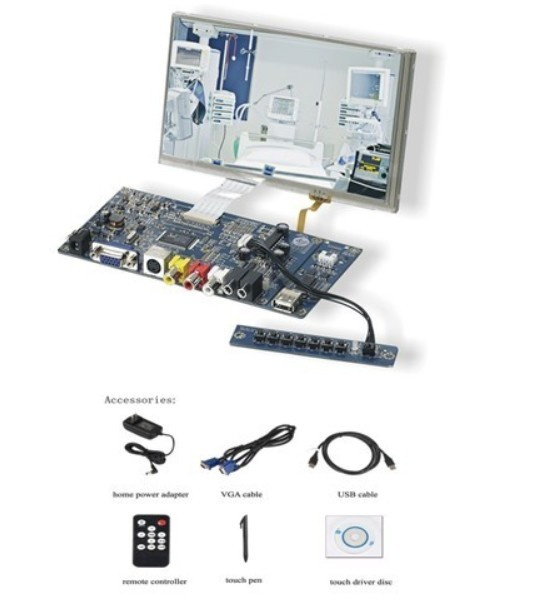

Desciption 7" LCD SKD Module for Industrial Application
Model: 7-SKD
Brightness: 300 cd/ m2
Touch Screen: 4&5 Wire Resistive Touch(optional)
Touch Interface: USB&RS232 (optional)
Dot Resolution: 800x480 pixels (up to1920× 1440)
Contrast Ratio: 500: 1
Aspect Ratio: 16: 9 (4: 3)
Backlight: LED
Dot pitch: 0.0635(W)*0.1905(H) mm
Viewing Angle: 70° /70° (L/R) 50° /70° (U/D)
Input
Signal: VGA, AV, Audio R. In&L. In, Audio in&out, S-video,
Power
Input Voltage: DC12V± 15%
Power Consumption: 6W
Environment
WorkTemperature: -20º C~60º C
Installation Method: SKD
Store Temperature: -30º C~70º C
Dimension
Screen Size: 165(L)× 104(W)× 5.5(H)mm
PCB Size: 167(L)× 86(W)mm
Unit Weight: 380g
|
Accessory |
Optional Accessory |
Packing |
|
Home AC Adapter |
HDMI cable |
Box size |
31.5*19.5*7CM |
|
Remote Controller |
|
Per box G.W. |
1.5kgs |
|
Touch Drive Disc(for touch) |
|
Per Carton |
10pcs |
|
Touch Pen(for touch) |
|
Carton Size |
47.7*43.2*33.2cm |
|
VGA cable |
|
N.W. |
15kgs/carton |
|
USB cable(for touch) |
|
G.W. |
16kgs/carton |
