| Prod Model: |
CA-1250 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Professional Amplifier |
| Usage: |
AV |
| Used For: |
Professional |
| Tube Type: |
Transistor Amplifier |
| Function: |
Post Amplifier |
| Element Number: |
Push-Pull Amplifier |
| Sound Channel: |
12channels |
| Output Number: |
6 Source |
| Voltage: |
AC220V or AC110V |
Product Description

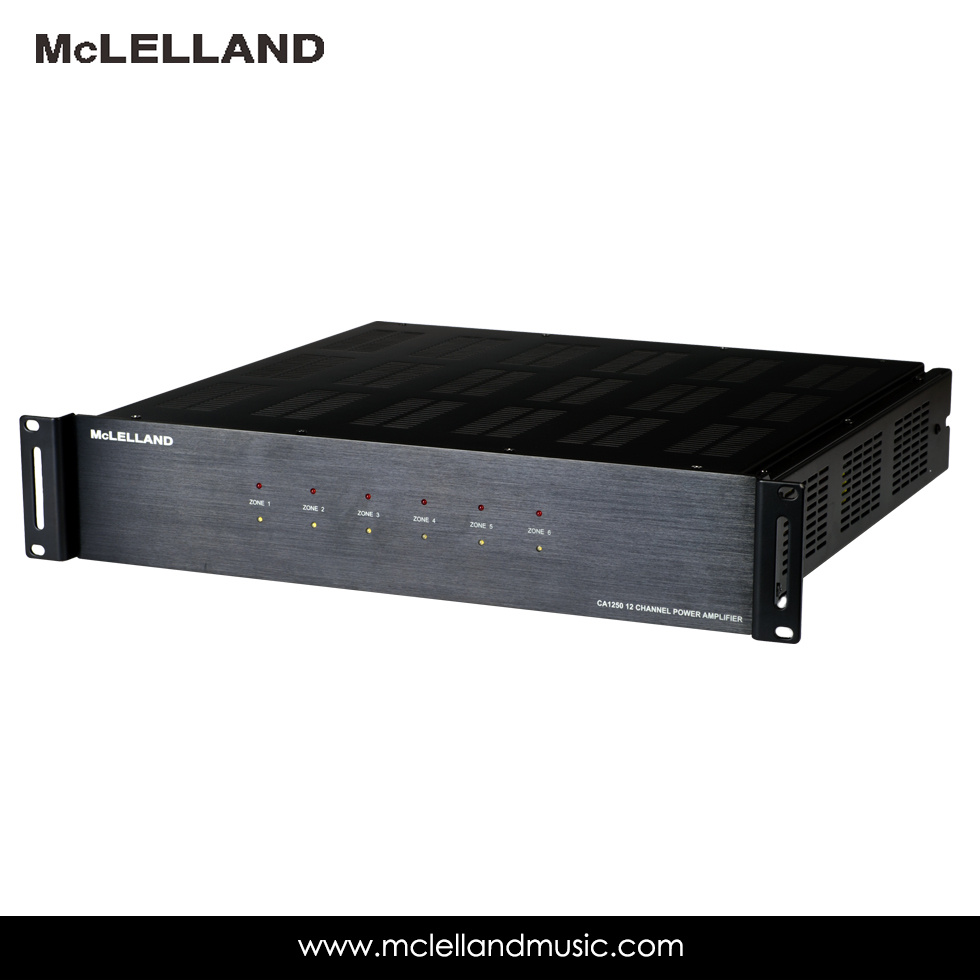

The CA-1250 is a flexible multi channel power amplifier which ideal for professional or P. A...It provides 6 stereo zones, 12 channels, by Class-D digital amplifiers, more efficient operation with higher power output delivering up to 50W output power at 4 ohms or 70V/ 100V. All zones can be set to stereo or bridge mode. The output power is up to 110W at bridge mode. Beside one RCA input, an auxiliary bus input is optional for every zone. The MAP-1250 offers plenty of powerful, clean sound and reliable performance, satisfies the most discerning audio and home theater enthusiasts, simplicity of user-friendly design-all at a price that's easy to live with.
Features & Specs:
High efficiency more than 85% (class D) amplification.
50W x 2 @ 4 Ohm output power per zone(25W x 2 @ 8 Ohm).
4 Ohms / 70 V or 100V output selectable.
Stereo/ Bridge mono output.
Auto power off function dedicated to disable the amplifier when there is no signal from any source.
Wired DC Remote volume for each Zone.
Input level limit.
Power Supply: AC 115V/60 Hz or AC 230V/50Hz, can be switched.
LEDs for 6 ones Power On and Clip.
Dimension: W 430 x H 88 x D 416 mm.
Spec.:
S/N: >85dB A WTD
THD: <0.1%
Frequency Response: 60Hz20K Hz
Input Impedance: >47K Ohm
Input Sensitivity: 250 mv
Output connection: Terminal Block:
Mansion Industry Co., Ltd. is a professional audio manufacturer, which includes R&D, design, sales and services department, was established in 1985, at the following address 5F, NO. 6, Szu-Wei Lane, Cheng Road, Hsin-Tien City, Taipei, Taiwan, R. O. C.
Our main products are Equalizers, Crossovers, Power Amplifiers, Video Signal Solution, MIDI Controller, USB/Firewire Audio Interface, Mixers, Digital Effect Processors, Speaker, Microphones and Home Installation Audio products.
We promote our own products all over the world, also we welcome the OEM cooperation. To keep the quality be perfect and satisfy customer's requirements is our company's top target.
At present, we own more than 300 employees. Among them, engineers and technical personnel fifty six people. The high-level employees group and advanced technique help to produce the products with competitive.
Mansion would like to set up a faithful partner relationship with every friend and provide the sincere service. We have been move a new factory about 16000 SQM located within the town of Shenzhen.
