Product Description

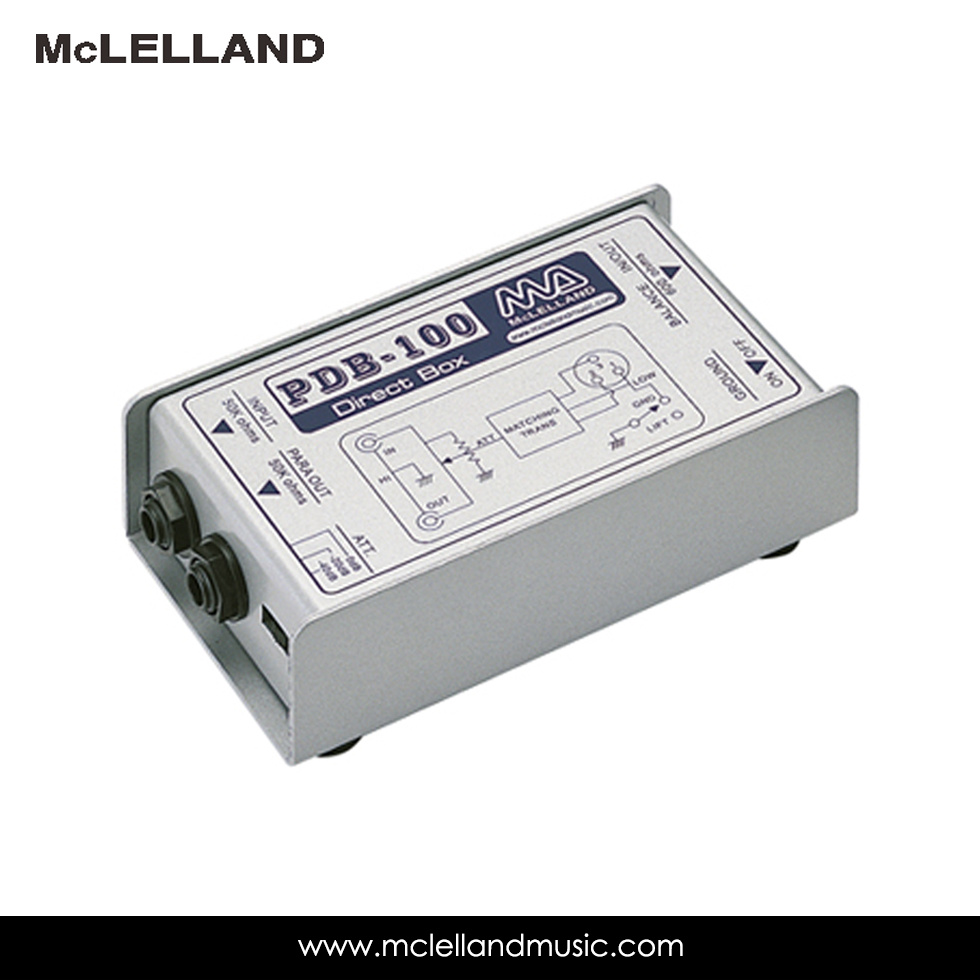

Passive Direct Box(PDB-100)
The PDB-100 is a passive direct box and durable. This unit can be used as the connection of the outputs of music instruments (or other applications) to the balanced inputs of mixer consoles. Besides, the PDB-100 allows connection of a music source to an instrument amplifier while patching it to a mixer at the same time via the PDB-100 Direct Box.
Specification:
3-Fold Attenuation Switch: 0dB/ -20dB / -40dB
Frequency Range: 15Hz ~ 30 KHz, +/- 0dB
Inputs: 50KÙ 6.3mm jack (Unbalanced), XLR (Balance)
Output: 600K Ù 6.3mm jack (Unbalanced), XLR (Balance)
Dimension: 74x 45x 130 mm
Weight: 650g
