| Prod Model: |
MAP-800HD |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Home Amplifier |
| Used For: |
Civilian |
| Tube Type: |
IC Amplifier |
| Function: |
Amplifier Combined |
| Output Number: |
4 |
| Element Number: |
Push-Pull Amplifier |
| Conductive Mode: |
D |
| Usage: |
Home Installation |
| Sound Channel: |
6 Source |
| Voltage: |
AC115V/60Hz,230V/50Hz |
Product Description

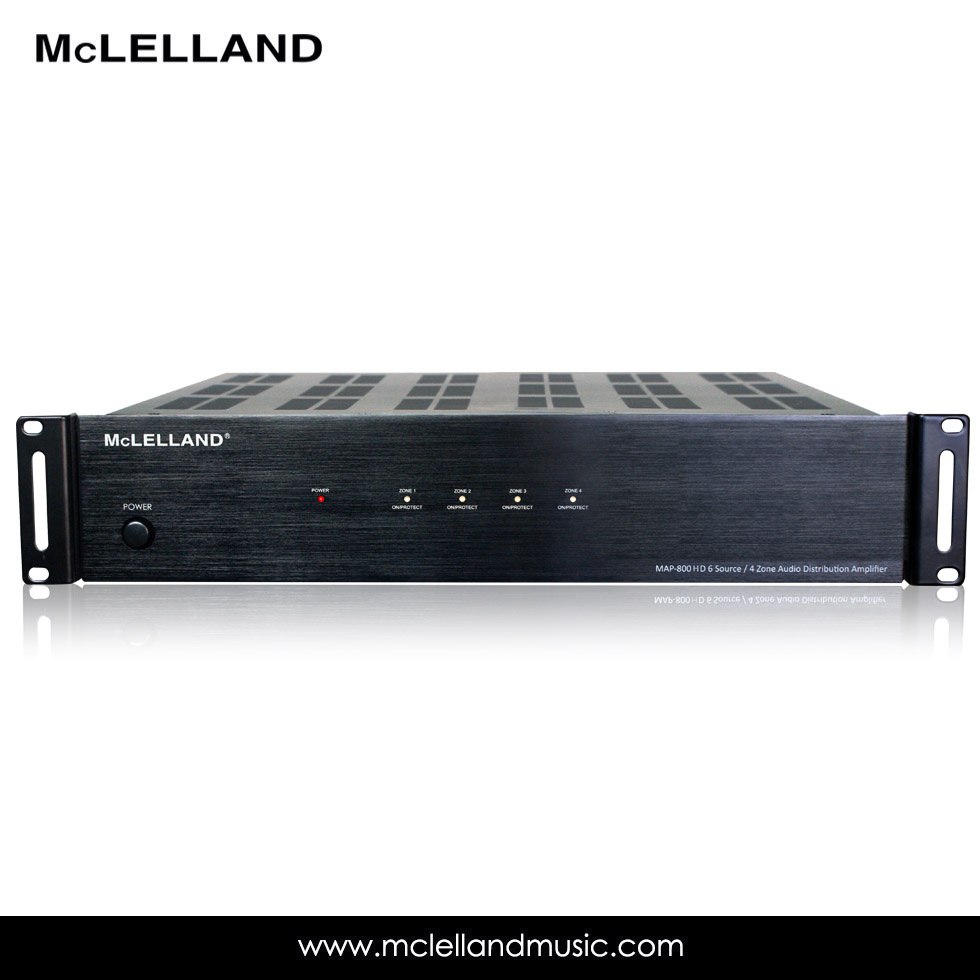

The MAP-800HD home Audio system is a 4 zone version of the MAP-1200HD amplifier. It also provides up to 50W
power by class D amplifier and distribute at most to 12 zones which all can be controlled by packaged keypads and / or IR remote controller.
Feature:
*High efficiency more than 85%(class D) amplification.
*50Wx2@4Ohm(
25Wx2@8Ohm) One Zone.
*Stereo/Bridge mono output.
*Built-in IR receiver&IR remote controller for source select/volume/treble/bass.
*RS-232 port allows 2-way communication with the Home Automation System.
*Expandable up to 12 zones by additional units.
*4Keypads controller,1kit RJ-45 connection hub package.
*Built in IR Emitters.
Specification:
S/N:>85dBA WTD
THD:<0.1%
Frequency Response:20Hz-20KHz
Input Impedance:>47K Ohm
Input Sensitivity : 250mV
Power Supply:AC115V/60Hz, 230V/50Hz
Output Connection:Terminal Block
Dimension:430W x 89H x 416D mm
