| Prod Model: |
MAP-1200HD |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| 12V DC Trigger Out To External Devices: |
RS-232 Por Allows 2-Way Communication |
| 6 LEDs For 6 Zoes Power On And Standby: |
50W*2@4ohm, 25W*2@8ohm |
| Output Connection With Terminal Block: |
Input Sensitivity 250mv |
| 12V DC Mute Trigger In Fro External Devi: |
Class D Amplification |
| Tube Type: |
IC Amplifier |
| Function: |
Amplifier Combined |
| Conductive Mode: |
D |
| Usage: |
Home Audio System,Commerical,Civilian |
| Used For: |
Home Audio System, Commerical, Civilian |
| Sound Channel: |
Expandable up to 18zones by Additional Units |
| Output Number: |
Expandable up to 18zones by Additional Units |
| Voltage: |
Switchable AC 115V/60Hz or 230/50Hz |
| Element Number: |
Stereo/Bridge Mono Output |
Product Description

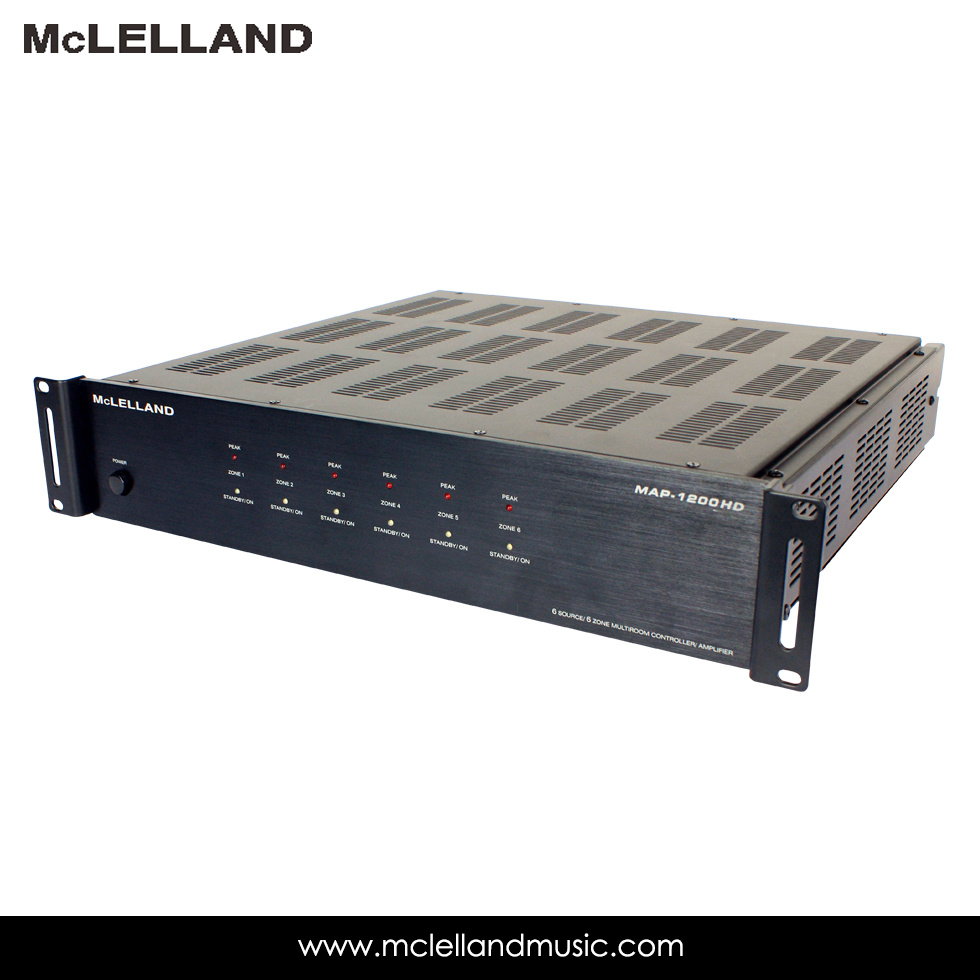

6 Source/Zone Audio Distribution Amplifier
Feature:
* High efficiency more than 85% (class D) amplification
* 25W x 2 @ 8 Ohm output power per zone (50W x 2 @ 4 Ohm)
* Stereo/Bridge mono output:
* Built-in IR receiver & IR remote controller for source select/volume/ treble/bass
* RS-232 port allows 2-way communication with the Home Automation system
* Expandable up to 18 zones by additional units
* 6 LEDs for 6 ones Power On and Standby
* 6 Keypads controller, 1 kit RJ-45 connection hub package
* Built in IR Emitters
S/N | >85dB A WTD |
| THD | <0.1% |
| Frequency Response | 20Hz-20KHz |
| Input Impedance | >47 K Ohm |
| Input Sensitivity | 250 mv |
| Power Supply | AC115V/60Hz, 230V/50Hz |
| Output Connection | Terminal Block |
| Dimension | 430W x 89H x 416D mm |
