| Prod Model: |
AVD-800P |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Maximum Expand System: 16*800p: |
8 RJ45 Connectors, Trigger on and External Mute |
| UTP Cat5 Transmission System: |
Video Camera Input Security Fuction |
| IR Remote Control With Keypad: |
10 Source Input |
| 2 Audio 4 Audio/Video And 4 Camera: |
RS232 |
| Tube Type: |
Transistor Amplifier |
| Function: |
Amplifier Combined |
| Output Number: |
8 |
| Conductive Mode: |
D |
| Usage: |
Home, Educational, Commercial |
| Used For: |
House Audio, Video Control Center, Commercial |
| Sound Channel: |
Expand to 16 Channels |
| Voltage: |
AC 115V 60Hz/230V 50Hz Can Be Switched |
| Element Number: |
Output Power: 20W 8 Ohms X 8zone |
Product Description

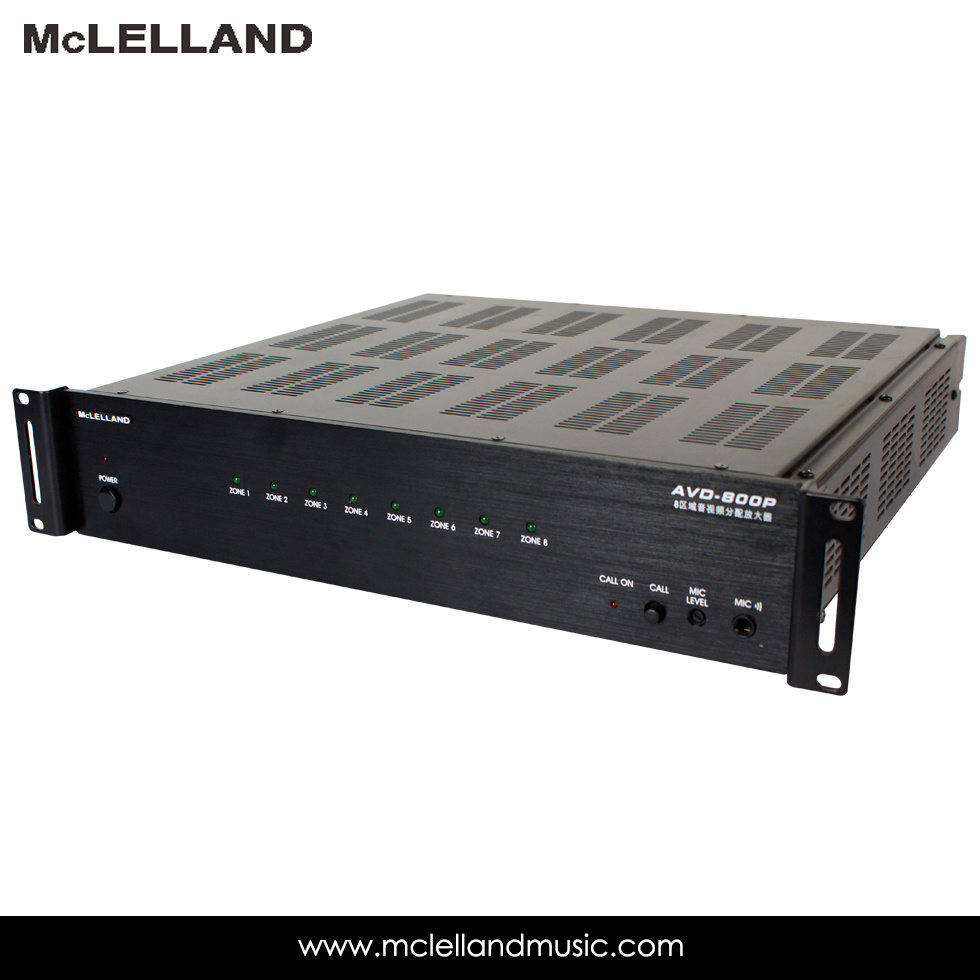

Mutil-room Audio/Video distribution Amplifier with 8 Sources's AVD-800P
Feature:
* Output Power: 20W 8 Ohms x 8 Zone (16 Channels)
* Phoenix Connectors: For audio signal outputs.
* UTP CAT5 Transmission System
* 8 RJ45 Connectors: For keypads including video signal output.
* 6 Stereo Source Inputs: 2 audio 4 video (or audio) and 4 camera module inputs are acceptable.
* Maximum Expand System: 16 x AVD-800P.
* Independent IR Emitter output for each zone.
* Trigger On and External Mute jack on rear panel.
* The Control of Keypad: Volume / Treble / Bass / Source
* The Control of IR Pad: Volume / Treble / Bass / Source / Mute / Balance
* DIP switch for AGC level and address select on rear panel.
* Power Supply: AC 115V 60 Hz / 230V 50 Hz, Can be switched.
* Dimension: D 413 x H 88 x W 427 mm.
