| Prod Model: |
JHD-AP012J-050200AB |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
58*37*32mm |
| Safety Approval: |
UL,cUL,FCC,PSE,Level VI |
| Dielectric: |
3000VAC |
| Mtbf: |
50000hours |
| Compatible Brand: |
Samsung |
| Type: |
Travel |
| Power Source: |
Electric |
| Quick Charging Function: |
Without Quick Charging Function |
| Over-Current Protection: |
With Over-Current Protection |
| Display: |
With Display |
| Color: |
White |
| Customized: |
Customized |
| Charger Cable Length: |
ODM |
| Socket Type: |
Japan |
Product Description

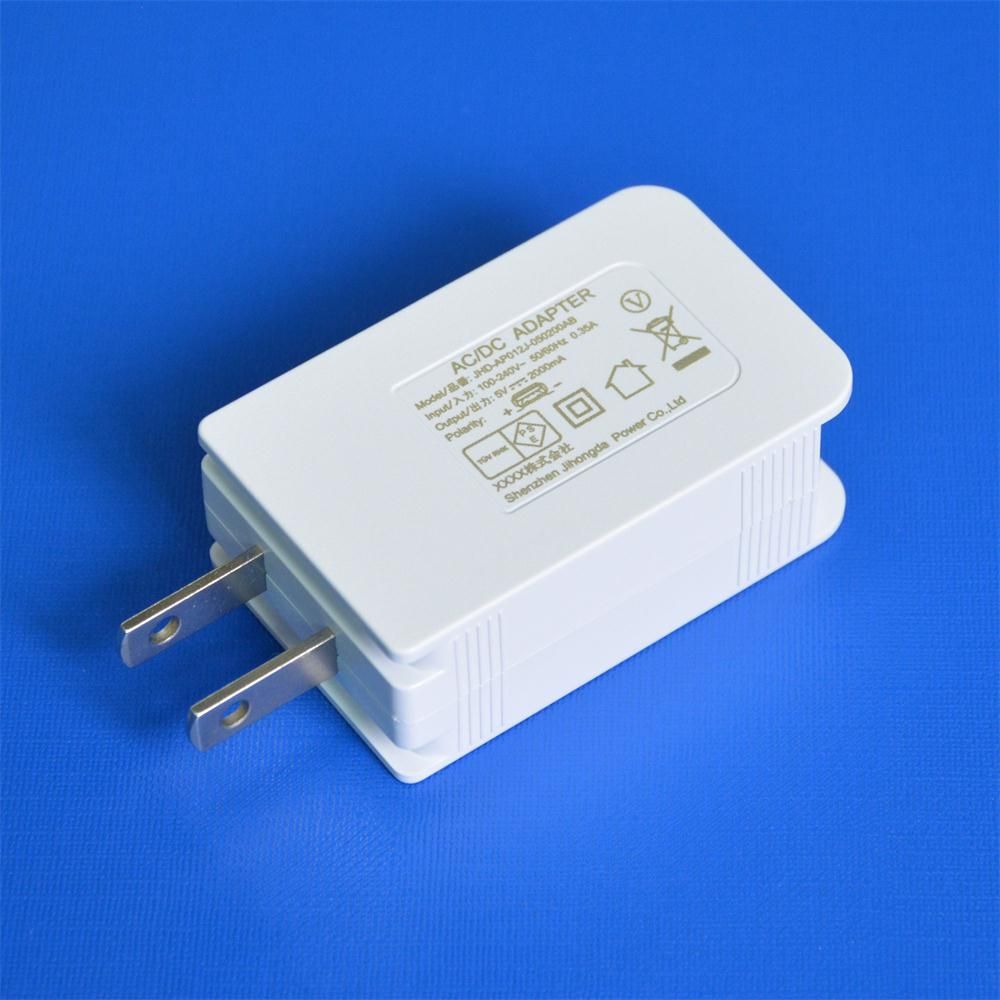

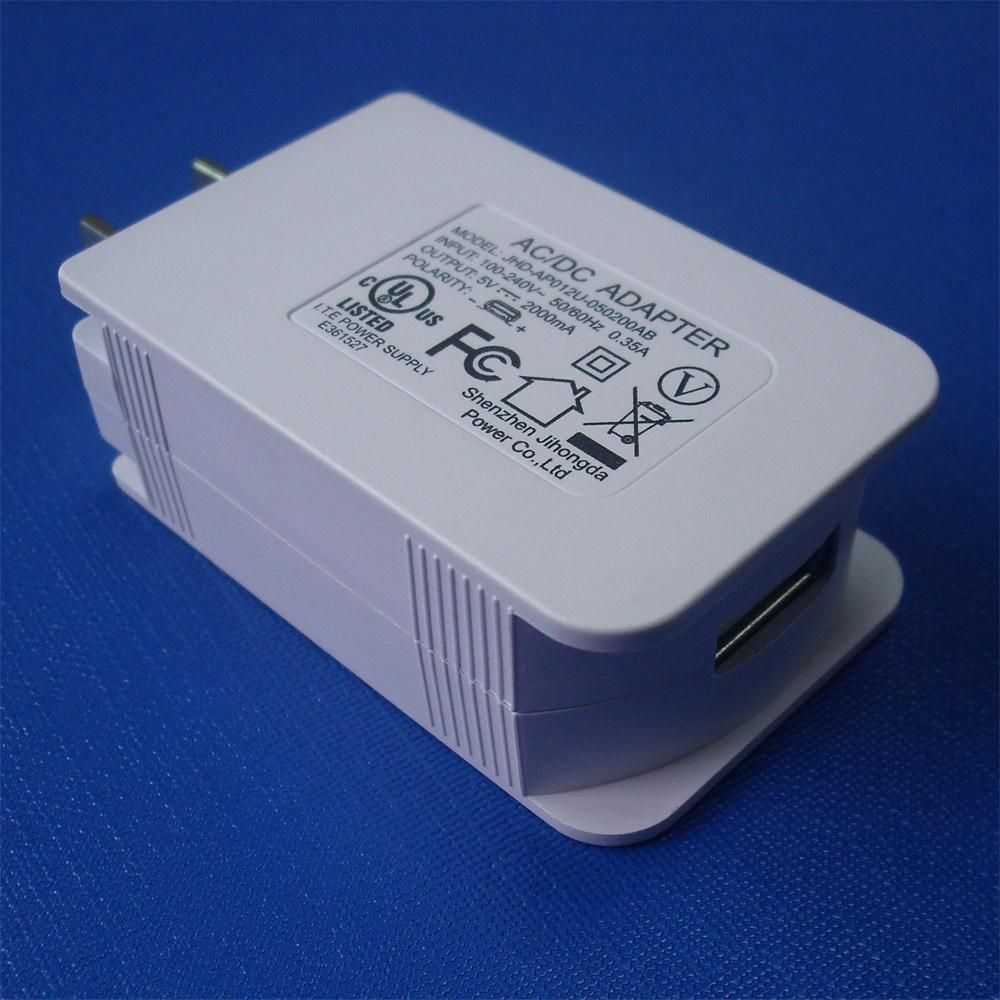

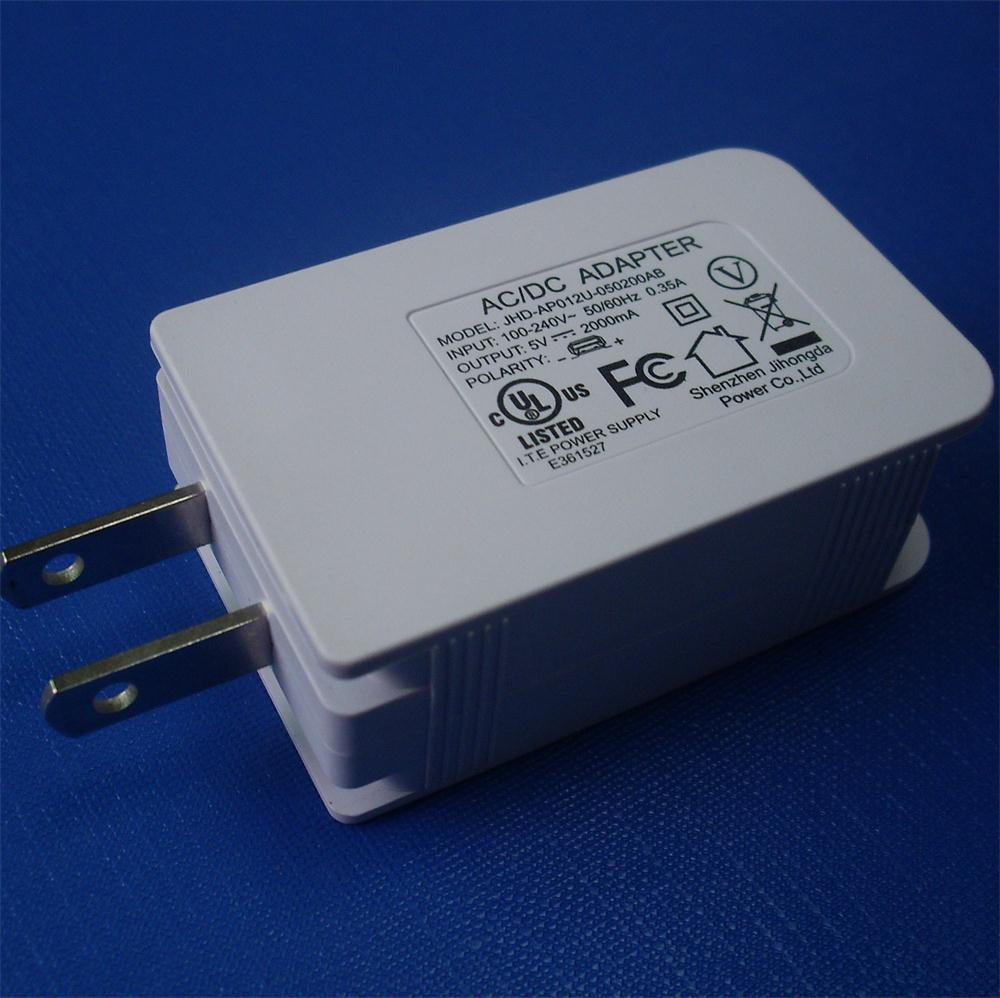

UL/FCC/PSE Approved 5V 2A USB Mobile Phone Chargers,Delivery Time 15 Days,Thin&small design for easier carrying,Three years warranty,Univer Input 100-240VAC,Modified and Custom Design Available,Output with Low Ripple Noise,Meet ROHS CEC
Features:
To provide wide AC voltage input of 90-264V AC
Protections: short-circuit/over current/over voltage
Comprehensive protection, which can effectively prevent the impact from 2.5kV lightning and AC surge
Electrical specifications:
Input voltage range: 90-264V AC
Input current: 500mA
Output voltage range: ±5%
Average efficiency: meets energy star level V
MTBF: 50,000 hours
Low standby power: 0.15W
Environmental parameters:
Operating temperature: 0-45ºC
Storage temperature: - 20-60ºC
Humidity: 5% to 95% non condensing
Safety approval: PSE(J60950-1),CCC (GB4943), UL60950, FCC,CE (EN60950),Level VI
Dimensions: 58mm (L)*37mm (W)*32.5mm (H)
Applications: mobile phone charger, tablet PC, wireless router, ITE equipment
| Model NO. | Output |
| JHD-AP012J-050200AB | 5V 2A |
| JHD-AP012J-050210AB | 5V 2.1A |
| JHD-AP012J-050150AB | 5V 1.5A |
Remark:
The above is JHD standard specification , customizing service is available.
If you have different requirement ,please feel free to contact us.
