| Prod Model: |
JHD-AP012E-050200AB |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Lead Time: |
15days |
| Size: |
55*37*32mm |
| Mtbf: |
5000hours |
| Dielectric: |
3000VAC |
| Compatible Brand: |
iPhone |
| Type: |
Travel |
| Power Source: |
Electric |
| Quick Charging Function: |
Without Quick Charging Function |
| Over-Current Protection: |
With Over-Current Protection |
| Display: |
With Display |
| Color: |
Black |
| Socket Type: |
For E.U. |
| Customized: |
Customized |
| Charger Cable Length: |
ODM |
Product Description

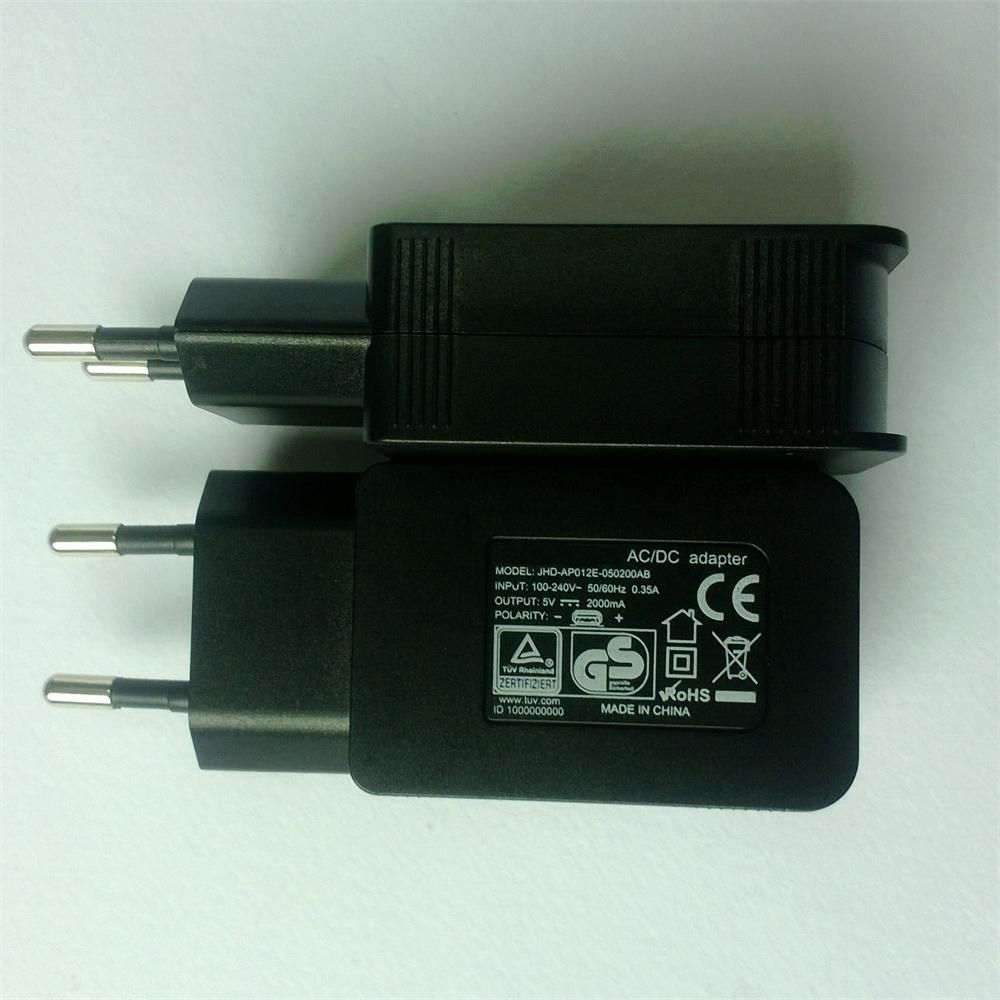

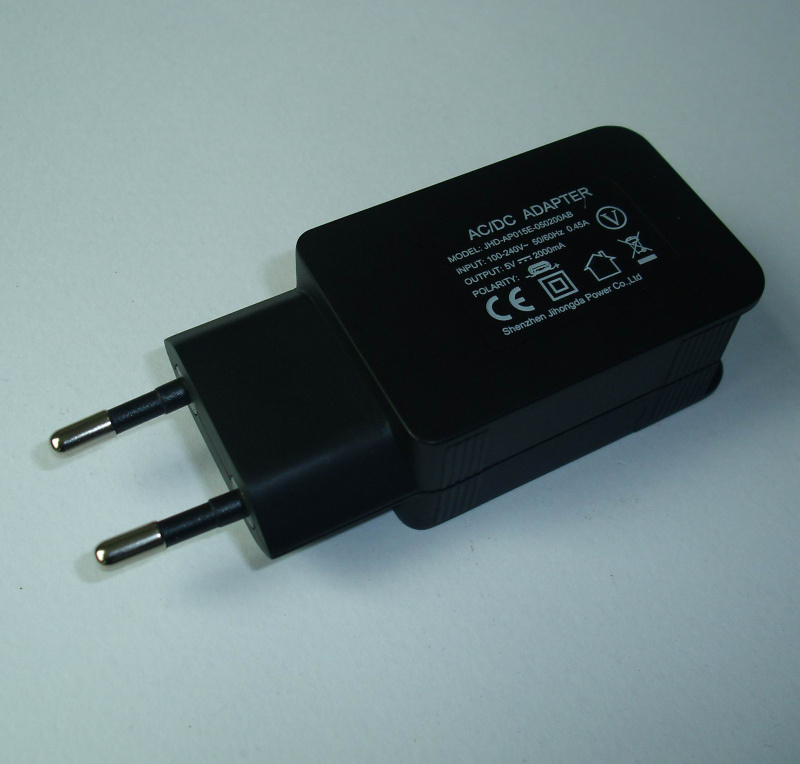

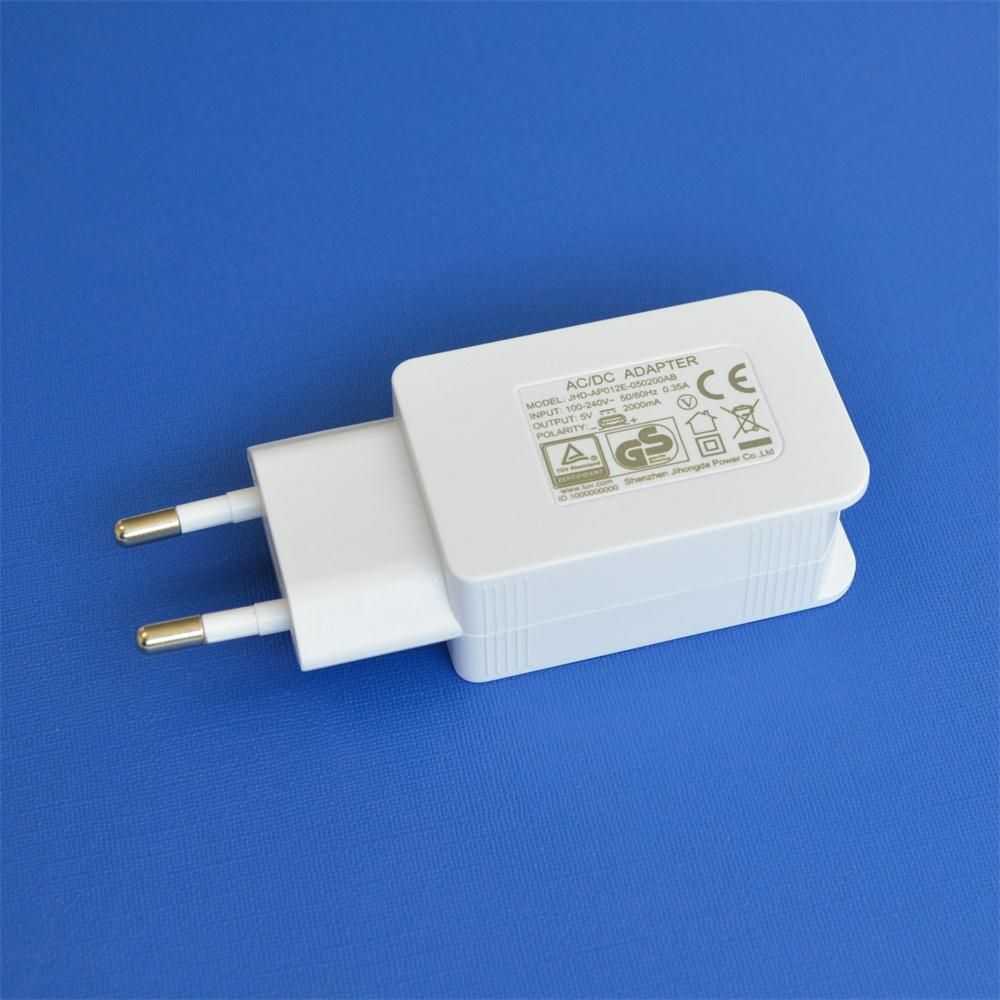

EU Plug 5V2a USB Mobile Phone Charger,CE(LVD&EMC),GS,TUV Approved Travel USB Charger,Delivery Time15 days,Three years warranty,Univer Input 100-240VAC,Modified and Custom Design Available,Output with Low Ripple Noise.
Specifications:
Input voltages: 100-240VAC (full range), 50/60HZ
Input current (rms): 0.2A at 90VAC, 0.15A at 264VAC max
Output Voltage: DC 5.0V
Output Voltage regulation ± 5% at constant voltage mode
Out Current: 0.01-2.1A
Max power (Po): 10.5W maximum
Protections: over current/voltage and short circuit
Safety Approval: UL/cUL, GS, CCC, PSE, FCC, CE
Operating temperatures: 0 to 40°C ambient
Storage temperatures: -20 to 80°C
MTBF: >50,000 hours at 80% load and 25°C ambient temperatures
Weight: about 100g
Model No. List:
JHD-AP012E-050200AB,Output:5V2A
JHD-AP012E-050210AB,Output:5V2.1A
JHD-AP012E-050150AB,Output:5V1.5A
Remark:
The above is JHD standard specification , customizing service is available.
If you have different requirement ,please feel free to contact us.
SHENZHEN JIHONGDA POWER Co., Ltd was founded in June 2006; JIHONGDA the professional power company that combined with swithing power supply design production sales and technical consulting services. JIHONGDA runs Taiwan enterprise operation and management mode targeted at high-end power supply design and production standards and managent team consist of a number years experience in design, engineers and experienced production, qulity stuff.
JIHONGDA products adopt the advanced international control circuit, high qulity electronic Market positioning; SAFETY\ENERGY CONSERVATION \EFFICIENCY \GOOD QUALITY design product in line with national standards of good electrician products and product passed 3C FCC UL CEC DOE CE GS EPR PSE KC SAA and other multi-national satety cetification and meets EU RoHS enviromental standards. Products thoughout China ERIOPE USA Japan Korea and other countries and regions of the word. Wiely used in appliances, IT digital products, medical equipment, communications equipment, Industrial instrumentation, bank data equipment, compter peripherals, Security monitoring equipment, medical equipment, communications equipment, industrial equipment series.
The company pursues "dedicated, professional, pragmatic and innovative" management philosophy, emphasizing stuff dominant position in the modern enterprise management, now we have a group of highly qualified and experienced professional power supply design, manufacturing management and quality control personnel, and strictly enforce the ISO9001 and other systems, the company to achieve the best advantage in quality, service, cost, efficiency, etc., while access to domestic and international customer recognition and support.
