| Prod Model: |
JHD-AP006U-050100BB-2 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
45X32X19.5mm |
| Safety Approval: |
UL,cUL,PSE,FCC |
| Lead Time: |
15days |
| Compatible Brand: |
iPhone |
| Type: |
Travel |
| Power Source: |
Electric |
| Quick Charging Function: |
Without Quick Charging Function |
| Over-Current Protection: |
With Over-Current Protection |
| Display: |
Without Display |
| Color: |
Black |
| Socket Type: |
For USA/Canada |
| Customized: |
Customized |
| Charger Cable Length: |
ODM |
Product Description

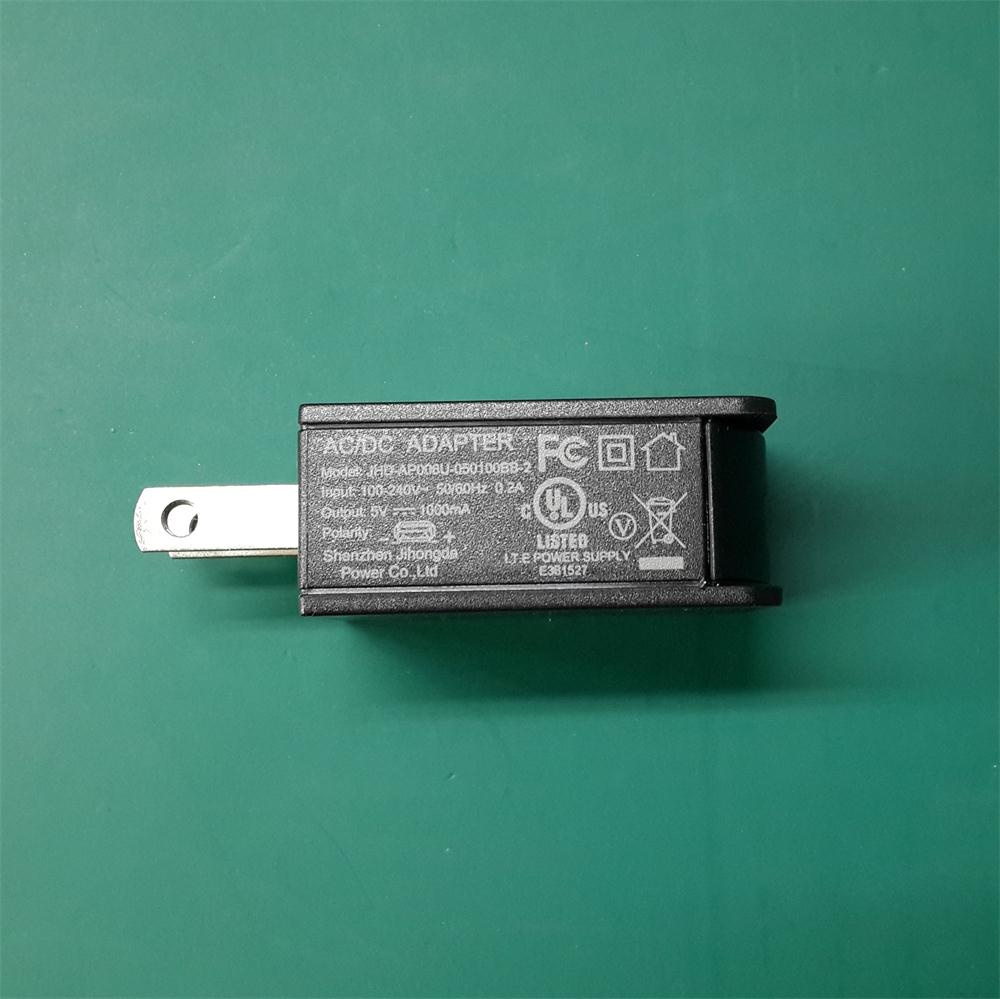

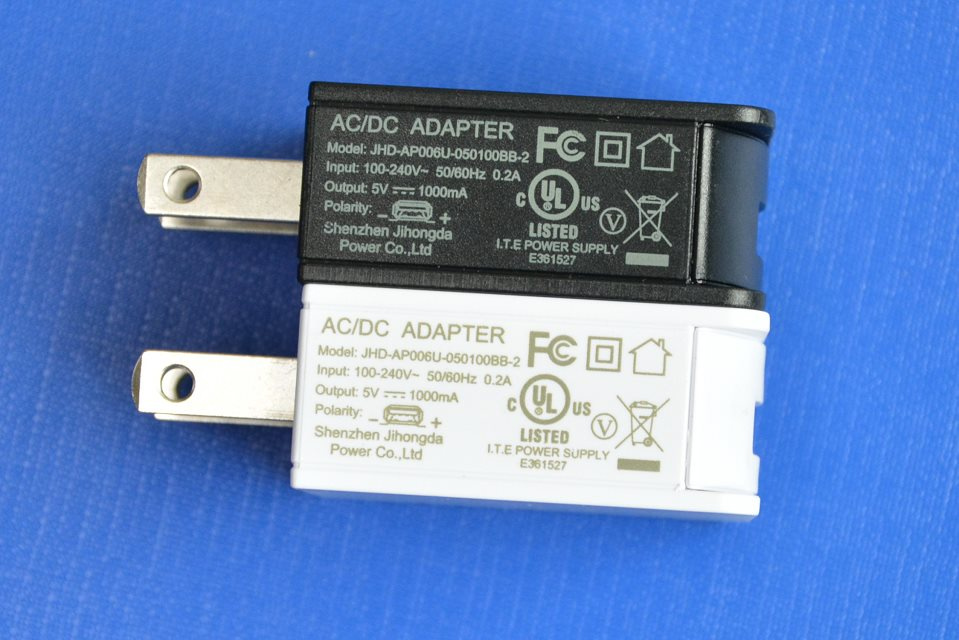

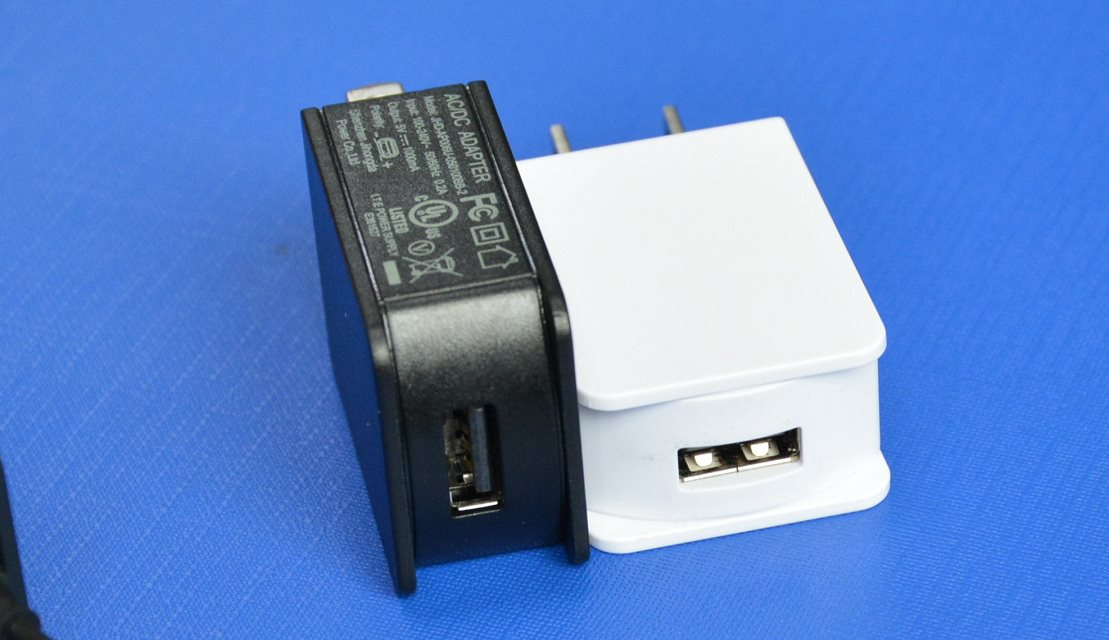

US Plug 5V1a USB Mobile Phone Charger with UL,FCC,CE,FCC,PSE ,RoHs certification,Thin&small design for easier carrying,Three years warranty,Univer Input 100-240VAC,Modified and Custom Design Available,Output with Low Ripple Noise,Meet ROHS CEC
Technical specification
Input : AC100-240V,50/60Hz
Input range: AC90-264V,47/63Hz
No Load Consumption: 0.1W (max)
Output Power: 6Wmax
Output Voltage: 5V
Over Voltage Protection: 120%min
Over Current Protection: 120%min
Short-Circuit Protection : Auto-Rocover
Output Voltage Accuracy: ±5%
Reliability
MTBF:50000Hours
Burn-In Test:100% full load Burn-In Test
Environment Requirement
Operating Temperature: 0ºC - 40ºC
Storage Temperature: -20ºC - 85ºC
Storage Humidity: 5% - 90%RH
Insulation withstand: AC 3000V(Min),5mA(Max)
Insulation Resistance: DC 500V 100MΩ(Min)
Safety Approval:UL,CUL,PSE,FCC
Dimension
Weight : 50g
Dimension : 45x32x19.5 (mm)
| Model No. | Output |
| JHD-AP006U-050050BB-2 | 5V 500mA |
| JHD-AP006U-050080BB-2 | 5V 800mA |
| JHD-AP006U-050100BB-2 | 5V 1000mA |
| JHD-AP006U-050120BB-2 | 5V 1200mA |
Remarks:
The above model is standard ,if you have other requirement ,please contact us ,we can provide oem service.
