| Prod Model: |
JHD-AP012B-050200AB |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Lead Time: |
15days |
| Size: |
59*37*29mm |
| Dielectric: |
3000VAC |
| Universal Input: |
100-240VAC |
| Usage: |
Display |
| Output Type: |
DC |
| Connection: |
Plug In |
| Certification: |
CE |
Product Description

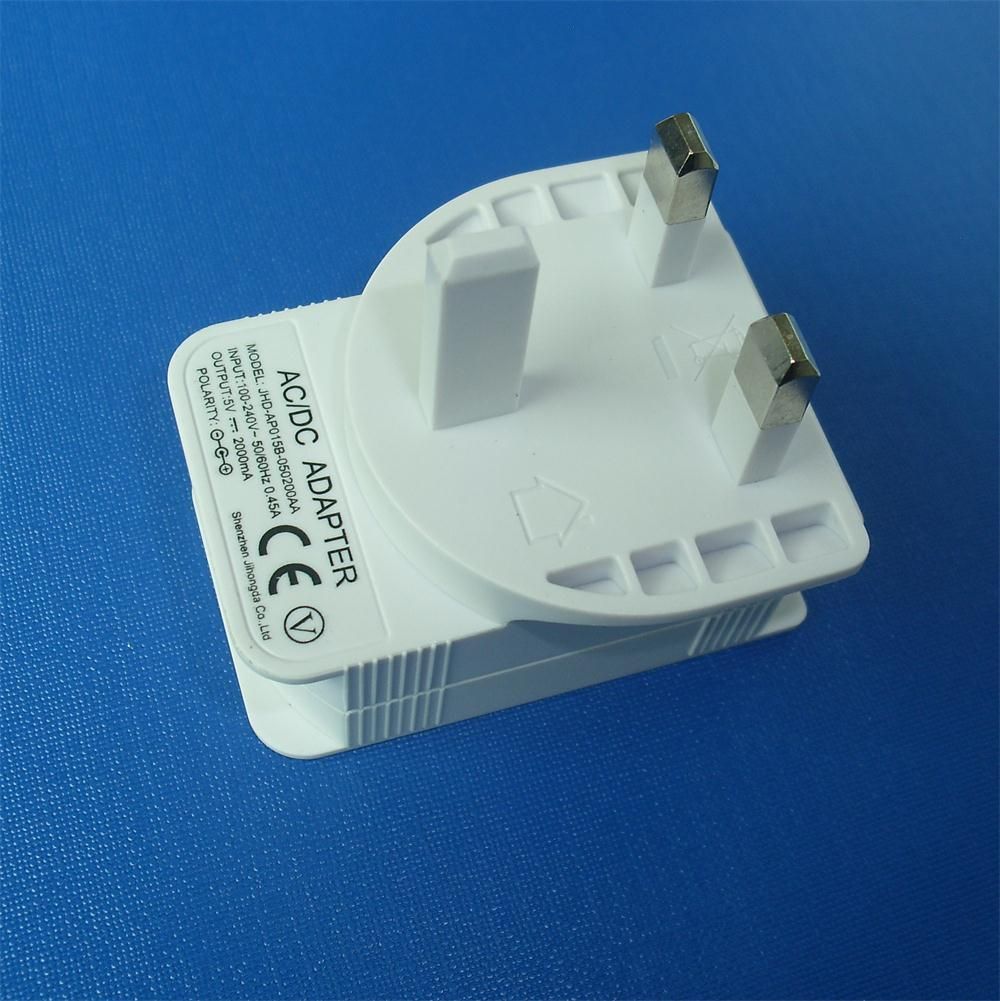

UK 5V2A(5V2000mA) USB Power Adapter Charger,Three years warranty,Univer Input 100-240VAC,Modified and Custom Design Available,Output with Low Ripple Noise,Meet ROHS CEC, ErP
Protection:
Short circuit protection
Constant current protection
Over voltage protection
Over current protection
Thermal shutdown capability
Reliability:
Burn-in: 100% full load ,40±5ºC, 4hrs min
Leakage current: 0.25mA max. at 254V AC
Withstanding voltage: (between primary and secondary) 3000V AC 1 minute 10mA max
MTBF: meet MIL-HDBK-217F over 50,000 hours, full load, 25ºC
Electrical specifications:
Input features:
AC input voltage: 100-240V AC
Ac input frequency: 47-63Hz
Ac input current: 0.80 arms (120V AC) 0.40 arms (240V AC)
Ac inrush current: 30A max. (120V AC) 60A max. (240V AC)
Turn on delay time: 3 second max
Efficiency: 80% (typical)
Switching frequency: 70kHz (typical)
Environmental:
Operating temperature: 0 to 40ºC free convection, sea level
Storage temperature: -20ºC to 80ºC free convection, sea level
Humidity: operating humidity/non-operating humidity---0 to 85% RH (non condensing)
Safety approvals:
EN60950-1/A11:2009
CE (low voltage directive)
Emissions:
EN55022 class B
Immunity:
EN55024/A1:2001
Electrostatic discharge: 61000-4-2
Radiated electromagnetic fields: 61000-4-3
Fast transients (burst): 61000-4-4
Surge transients: 61000-4-5
Conducted disturbance: 61000-4-6
Voltage dips, interruptions and variations: 61000-4-11
| Model No. | Output |
| JHD-AP012B-050150AB | 5V 1A |
| JHD-AP012B-050200AB | 5V 2A |
| JHD-AP012B-050210AB | 5V 2.1A |
Input : AC100-240V 50/60Hz
Output: DC5V/1.5A,DC5V/2A,DC5V/2.1A
With CE-EMC,CE-LVD certification .
Main Market: European
JHD provide OEM service and customize many types power adapter ,USB charger as per client's special requirement .
If you are interested in this product ,please feel free to contact us.
