| Prod Model: |
JHD-AP006E-050100BB-A |
| Markets: |
North America,Eastern Europe,Southeast Asia,Oceania,Mid East,Eastern Asia,Western Europe |
| Mini Size: |
45X32X19.5 (mm) |
| Safety Approvals: |
CE,GS,CB |
| Main Market: |
European |
| Delivery Time: |
15days |
| Type: |
Portable |
| Power Source: |
Electric |
| Quick Charging Function: |
With Quick Charging Function |
| Charger Cable Length: |
10 to 14.9 Feet |
| Over-Current Protection: |
With Over-Current Protection |
| Display: |
Without Display |
| Socket Type: |
For E.U. |
| Customized: |
Customized |
| Compatible Brand: |
Univeral |
| Color: |
White or Black |
Product Description

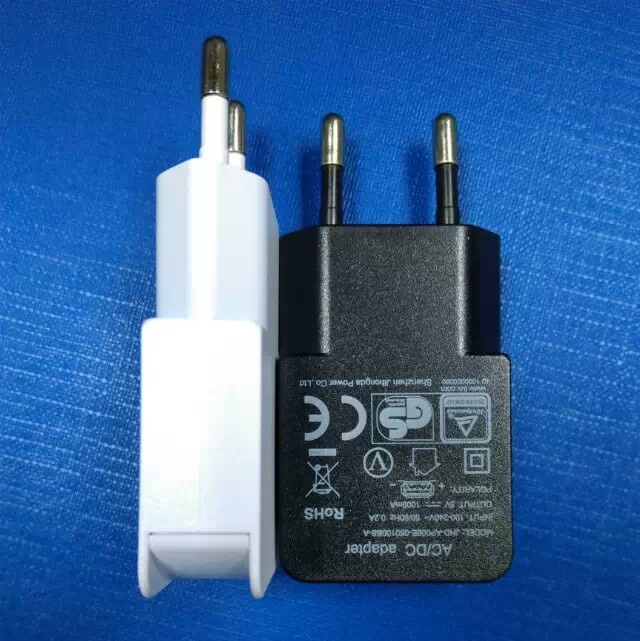

OEM Mobile phone charger ,CE certified USB Charger ,portable travel charger ,5V Univeral charger for cell phone . with GS,CB certificates .
OEM /ODM service is available .
Model List:
JHD-AP006E-050100BB-A, Output 5V1A , connection is USB type
JHD-AP006E-050100BA-A, Output 5V1A, Connection is DC wire
Dimension
Weight : about 50g
Dimension: 45x32x19.5 (mm)
Input Voltage: AC100-240V,50/60Hz
Input Voltage Range: AC90-264V,47/63Hz
Load Consumption: 0.1W (max)
Output Power: 6Wmax
Output Voltage: 5V
Over Voltage Protection: 120%min
Over Current Protection: 120%min
Short-Circuit Protection : Auto-Recover
Output Voltage Accuracy: ±5%
Reliability
MTBF: 50000Hours
Burn-In Test: 100% full Load
2 years warranty
Environment Requirement
Operating Temperature: 0ºC - 40ºC
Storage Temperature: -20ºC - 85ºC
Storage Humidity: 5% - 90%RH
Insulation Withstand: AC 3000V(Min),5mA(Max)
Insulation Resistance: DC 500V 100MΩ(Min)
More specification, please contact us with skype Aimee88996 for timely discusstion .
