| Prod Model: |
SKD5-VAHT-3 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Resolution: |
640X480, Support up to 1920X1440 |
| Brightness: |
200CD/M2 |
| Contrast Ratio: |
500:1 |
| Backlight: |
LED |
| Input Signals: |
VGA, AV1, AV2, HDMI |
| Input Voltage: |
DC 12V |
| Applications: |
ATM, POS, Kiosks, Medical Equipment |
| Application: |
Surveillance |
| Aspect Ratio: |
4:3 |
| Feature: |
LED Backlight Display |
| Type: |
TFT |
| Widescreen: |
Widescreen |
| 3D: |
Not 3D |
| Screen Size: |
5 Inch |
| Optimum Resolution: |
640X480 |
| Interface Type: |
VGA, AV, HDMI |
Product Description

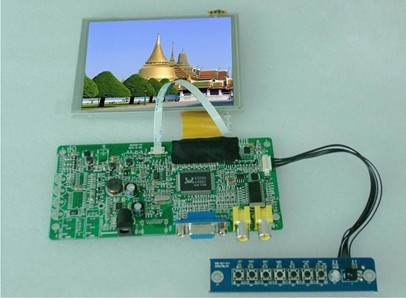

4: 3 5 Inch Touch LCD SKD Display with VGA, HDMI, AV Input
Model: SKD5VAHT-3
Brightness: 200 CD/m²
DOT Resolution: 640X480 pixels (up to1920× 1440)
Contrast Ratio: 500: 1
Aspect Ratio: 4: 3
Inputs: VGA, AV1, AV2, HDMI
Input Voltage: DC12V
Backlight: LED
| Specification |
| Desciption | 4:3 5 Inch Touch LCD SKD Display with VGA, HDMI ,AV Input |
| Model: | SKD5VAHT-3 |
| Brightness: | 200 cd/m² |
| Touch Screen: | 4 Wire Resistive Touch |
| Touch Interface: | USB for standard & RS232 (optional) |
| Dot Resolution: | 640x480 pixels (up to1920× 1440) |
| Contrast Ratio: | 500: 1 |
| Aspect Ratio: | 4: 3 |
| Backlight: | LED |
| Dot pitch: | 0.0529(w) × 0.1587(H)mm |
| Viewing Angle: | 70° /70° (L/R) 50° /70° (U/D) |
| Input Voltage: | DC12V± 15% |
| Signal: | VGA, . AV1, AV2, HDMI |
| Power Consumption: | ≤ 6W |
| WorkTemperature: | -20º C~60º C |
| Store Temperature: | -30º C~70º C |
| Screen Size: | 117.65(W)X88.43(H)X5.7(H) mm |
| PCB Size: | 145(L)X70(W)mm |
| Unit Weight: | 280g |
| Installation Method: | SKD |
| OS Support for touch | Application | Accessories(optional) |
| Window XP | Medical equipment | ？ Home AC Adapter |
| Window NT4 | Kiosks | ？ USB& VGA Touch cable |
| Window 9X/ME | POS terminals | ？ Remote controller |
| WIN CE | ATM | ？ Touch Drive Disc(for touch) |
| MAC | Embedded System | ？ Touch Pen(for touch) |
| MS-DOS | Industrial Control |
|
| Linux |
|
|
Goodwell Technology Limited major in producing and selling the high technology electronic products. Base on the R&D department and the demand of market, we develop many kinds of new products to meet the customer's demand of different period and different market.
Our major products are TFT LCD Monitors, Car Touchscreen monitors, LCD SKD modules, Mobile Embedded Computing Device, Satellite Finder, Photography Monitor.
We have own R&D team major in developing the intelligent meters and the industrial control system and equipment, Display instruments.
Attributing to our strict quality control in components selection before production and performance inspection. Our Products are popular in Europen and North American Countries.
We will develop more new produts and catch up the market change. OEM and ODM are Welcome.
