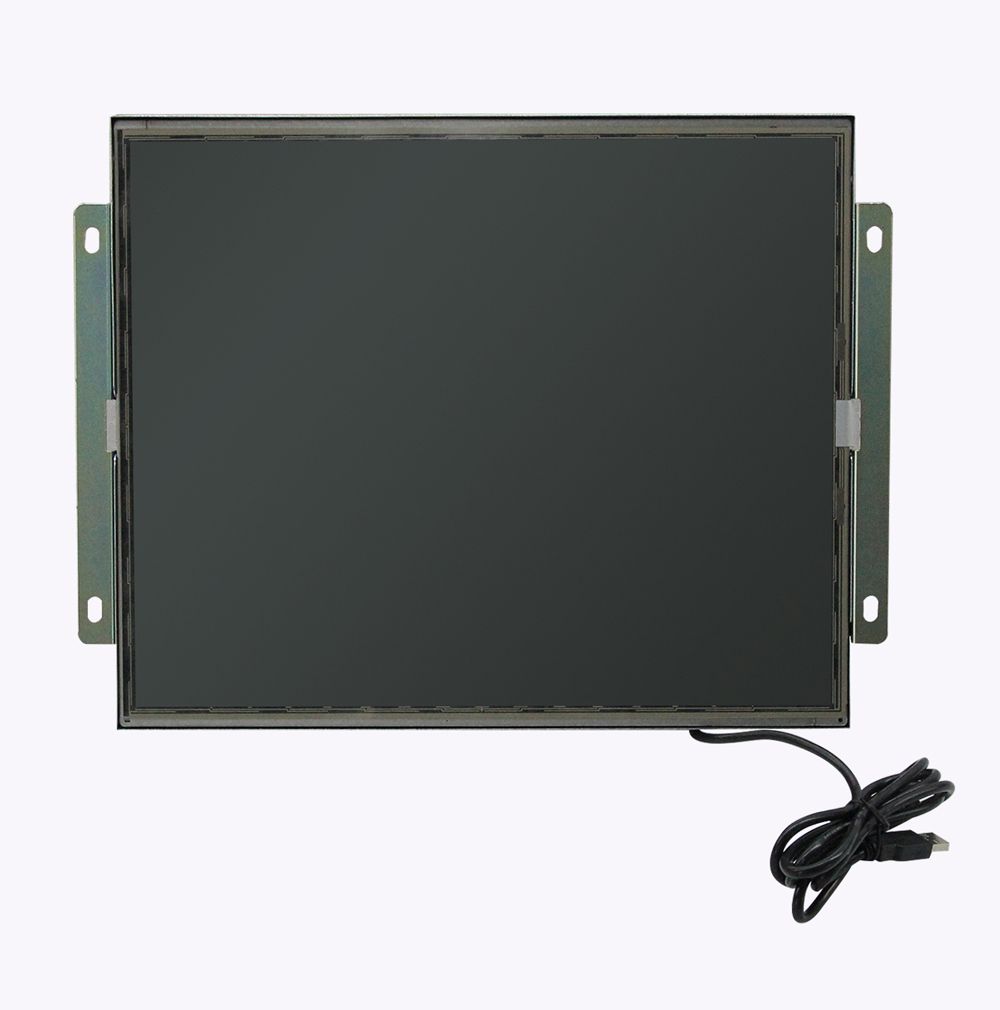

15" Open Frame Industrial Display with 5-Wire Resistive Touch Screen
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,EXW |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
OFM-1501T |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Contrast Ratio: |
700:1 |
| Backlight: |
LED Backlight |
| Brightness: |
350CD/M2 |
| Interface Port: |
VGA,DVI |
| Touch Panel: |
5-Wire Resistive |
| Touch Interface: |
USB or RS232 |
| Application: |
Graphic Design |
| Aspect Ratio: |
4:3 |
| Feature: |
LED Backlight Display |
| Optimum Resolution: |
1024x768 |
| Type: |
TFT |
| Widescreen: |
Not Widescreen |
| Response Time: |
4ms |
| 3D: |
Not 3D |
| Interface Type: |
VGA |
| Screen Size: |
15 Inch |
Product Description
15 inch lcd advertising display/open frame touch monitor
1.IP65 vandal proof, dust proof, water proof.
2.Industrial grade design with continued working 24h/7/365.
3.AD board is industrial grade with wide temperature.
4.VGA, DVI inputs.
5.High resolution/contrast/brightness, wide viewing angle.
6.Resistive/Saw/IR/Capacitive/Optical touchscreen.
7.Multi-touch available.
8.Different sizes from 7"-82" with CE, FCC, ROHS, ISO9001 certificates.
Product Description
Specification |
| 15" Touch Open Frame l Monitor |
| Mode Name | OFM-1501T |
| Screen Size | 15" |
| Active Display Area (mm) | 304.128mm(W)×228.096mm(H) |
| Display Mode | 4:3 |
| Resolution | 1024×768 |
| Display Color | 16.7M |
| Pixel Pitch(mm) | 0.297(H)×0.297(V) |
| Brightness(nits) | 350nits |
| Contrast Ratio | 700:1 |
| Viewing Angle | 140(H) /125(V) |
| Response Time | 4ms |
| Backlight | LED |
| Interface | D-Sub15 pin(VGA),DVI |
| Power | DC12V 4A 50HZ/60HZ/70HZ |
| Power Consumption | <=35W (Max) |
| Plug & Play | DDC 1/2B |
| OSD Control | Auto adjust, Brightness, Contrast, Hori. / Vert. Position, Clock, phase, Color, Language.. |
| MENU | Chinese/English(other languages supported) |
| Mount Method |
| Mounting | VESA 75mm/100mm |
| Touch Type |
| TouchScreen Type | Resistive(5-wire) |
| TouchScreen interface | Serial (RS232) or USB(B) |
| Certificate Approval | CE,RoHS,CCC,FCC,ISO9001 |
| Warranty | 1.5 years |
| Application |
ATM/ Kiosk/Transportation/ Industrial Automation/Medical Treatment
|
