| Prod Model: |
TM1500 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
TFT |
| Brightness: |
400CD/M2 |
| Touch Screen: |
4-Wire/5-Wire Touch Panel |
| Touch Interface: |
USB or RS232 |
| Aspect Ratio: |
4:3 |
| Screen Type: |
Resistive |
| Resistive Touch Screen Type: |
Digital |
| Customized: |
Non-Customized |
| Screen Size: |
15 Inch |
| Application: |
Computer |
Product Description

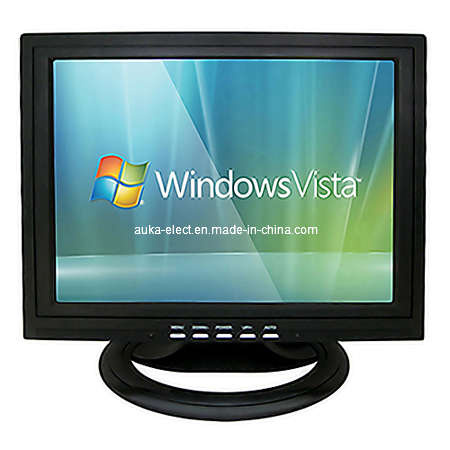

15 Inch TFT LCD Touchscreen VGA Monitor
Description: 15 inch Digital Touch Monitor
Case/Bezel Colour: Black
Panel: 15 inch A+ GRADE Panel
Display Type: 4: 3 Ratio
Physical Resolution: 1024X768
OSD: Remote control OSD(Voice, Brightness, Contrast)
One VGA input, 2 AV Input, 1 AV Input
Input Video Format: Analog RGB, NTSC/PAL/SCAME(AUTO)
Touchscreen Interface: Serial (RS232) or USB
4- wires (5-wire)resistive touch-screen interface (USB port)
Standard VGA input (15 pin D-SUB) can match with PC, GPS and security systems
Two RCA video input can match with VCD, DVD and camera
RGB input for navigation display (optional)
Touch-screen for PC display (optional)
USB/SD Optional FunctionConsumption: <30 W Typ
Working Vplt: 11V-15V
Technical Specification:
*Touch Response Time Serial/USB: 10.4ms
*PowerSupply: 85-265VAC, 50-60Hz
*Pixel Pitch: 0.107 (W) X 0.372(H) mm
*Pixel Response Time Rise + Fall (Typically): 12ms
*Brightness: 400 CD/m2
*Contrast Ratio Typically: 14.58402778
*ViewingAngle Horizontal (left/right): 170° (85° /85° )
*From Centre, CR>=5 Vertical (up/down): 160° (70° /90° )
*Temperature Range: Operating: -20º C-60º C,
*Storage: -30º C-70º C
*Relative Humidity Non Condensing: Operating: 10%-90%, Storage 5%-90%
*FM/IR Range: FM-30-88.9 MHz, IR-2.3MHz-2.8MHz
*TV Channel Parameter: VHF-L 48.25~170.00MHz VHF-H 170.00~450.00MHz
Packing
Quantity: 2PCS/CTN
Net Weight: 14.5KG/CTN
Gross Weight: 15.5KG/CTN
Carton: 43X40X37CM
