Prod Model: |
TM1503 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Resolution: |
1024X768 |
Touch Interface: |
USB or RS232 |
Brightness: |
400CD/M2 |
Type: |
TFT |
Application: |
Surveillance |
Aspect Ratio: |
16:9 |
Feature: |
Touch Display |
Interface Type: |
VGA |
Screen Size: |
15 Inch |
Product Description

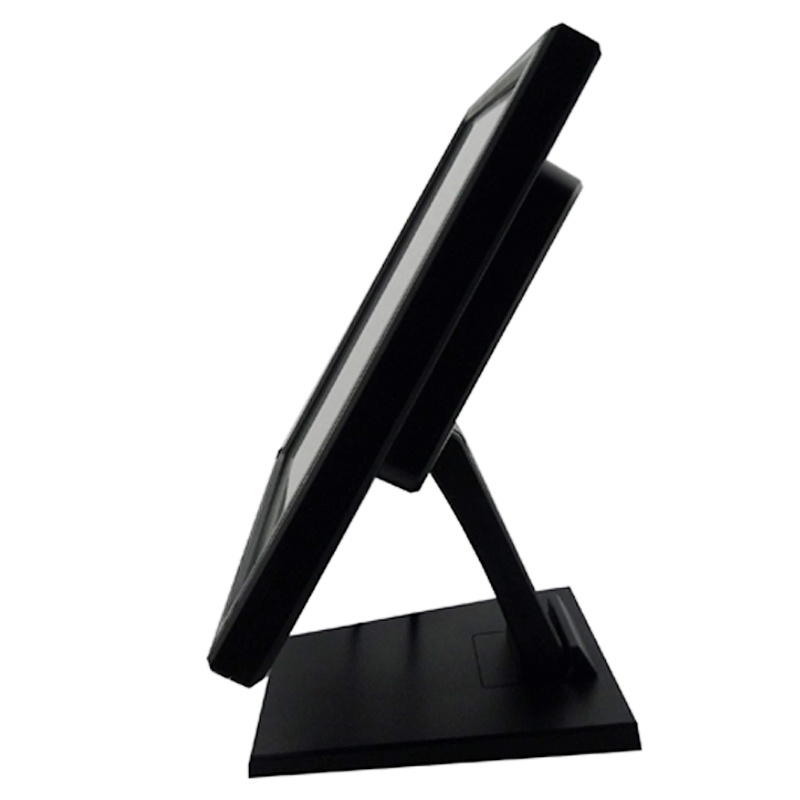

15 Inch TFT LCD Touchscreen VGA Monitor with Metal Bracket
Panel: 15" A+ GRADE Panel
Display Type: 4: 3 /16: 9Ratio
Physical Resolution: 1024X768
4- wires /5-wire resitive touch-screen optional.
Touchscreen Interface: Serial (RS232) or USB optional.
15 pin D-SUB VGA signal input.
Built in Speaker.
OSD: Remote control OSD(Voice, Brightness, Contrast)
One VGA input, 2 AV Input, 1 AV Input
Input Video Format: Analog RGB, NTSC/PAL/SCAME(AUTO)
Touchscreen Interface: Serial (RS232) or USB
Operating System: DOS/Window 7 ME, 2K XP Vista NT Windows CE / LINUX / Mac
Power Consumption: <30 W Typ
Working Vplt: 11V-15V
Technical Specification:
Touch Response Time Serial/USB: 10.4ms
PowerSupply: 85-265VAC, 50-60Hz
Pixel Pitch: 0.107 (W) X 0.372(H) mm
Pixel Response Time Rise + Fall (Typically): 12ms
Brightness: 400 CD/m2
Contrast Ratio Typically: 14.58402778
Viewing Angle Horizontal (left/right): 170° (85° /85° )
(From Centre, CR>=5) Vertical (up/down): 160° (70° /90° )
Temperature Range: Operating: -20ºC-60ºC,
Storage: -30-70ºC
Relative Humidity Non Condensing: Operating: 10%-90%, Storage 5%-90%
FM/IR Range: FM-30-88.9 MHz, IR-2.3MHz-2.8MHz
TV Channel Parameter: VHF-L 48.25~170.00MHz VHF-H 170.00~450.00MHz
Installation: Desktop/standard VESA
Packing:
Quantity: 2PCS/CTN
Gross Weight: 7.36KG/CTN
Carton: 44X43X35CM
