| Prod Model: |
P150-3AHDT |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Screen Siz: |
15 Inch |
| Resolution: |
1024X768, Support up to 1920X1440 |
| Contrast Ratio: |
600:1 |
| Brightness: |
350CD/M2 |
| Inputs: |
VGA,AV,HDMI,DVI |
| Outputs: |
Audio |
| Backlight: |
LED |
| Input Voltage: |
DC6-24V |
| Power Consumption: |
≤8W |
| Aspect Ratio: |
4:3 |
| Application: |
Financial Services System |
| Screen Type: |
Resistive |
| Resistive Touch Screen Type: |
Digital |
| Customized: |
Non-Customized |
| Screen Size: |
15" |
Product Description

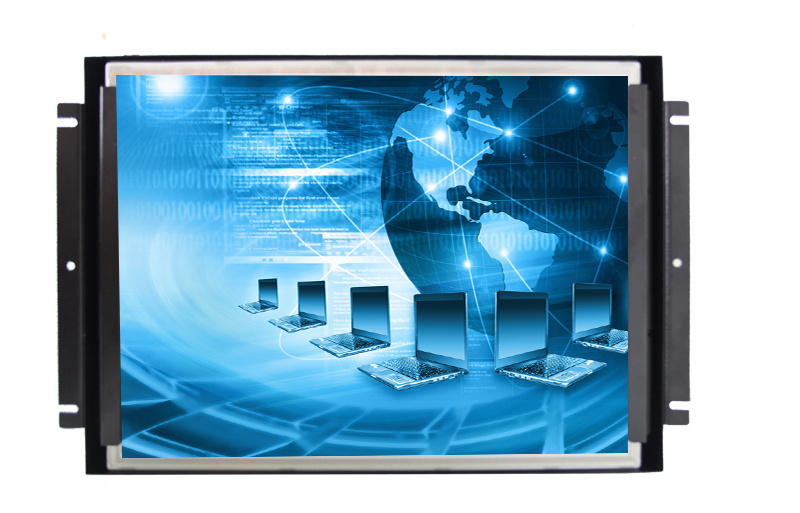

15 Inch LCD Touch Screen
Open Frame LCD display is designed for commercial and industrial applications , high brightness for sunlight readable application. Features wide operating temperature, high brightness, touch screen capable, and customized mechanical design; fulfill the demand for extreme environments. It offers the best visibility, performance and cost effective value. The high level of brightness together with fast response time and LED backlight technology, the monitor brings remarkable display quality. And guaranteeing product life cycle longevity, stability, and reliability.
Perfectly suitable for kiosks, ATM, POS, marline, military, medical, transportation, Avionics, industrial automation, gaming, digital entertainment display and outdoor application.
Features Highlights:
1. 15" LCD panel with resolution 1024 x 768
2. Green LED-backlit panel technology
3. Easy to Mount Open Frame,Rugged construction against external impact, metal chassis
4. VESA Mounting Hole Pattern
5. OSD buttons can prevent unnecessary setting changes
6. Standard VGA Input (Optional for DVI, HDMI, AV)
7. Complete custom design/solution
Appliations :
Mainly Used in Closed-Circuit Surveillance Systems
Car Video, PC Operating Systems
Vehicle Navigation Systems Supporting Display
Can Also be Applied for Industrial Automation
Medical Machine Equipments
Electric Power
Petrification
Marline and Military
Navigation
POS, ATM and Instrumentation Display Systems.
Specifications :
Model Number | P150-3AHDT (P150-3AHD without touch ) |
| Screen Size | 15 inch with LED backlight |
| Resolution | 1024 x 768 |
| Aspect Ratio | 4:3 |
| Contrast Ratio | 600:1 |
| Brightness | 350cd/m2 |
| Viewing Angle | 70°/70°(L/R), 70°/65°(U/D) |
| Touchscreen | 4 Wire Resistive Touchscreen |
| Touch Interface | USB (RS232 for Optional) |
| Inputs | HDMI,DVI,VGA,YPbPr,Video,Audio,Earphone jack,USB for touch |
| Outputs | Audio x1, Speaker x1 |
| Power Consumption | ≤8W |
| Input Voltage | DC6-24V |
| Working Temperature | -10ºC~55ºC |
| Storage Temperature | -20ºC~65ºC |
| Unit Size | 381.2L×257.7W×33.7H (mm) |
| Unit Weight | 2640g |
|
|
|
|
|
|
