| Prod Model: |
UM-101T |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Brightness: |
250 CD/M2 |
| Contrast: |
500:1 |
| Touch Screen: |
4-Wire Touch Panel |
| Touch Interface: |
USB |
| Application: |
Surveillance |
| Aspect Ratio: |
16:9 |
| Feature: |
LED Backlight Display |
| Type: |
TFT |
| Widescreen: |
Widescreen |
| Response Time: |
8ms |
| Screen Size: |
10 Inch |
| Optimum Resolution: |
1024X600 |
| Interface Type: |
USB |
Product Description

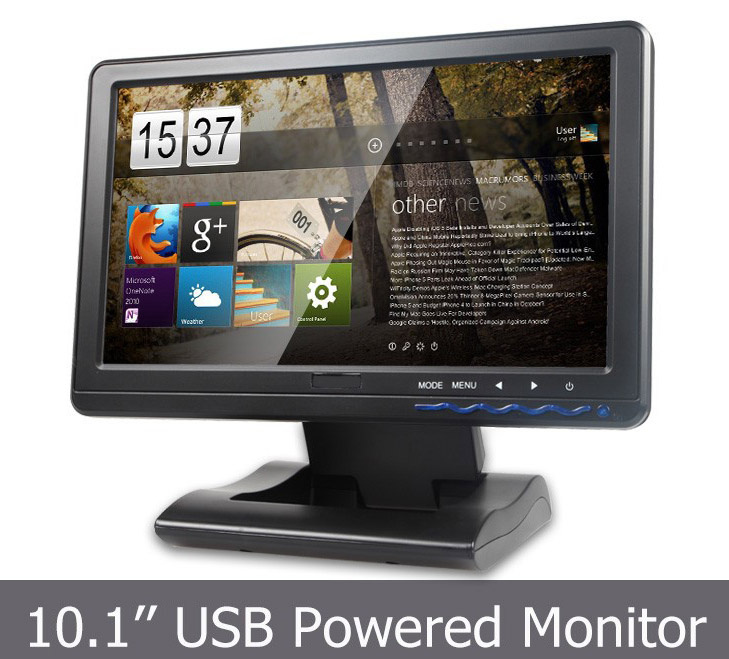

10.1 Inch LCD USB Touchscreen Monitor
1. NOT DC power, just USB Powered
2. NOT VGA input, just USB Input
3.4-Wire Resistive Touch Screen
4. Panel Size: 10.1" LED
10.1 inch USB Monitor &Touchscreen&Use as Multiple Input Device Functions:
Product Feature:
Touch & Play
Just Suit Yourself
NOT DC power, just USB Powered
NOT VGA input, just USB Input
4-Wire Resistive Touch Screen
USB Device Interface
One cable does it all!
Innovation USB-only connection---add monitors without adding clutter!
A USB Powered Touch Screen Monitor as Multiple Input/Output Device for Video Conference, Instant Messaging, News, Office applications, Game map or toolboxs, Photo Frame and Stock Casting, etc.
How to use it?
Installing Monitor Driver (AutoRun);
Click on display setting icon on system tray and see the menu;
Setup menu for Screen Resolution, Colors, Rotation and Extention, etc.
OS: Windows 2000 SP4/XP SP2/Vista 32bit/Win7 32bit
What can you do with it?
UM101T has thousands of useful and fun applications: Keep your main display clutter free, park your Instant Messaging windows, keep your application palettes on it, use it as a digital picture frame, as a dedicated stock ticker display, put your gaming maps on it.
UM101T is great for use with a small laptop or netbook because of its light weight and single USB connection, it can travel with your laptop, no power brick needed!
Business (Retail, Healthcare, Finance)
Integrate into point-of-purchase or point-of-registration process
Cost-effective method to have multiple consumers/customers register, enter information, and authenticate
Use one computer for multiple users (with virtualization software - not included)
Shopping
Monitor online auctions

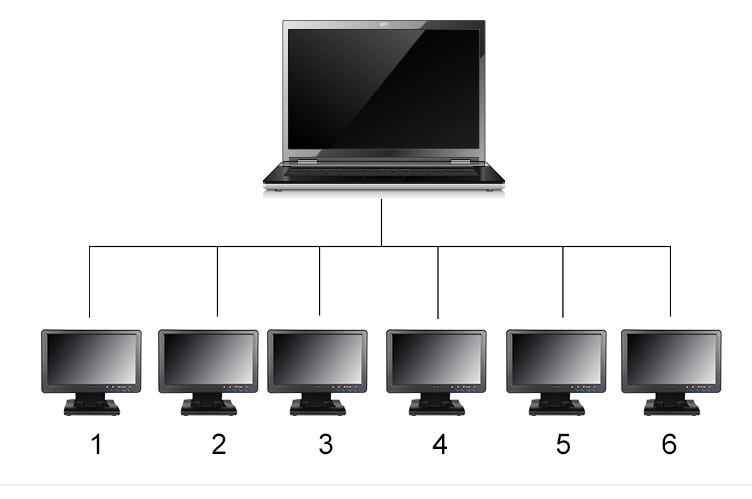

One PC Can connect 6pcs USB Powered Monitors at the same time
Can be used on meeting or school etc
Parameters:
| Description | 10.1"Touchscreen USB Monitor |
| Model | UM-101T |
|
| Brightness | 250cd/m² |
|
| Touch Screen | 4-Wire Resistive Touch(5-Wire for Optional) |
| Touch Interface | USB |
| Dot Resolution | 1024*600 pixels ,up to1920*1440(1366*768 pixels for optional) |
| Aspect Ratio | 16:9 |
| Contrast Ratio | 500:1 |
| Backlight | LED |
| Response time | 8ms |
| Viewing Angle | 45°/45°(L/R) 25°/45°(U/D) |
| Input Signals | USB |
| Input Voltage | USB(DC 5V±10%) |
| Power Consumption | ≤6W |
| working Temperature | -20ºC~50ºC |
| storage Temperature | -30ºC~65ºC |
| Unit Size | 255L×163W×34H mm |
| 255 L*163 W×69 H mm (folding) |
| 255 L×150 W×236 H mm (stretching) |
|
| Unit Weight | 1018g |

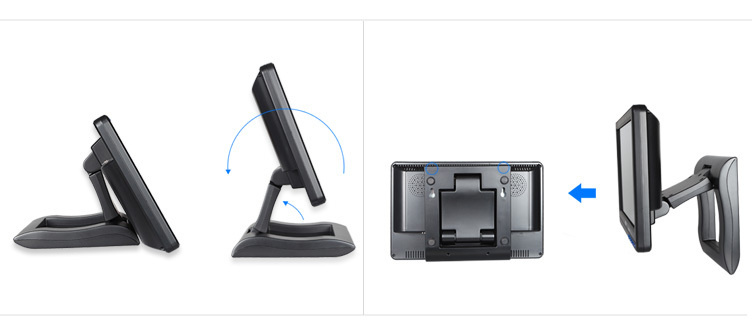

Folding Bracket
> Be available to stretch & folding
> Wall Mount possible
Auka Industrial Limited is a high-tech enterprise specializing in TFT LCD Monitor, Touch Screen Monitor, Camera Field Monitor, Embedded Computer, Industrial Panel PC, CCTV Monitor, USB Touch Monitor, Open Frame Monitor, LCD SKD Module, All in one POS, Transparent LCD, Sunlight Readable Monitor, FPV Monitor, Police Body Worn Camera and car DVR Recorder. And are widely used in the fields of security monitoring, traffic control center, broadcasting system, military, city square, shopping mall, bank, school and hospital, etc. Our monitors can be applied in devices like ATM, Self-service kiosk, Transportation, Automatic Vending Machine, Gaming Machine, POS, Medical Treatment, CNC Machine etc. We have set up a large customer network and gained praise since establishment in 2005 for preciseness, cordiality, powerful technology support and perfect market understanding. A factory with more than 8, 000 sq. M. As well as a team of well-trained employees. Our department of R&D, production, sales and after-service strictly abide by ISO9001 quality control system. Certified by CE, FCC, RoHS, CCC and E-MARK standard, the performance of our products meets or exceeds the advanced world standard. And our own-designed LCD Touch Monitor have became popular among many long- term customers and partners. Our products have been exported to America, Europe, Middle East, Australia and Southeast Asia.
We have yeares experience in OEM of VGA Touch screen, TFT LCD Module, Embedded Computer.
Welcome to our company for any OEM / ODM cooperation! Let' S go ahead hand in hand to embrace our prosperous tomorrow!
Professional, fast, and wonderful after-sales service is our mission. Customers' satisfaction is our final aim.
