| Prod Model: |
101-SKD |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Screen Size: |
10.1 Inch |
| Resolution: |
1024X600 |
| Aspect Ratio: |
16:9 |
| Brightness: |
250CD/M2 |
| Contrast Ratio: |
500:1 |
| Backlight: |
LED |
| Touch Screen: |
4-Wire/5-Wire Touch Panel |
| Input: |
HDMI / VGA / Video1/Video2 / Audio |
| Usage: |
Monitor LCM |
| Digital LCD Module Type: |
Timing Module |
| Touch Screen Type: |
Resistive |
| Type: |
Color |
| Response Time: |
10ms |
| Display Technology: |
TFT |
| DOT-Matrix Graphic LCD Module Type: |
Row/Column-Driven Control Type |
| LCD Drive Mode: |
Multiplex Drive LCD Module |
| Customized: |
Customized |
| Viewing Angle: |
50°/50°(L/R) 30°/50°(U/D) |
Product Description
Features:
AUKA SKD modules are manufactured with steady performance and low power consumption. They are mainly applied to various facilities, such as car navigation system, HTPC, thin client PC, panel PC, POS, industrial control system etc.

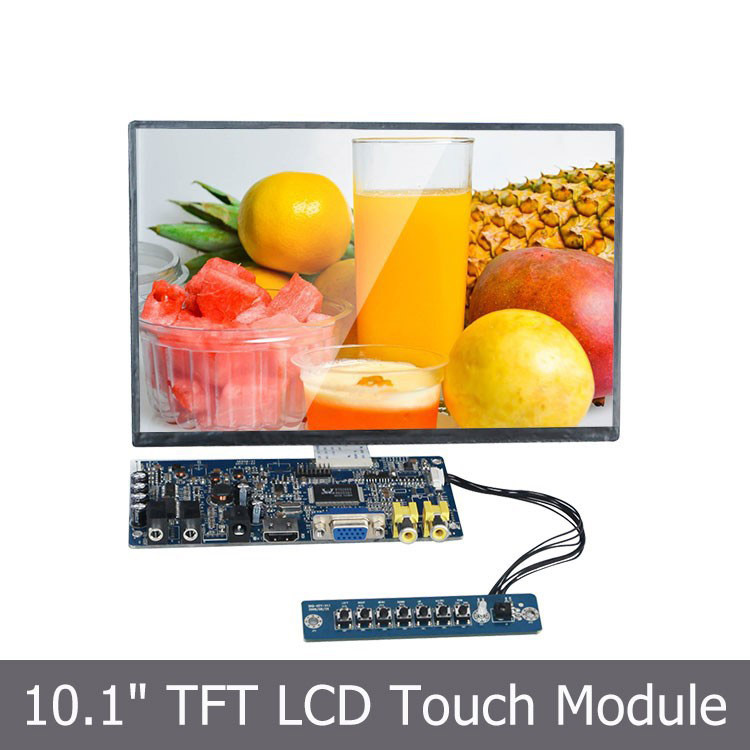

10.1" TFT 1024x600 LCD Touch Screen SKD Module Screen Size: 10.1"
Resolution: 1024x600 pixels
Aspect ratio: 16:9
Brightness: 250cd/m²
Contrast: 500:1
Backlight: LED
Viewing Angle:50°/50°(L/R) 30°/50°(U/D)
Input:HDMI / VGA / Video1/Video2 / Audio / DVI for optional
Display | Description | 10.1" TFT LCD SKD (touchscreen optional) |
| Model | 101-SKD |
| Touch Screen | 4&5Wire Resistive Touch(Optional) |
| Touch Interface | USB |
| Resolution | 1024×600 pixels | 1024×600 pixels | 1366×768 pixels |
| Brightness | 250cd/m² | 450cd/m² | 250cd/m² |
| Aspect ratio | 16:9 |
| Contrast | 500:1 |
| Viewing Angle | 50°/50°(L/R) 30°/50°(U/D) |
| Backlight | LED |
| Input | VGA | 1 |
| Video | 2 |
| HDMI | 1 |
| DVI for optional | 1 |
| Output | Audio | 1 |
| Audio | Ear Phone Slot | 1 |
| Power | Power Consumption | ≤6W |
| Input Voltage | DC12V±15% |
| Environment | Working Temperature | -20ºC~60ºC |
| Storage Temperature | -30ºC~70ºC |
| Dimension | Unit Size | 229.5Lx149Hx2.4D (mm) |
Applications
Mainly Used in Closed-Circuit Surveillance Systems
Car Video, PC Operating Systems
Vehicle Navigation Systems Supporting Display
Can Also be Applied for Industrial Automation
Medical Machine Equipments
Electric Power
Petrification
Monitor
Navigation
POS, ATM and Instrumentation Display Systems
