| Prod Model: |
GA300 / GA500 / GA800 / GA1000 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Application: |
Commercial |
Product Description

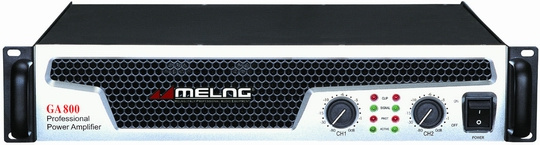

GA series adopts switching mode power supply, 2 U rack, with light height, great output power; Its special cooling method makes the cooling speed much faster; Having high effective H class circuit; The perfect protecting system makes the product more stabile; With SMD produce technology, having wonderful technics.
|
Model |
GA300 |
GA500 |
GA800 |
GA1000 |
|
8Ω Stereo Power |
300W |
500W |
800W |
1000W |
|
4Ω Stereo Power |
450W |
750W |
1200W |
1500W |
|
2Ω Stereo Power |
585W |
975W |
1560W |
1950W |
|
8Ω Bridge output Power |
900W |
1500W |
2400W |
3000W |
|
Frequency Response |
20Hz-20KHz ± 0.5dB |
< 0.05% |
< 0.08% |
< 0.08% |
|
THD+N(20Hz-20KHz) |
< 0.05% |
30V/μ s |
35V/μ s |
40V/μ s |
|
Slew Rate |
30V/μ s |
38.2dB |
40.2dB |
40.8dB |
|
Damping Factor(8Ω , 20Hz-1KHz) |
400 |
Class H |
Class H |
Class H |
|
Voltage Gain(rated power@8Ω ) |
36dB |
> 90dB |
> 95dB |
> 95dB |
|
Output Circuitry |
Class AB |
> 70dB |
> 70dB |
> 70dB |
|
Signal to Noise Ratio |
> 90dB |
> 90dB |
> 95dB |
> 95dB |
|
CrossTalk(20-20KHz) |
> 70dB |
|
Input Sensitivity(8Ω ) |
0.775V/1.0V/1.4V |
|
Input Impedance |
20KΩ balance/10KΩ unbalance |
|
Cooling |
Two variable speed fans, rear-to-front air flow |
|
Connectors (each channel) |
Input / Outpu: Cannon |
|
Controls |
Front: AC switch, Ch1 and Ch2 gain knobs; |
|
|
|
|
Rear: Sensitivity switch, GND switch, Stereo/Parallel/Bridge switch, |
|
|
|
|
30Hz Low cut switch, clip limiter switch, 150Hz Low pass switch |
|
|
|
|
Indicators |
Front: STANDBY-orange LED, POWER-White LED, SIGNAL-Green LED, |
|
|
|
|
CLIP-Red LED, PROT-Red LED; Rear: Bridge-orange LED |
|
|
|
|
Amplifier Protection |
short circuit, thermal, over load, clip limiter, DC voltage, soft start, ultrasonic and RF protection |
|
|
|
Enping S-paul Audio Factory specializes in producing amplifiers, sound-boxes, tune-registers and other facilities of audio. We are located in the famed city (Enping) next to the Pearl River, and very close to Guangzhou, Hk, Macao and the 325 Nation Highway. The traffic is very convenient.
We own advanced technology, first-rated producing facilities and reliant quality guarantee. During the recent years, we invented a loads of new audio products according to the trends of market, which are with high technology and hot sold. Our products are created by special technology. From the raw materials to the made ones, each links are through strict quality inspection to ensure the pretty figures, outstanding performance, and reasonable price of products. Our brands are always dominant and big sold wherever home and abroad and earned the high praises among the consumers.
Our Ideal is " Perfect products, reasonable prices, wonderful service" Welcome all the clients to enter business with us wherever home and abroad.
