| Prod Model: |
WA Series |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Application: |
Commercial |
Product Description

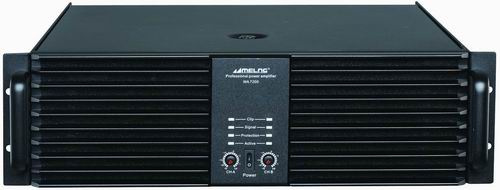

Power Amplifier
WA series have 2U-3U higher selection, and 150W-1300W power area, WA series had some pursuits for faster of reaction speed higher of damping factor, and greater function, higher level of protect function, production technology of SMD excellent component.
Amplifier of WA series also can endure 2Ω Stereo load, bridge 4Ω Load, suit for drive line array speaker system.
|
Model |
WA600 |
WA800 |
WA1200 |
WA2400 |
WA3600 |
WA4800 |
WA7200 |
|
8Ω Stereo Power |
150W |
250W |
400W |
520W |
800W |
1100W |
1300W |
|
4Ω Stereo Power |
225W |
375W |
600W |
780W |
1200W |
1800W |
1950W |
|
2Ω Stereo Power |
270W |
500W |
800W |
1040W |
1600W |
2200W |
2600W |
|
8Ω BTL |
450W |
750W |
1200W |
1560W |
2400W |
3600W |
3900W |
|
4Ω BTL |
540W |
1000W |
1600W |
2080W |
3200W |
4400W |
5000W |
|
Frequency Response |
20Hz-20KHz +0/-0.3dB |
20Hz-20KHz +0/-0.3dB |
20Hz-20KHz +0/-0.3dB |
20Hz-20KHz +0/-0.3dB |
20Hz-20KHz ± 0.5dB |
20Hz-20KHz ± 0.5dB |
20Hz-20KHz ± 0.5dB |
|
THD+N |
< 0.03%@8Ω 1KHz |
< 0.03%@8Ω 1KHz |
< 0.03%@8Ω 1KHz |
< 0.03%@8Ω 1KHz |
< 0.03%@8Ω 1KHz |
< 0.03%@8Ω 1KHz |
< 0.03%@8Ω 1KHz |
|
S/N Ratio |
> 90dB |
> 90dB |
> 95dB |
> 95dB |
> 93dB |
> 93dB |
> 93dB |
|
Slew Ratio |
20V/μ S |
20V/μ S |
30V/μ S |
30V/μ S |
40V/μ S |
44V/μ S |
44V/μ S |
|
Damping Factor |
> 400 |
> 400 |
> 400 |
> 400 |
> 300 |
> 300 |
> 300 |
|
Crosstalk |
> 70dB@8Ω 1KHz |
> 70dB@8Ω 1KHz |
> 70dB@8Ω 1KHz |
> 70dB@8Ω 1KHz |
> 70dB@8Ω 1KHz |
> 70dB@8Ω 1KHz |
> 70dB@8Ω 1KHz |
|
Input Impedance |
20KΩ (Balance)/10KΩ (Unbalance) |
|
|
Input Sensitivity |
0.775V/1.0V/1.4V |
0.775V/1.0V/1.4V |
0.775V/1.0V/1.4V |
0.775V/1.0V/1.4V |
0.775V/1.0V/1.4V |
0.775V/1.0V/1.4V |
0.775V/1.0V/1.4V |
|
Protect |
Overheat short circuits, DC, limit and---softstart, Output relay-Zero Current Switch, Intellctual Clip limiter. |
|
|
Heigh |
2U |
2U |
2U |
2U |
3U |
3U |
3U |
