| Prod Model: |

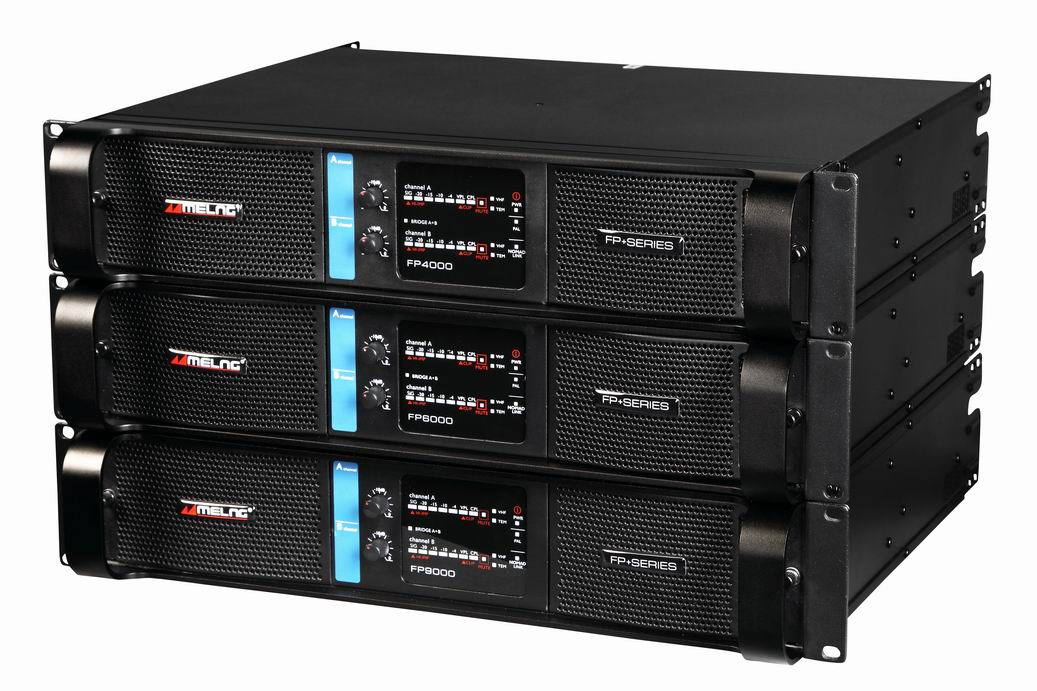

FP14000, FP9000, FP7000, FP4000, FP10000Q, FP6000Q |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| 2u: |
Black |
| Used For: |
Professional |
| Voltage: |
AC 220V |
| Function: |
Post Amplifier |
| Tube Type: |
Transistor Amplifier |
Product Description
Feature
High technolog & energy-saving and environment-friendly amplifier
Follow-up DC-DC converter
2U standard steel machine case, aluminum front
New type red copper heat sink
Super A class power output
SMT & AL production
Collect all advantages of high-technology and audio technology&art
Intellgent temperature control&varlable cooling fan
Light weight only 12KG, supply 14000W power output
|
Specifications |
|
|
|
|
|
|
|
Item No. |
FP14000 |
FP9000 |
FP7000 |
FP4000 |
FP10000Q |
FP6000Q |
|
Channels |
2ch |
2ch |
2ch |
2ch |
4ch |
4ch |
|
Max. Output Power |
|
|
8Ω per ch. (all ch. ' driven) |
2350W |
1600W |
1450W |
800W |
1300W |
625W |
|
4Ω per ch. (all ch. ' driven) |
4400W |
3000W |
2800W |
1600W |
2100W |
1250W |
|
8Ω Bridged per ch. |
8800W |
6000W |
5600W |
3200W |
4200W |
2500W |
|
4Ω Bridged per ch. |
14000W |
9000W |
7000W |
4000W |
5000W |
3000W |
|
Performance with Gain |
35dB VPL: 195V |
35dB VPL: 170V |
35dB VPL: 155V |
35dB VPL: 121V |
35dB VPL: 150V |
35dB VPL: 101V |
|
THD 20Hz~20kHz for 1W |
< 0.1% |
|
THD st 1 kHz and 1 dB below clipping |
< 0.05% |
|
Signal To Noise Ratio |
> 112dBA |
|
Channel Separation(Crosstalk) at 1kHz |
> 70dB |
|
Frequency response(1W@8Ω )+0/-3dB |
2Hz-34.2kHz |
2Hz-34.2kHz |
6.8Hz-34kHz |
2Hz-34.2kHz |
6.8Hz-34kHz |
6.8Hz-34kHz |
|
Input impedance |
20kΩ |
|
Input Common Mode Rejection, CMR |
54dB |
|
Output Impedance @100Hz |
19mΩ |
19mΩ |
19mΩ |
32mΩ |
32mΩ |
32mΩ |
|
Gain and Level |
|
|
|
|
|
|
|
Amplifier gain selectable |
23, 26, 32, 35, 38, 41, 44dB |
|
Default gain |
38dB |
35dB |
35dB |
35dB |
35dB |
35dB |
|
Level adjustment(per ch. ) |
Front-panel potentiometer, 31 position detened from-inf to 0 dB |
|
Input connectors(per. ch) |
3-pin XLR, electronically balanced |
|
Output connectors(per. ch) |
Neutrik Speakon or Binding Posts(must be specified upon order). BP only on FP 14000, FP 13000, FP9000 |
|
Output bridge mode |
A+B-Ch. A is signal input source. A+B, C+D-Ch. ' s Aand C are input source |
|
NomadLink network |
2X RJ45 EtherCon connectors, IN and OUT |
|
Intelligent fans(on/off) |
Yes, depending on presence of output signal |
|
Power and Remote enable |
Individual switches on front-panel |
|
Cooling |
Two fans, front-to-rear airflow, temperature controlled speed |
|
front-panel indicators |
|
|
Common Per channel |
NomadLink network; Power Average Limiter(PAL); Power on Signal present/High-impedance; -20dB, -15dB, -10dB and -4 dB outputsignal; Voltage Peak Limiter(VPL); Current Peak Limiter(CPL). |
|
|
Very High Frequency (VHF) High temperature; Fault; Mute |
|
Dimensions |
W: 483mm(19' ), H: 88mm(2U), Overall D: 396mm(15.6' ), Mounting D: 358mm(14.1' ) |
|
Weight |
12kg(26.4lbs) |
|
Finish |
Black painted steel chassis with black painted steel/aluminum front |
