S-Paul Audio Equipment Factory >> Digital Amplifier Da Series

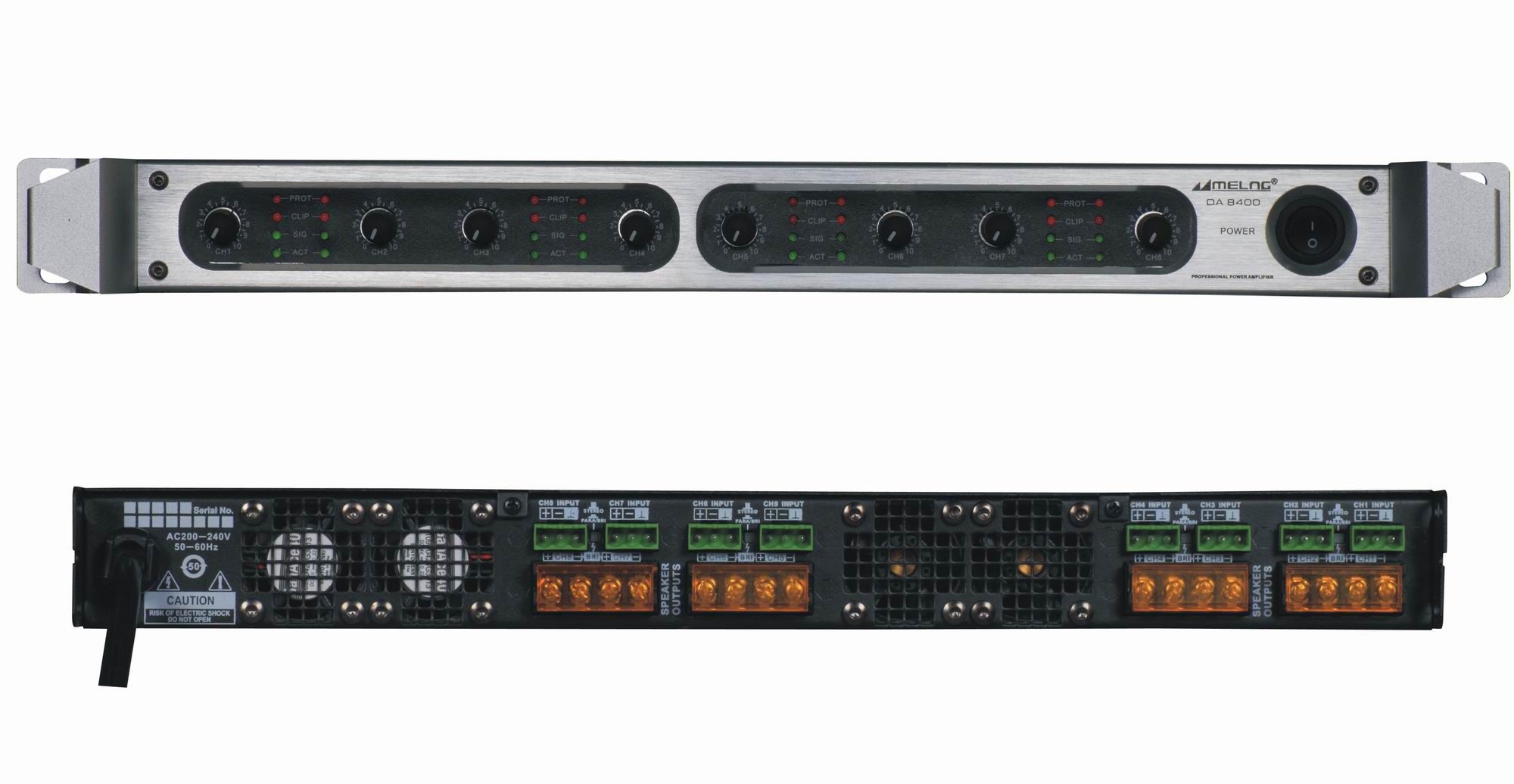

Digital Amplifier Da Series

Digital Amplifier Da Series
Price: Negotiable/Piece
Trade Terms: FOB
Min Order: 10/Piece
Pay Type: L/C,T/T,Western Union
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
1u: Black Chassis+ Silver Panel.
Function: Post Amplifier
Tube Type: Transistor Amplifier
Voltage: AC 220V
Used For: Professional
Conductive Mode: D
Usage: Hi-Fi
Output Number: 2, 4, 8
Sound Channel: 2, 4, 8

Product Description

Feature

The best circuitly, D class, digital one.
With finest panel, very light weight, and very big power.
Has 2 way version, 4 way version, and 8 way version avaialbe.

Models: DA2000, DA3000, DA4000 DA4200 DA4400 DA8200 DA8400
Model   DA2000 DA3000 DA4000 DA4200 DA4400 DA8200 DA8400
CHANNEL 2 2 2 4 4 8 8
8ΩStereo Output Power 180W 300W 400W 180W 400W 180W 400W
4ΩStereo Output  Power 300W 510W 650W 300W 650W 300W 650W
2ΩStereo Output  Power 550W 900W 1150W 500W 1100W 500W 1100W
8ΩBridge Output Power 600W 1000W 1320W 600W 1320W 600W 1320W
4ΩBridge Output  Power 1000W 1650W 2200W 970W 2160W 950W 2120W
THD-N(20HZ-20KHZ) <0.1% <0.1% <0.1% <0.1% <0.1% <0.1% <0.1%
Output Circuitly   D class  D class D class   D class   D class    D class    D class
Cross Talk >70dB >70dB >70dB >70dB >70dB >70dB >70dB
 Frequency Response 10Hz-20KHz 10Hz-20KHz 10Hz-20KHz 10Hz-20KHz 10Hz-20KHz 10Hz-20KHz 10Hz-20KHz
 Input Sensitivity (8Ω) 0.775V 0.775V 0.775V 0.775V 0.775V 0.775V 0.775V
 Input Impedance 20KΩbalance/10KΩ unbalance 20KΩbalance/11KΩ unbalance 20KΩbalance/12KΩ unbalance 20KΩbalance/13KΩ unbalance 20KΩbalance/14KΩ unbalance 20KΩbalance/15KΩ unbalance 20KΩbalance/16KΩ unbalance
Damping Factor >350 >350 >350 >350 >350 >350 >350
Voltage Gain(rated power@8Ω) 35dB 38dB 39dB 41dB 42dB 43dB 44dB
 Signal to Noise Ratio >95dB >95dB >95dB >95dB >95dB >95dB >95dB
Cooling Variable speed fans, front-to-rear airflow
Connectors Input: Phonix socket(2EDGVC-3),  Output: binding post(HB9500)
Controls Front: AC switch, Ch1 and CH2 gain control; rear panel: bridge switch;                                             Front: AC switch, Ch1-CH4 gain control; rear panel: bridge switch;                                              Front: AC switch, Ch1- CH8 gain control; rear panel: bridge switch;
Indicators Front: ACTIVE-green Led, SIGNAL-green LED, CLIP-orange LED, PROT-red LED
Amplifier Protection Short circuit, overheat, over load, clip limiter, DC, soft start, relay zero current switch, intelligent output relay (contactless noise), sound mounting, ultrasonic and Rf protection
Dimensions 483mm*435mm*45mm
Power Requirements ~220V/50-60HZ
Enping S-paul Audio Factory specializes in producing amplifiers, sound-boxes, tune-registers and other facilities of audio. We are located in the famed city (Enping) next to the Pearl River, and very close to Guangzhou, Hk, Macao and the 325 Nation Highway. The traffic is very convenient.
We own advanced technology, first-rated producing facilities and reliant quality guarantee. During the recent years, we invented a loads of new audio products according to the trends of market, which are with high technology and hot sold. Our products are created by special technology. From the raw materials to the made ones, each links are through strict quality inspection to ensure the pretty figures, outstanding performance, and reasonable price of products. Our brands are always dominant and big sold wherever home and abroad and earned the high praises among the consumers.
Our Ideal is " Perfect products, reasonable prices, wonderful service" Welcome all the clients to enter business with us wherever home and abroad.
