| Prod Model: |
MAP-1270 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Line And Bus Input Selectable: |
12channel Rotary Gain Control Knobs |
| Input Level Limit: |
Stereo/Beridge Mono Output |
| 4 Ohm/70V Or 100V Output Selectable: |
Rack Mountable |
| Function: |
Amplifier Combined |
| Conductive Mode: |
D |
| Tube Type: |
IC Amplifier |
| Usage: |
Professional, Commercial, School, Station |
| Voltage: |
Switchable AC 115V/60Hz or 230/50Hz |
| Element Number: |
Stereo/Bridge Mono Output |
| Output Number: |
4ohm/70V or 100V Output Selectable |
| Used For: |
Professional, Commercial, School, Station |
| Sound Channel: |
6 Zone/12channel |
Product Description

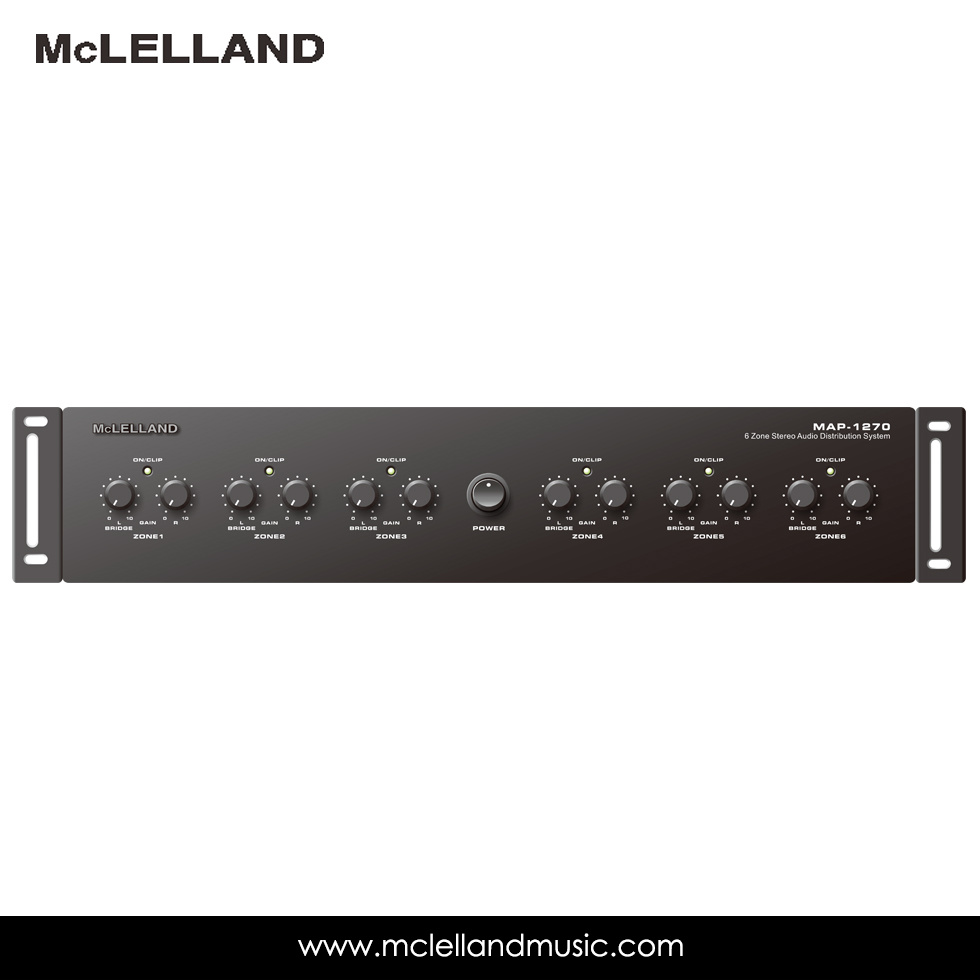

Power Amplifier with 6 Zone 12 Channels(MAP-1270)
Feature:
High efficiency more than 85% (class D) amplification
50W X 2 @ 4 Ohm output power per zone
4 Ohms / 70 V or 100V output selectable
Stereo/Bridge mono output
Line and Bus input selectable
Auto power off function dedicated to disable the amplifier when there is no signal from any
Bus input gives you the flexibility to assign bus channels to any or all of the amplifier
Wired DC Remote volume for each Zone
Input level limit
2 Channel rotary gain control knobs
LEDs for 6 ones Power On and Clip
Rack mountable
S/N | >85dB A WTD |
| THD | <0.1% |
| Frequency Response | 60Hz-20KHz @ 4ohms |
| Input Impedance | >47 K Ohm |
| Input Sensitivity | 250 mv |
| Power Supply | AC115V/60Hz, 230V/50Hz |
| Output Connection | Terminal Block |
| Dimension | 430W x 89H x 416D mm |
Mansion Industry Co., Ltd. is a professional audio manufacturer, which includes R&D, design, sales and services department, was established in 1985, at the following address 5F, NO. 6, Szu-Wei Lane, Cheng Road, Hsin-Tien City, Taipei, Taiwan, R. O. C.
Our main products are Equalizers, Crossovers, Power Amplifiers, Video Signal Solution, MIDI Controller, USB/Firewire Audio Interface, Mixers, Digital Effect Processors, Speaker, Microphones and Home Installation Audio products.
We promote our own products all over the world, also we welcome the OEM cooperation. To keep the quality be perfect and satisfy customer's requirements is our company's top target.
At present, we own more than 300 employees. Among them, engineers and technical personnel fifty six people. The high-level employees group and advanced technique help to produce the products with competitive.
Mansion would like to set up a faithful partner relationship with every friend and provide the sincere service. We have been move a new factory about 16000 SQM located within the town of Shenzhen.
