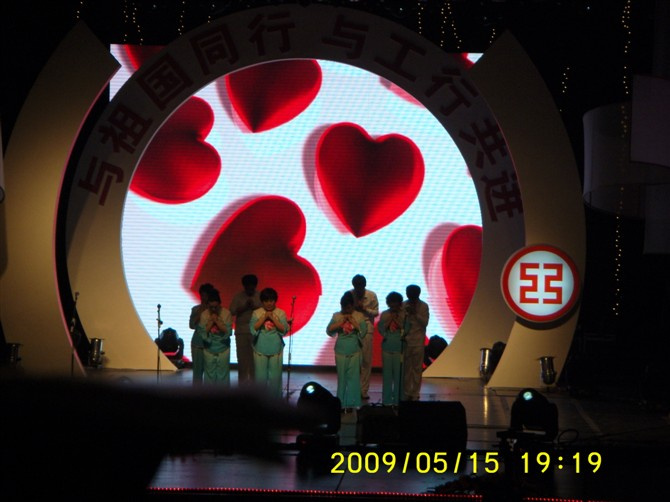

pH7.62 SMD 3 In1stage LED Display
| Price: |
Negotiable |
| Trade Terms: |
FOB |
| Min Order: |
5/Square Meter |
| Pay Type: |
L/C,T/T |
| Prod Model: |
PH7.62 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Usage: |
Indoor |
| Tube Chip Color: |
Full Color |
| Display Function: |
Text, Graphic, and Video |
| Certification: |
CE, RoHS, UL |
Product Description
1. Best quality/price ratio
2. Good component & structure
3. CE & RoHS Certificated
4. 2 years warrant
|
ITEM |
PH7.62 |
|
Pixel Pitch(mm) |
7.62mm |
|
Constitution of Pixel |
1R1G1B |
|
Scan Mode |
1/8 |
|
Brightness (cd/m 2 ) |
> 1700cd |
|
Average Power (W/m 2 ) |
480W |
|
Max Power (W/m 2 ) |
1200W |
|
Pixel of Module (dot) |
32× 16 |
|
Module Size(mm) |
244mm× 122mm |
|
Pixel Density (dots/m 2 ) |
17, 222dots |
|
Viewing Distance(m) |
7m-50m |
|
Weight (kg/m 2 ) |
45kg |
|
LED Drivemode |
Constant Current |
|
Gray scale |
12-16bit |
|
Refresh Rate |
More than 300Hz |
|
Frame-changing Frequency |
More than 60Hz |
|
Display Interface |
VAG+DVI display card |
|
Display Mode |
640× 480, 800× 600, 1024× 768, 1280× 960… 1920× 1200, 2048× 640 |
|
Control Mode |
Point to Point connect between LED display and Computer |
|
Transmission Distance |
CAT-5E≤ 130m/Multi-mode Optical Fiber≤ 500m / Single Mode Optical Fiber≤ 10km |
|
Video Acceptable |
TV, VCD, DVD |
|
Continuous Working Hours |
> 1000 Hours |
|
Using Life |
100, 000 Hours |
|
MTBF |
> 10, 000 Hours |
|
IP Grade |
Indoor IP23 |
|
Working Temperature |
-10to +45 Celsius degree |
|
Working Humidity |
Indoor 10%to 60% |
Shenzhen Leder Electronics Co., Ltd. Locates in E Building, the new world of Science and Technology Industrial Park, XiaShiJia, Gongming Street Guangming New Area, ShenZhen, Guangdong, China. LEDER is the high & new technology enterprise specializing in the Research & Development of LED displaying products, production, sales, engineering service, etc.
Based on more than 10 years of outstanding development, LEDER becomes one of the most advanced LED display manufacturers in China and also one of the biggest professional LED display manufacturers in Southern China.
With modern workshop for electronic processing, assembling, adjusting and aging, LEDER ensures the production capability of 20000 m2 LED display for all types yearly, and is able to provide one package service for our clients from consultant, production, installation, adjustment & test, training to after service.
LEDER positively practices the environmental protection and energy saving. In 2008, LEDER firstly launched OUTDOOR SMD (5050, 5060) 3IN1 FULL COLOR LED DISPLAY. Solved 3 difficult problems on outdoor SMD LED Displays successfully - brightness, heat extraction and water proofing, and made-up deficiencies of the traditional LED Display of small viewing angle, module's nonuniform color, large power consumption, overweight, and so on. In 2009, LEDER brought out LED lighting products: Flexible LED video strip, LED flexible strip, LED video pels light, LED module^^, which attracts batches eyes and gains very good comment from experts and audients.
Since the foundation, LEDER has been insisting the tenet of "Build first-class brand, win with superior quality and service", and has actively conducted the ISO 9001 system, its products have been awarded certificates such as CE, RoHS. Besides owning a few of independent core technology and patents, LEDER firstly built up the enterprise standard, which effectively promotes the healthy development of Chinese LED display industry. Successively, LEDER undertakes batches of high quality projects in domestic and oversea. Now LEDER has jumped to be the biggest professional LED display manufacturer in ShenZhen, and has set up its leading position in optoelectronic industry, and to be as sponsors at the 16th Asian Games.
LEDER's General Manager has been directly working on the management of R&D, production, engineering, and after-service for more than 15 years. He has experienced the stage of starting, developing and maturing of China's LED Display industry. He would like to cooperate with all customers, leading all of LEDER staffs, to witness the prosperity of LEDER and LED Display industry together.
"Share our successful happiness with our clients" is the business concept we always keep. With your continuing care and support, we, together enter to LED products' energy saving, colorful, and bright future.
