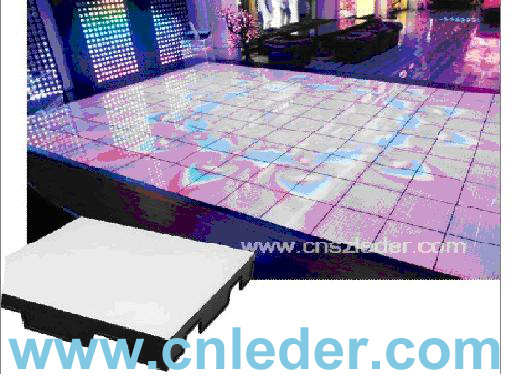

pH16 Stage Dance LED Display
| Price: |
Negotiable/Square Meter |
| Trade Terms: |
FOB |
| Min Order: |
5/Square Meter |
| Pay Type: |
T/T |
| Prod Model: |
PH16 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Pixel Pitch: |
16mm |
| Lifetime: |
≥100000 Hours |
| Control Channel: |
31CH |
| Base Material: |
Aluminum |
| LED Quantity: |
2048PCS |
| Pixel Configuration: |
1R1G1B |
| Certification: |
CE |
| IP Rating: |
IP45 |
Product Description
pH16 Stage Dance LED Display:
1. Adopting fully-sealed structure design, it makes cabinet strong and light, easy to assemble and move.
2. Adopting strong stable, anti-skidding, transparent aluminum material, highly wear-resisting resin mask, we can directly step on the screen. Good shockproof, bearing heavy weight more than 1000kgs, cars can go through it.
3. One card controls one cabinet, 16bit grey level processing, with DOT by DOT correction, makes clear and realistic picture,
4. Low price, excellent quality. Apply to car show, stage, top-end hall, KTV bar, clubs and other entertainments. Play colorful HD video, create splendid atmosphere, and create excellent effection.
|
Pixel Configuration |
|
Pixel configuration |
Every pixel made by 1R1G1B SMD 3in1 |
LED parameters |
R: λ d(620-625nm) IV: (170-220mcd) |
|
G: λ d(520-525nm) IV: (640-830mcd) |
|
B: λ d(465-470nm) IV: (100-130mcd) |
|
Main Parameters |
|
No |
Item |
Parameters |
|
1 |
Product no |
LD-P16 |
|
2 |
Pixel Pitch(mm) |
16 |
|
3 |
Pixel Density(Dot/) |
3906(Virtual) |
|
4 |
Module Size(mm) |
512*256 |
|
5 |
Module Resolution(Dot) |
32*16 |
|
6 |
Module Quantity(Entries) |
2 |
|
7 |
Cabinet Size(Mm) |
512(W)*512(H) |
|
8 |
Resolution/Cabinet(Dot) |
32*32 |
|
9 |
Brightness(CD/) |
≥ 1000 |
|
10 |
Viewing Angle(Deg) |
145/120 |
|
11 |
Best Viewing distance(m) |
16 |
|
12 |
Weight(kg/) |
15KG |
|
13 |
Gray Level |
8192 |
|
14 |
Working Voltage |
110V-220 V± 15% 47-63HZ |
|
15 |
Scanning Mode |
1/8(Static state scan) |
|
16 |
Control Mode |
Constant Current Driver |
|
17 |
Protection Level(Ip) |
IP45 |
|
18 |
Power consumption(W/) |
Max: 400 Average: 200 |
|
19 |
Environment temperature |
-20-60 |
|
20 |
Working Environment Humidity |
10%-90% |
|
21 |
product life span(h) |
100000(h) |
|
22 |
Display Mode |
1024× 768 1280× 1024 |
|
23 |
Display Color |
8192*8192*8192 |
|
24 |
Refresh Frequency |
> 1000HZ |
|
25 |
frame frequency |
60HZ |
|
26 |
Cabinet thickness |
60mm |
