| Prod Model: |
PH5 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Pixel Configuration: |
1R,1G,1B |
| Pixel Pitch: |
5mm |
| Scanning Mode: |
Static Scan |
| Pixel Density: |
40,000 dots / m² |
| Display Function: |
Video Display |
| Tube Chip Color: |
Full Color |
| IP Rating: |
IP43 |
| System Operating Platform: |
WIN XP |
| Certification: |
CE |
| Application: |
Stage Performance |
Product Description

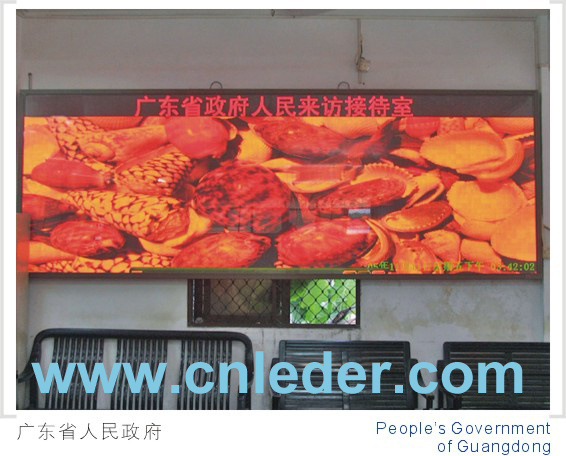

Indoor LED 5mm Display
NO. pixels consistation Title pH5 SMD 3 in 1
1 Item of lamp SMD
Spread pattern
2 DOT Pitch(Pixel) 5mm
3 Pixel Color 1R1G1B
4 Color consistation Primary colors(1red, 1pure green, 1pure blue)
5 Physical density(Point/) 40000point/ Installation environment Indoor
8 Module Module size 160W× 160H(mm)
9 Module pixel dentisy 32W× 32 H(DOT)
Physical pixel resolution 1024 DOT
10 Cabinet weight ≤ 45kg/
11 Malfunction DOT rate 5<100000(dispersion)
12 Screen crack Same Crack <0.9
13 Video-distance 3-30m
14 Reviewing angle Horizontal 120° , Vertical 140°
15 Surface flatness largest difference≤ ± 0.9
16 Black surface screen same blackness, without glisten
17 homogeneity Module luminance uniform, homogeneity amount to 98%
18 PCB layout Resonable layout, standard and beautiful line
19 Environment temperature _10° C~45° C
20 Raletive humidity 25%~95%
21 Panel thickness 13cm
22 Power request Input voltage(AC) 220V, ± 10%
23 Leakage current to ground <3mA
24 Input frequency 50Hz
25 Input Rated Power 800W/26 Input Peak Power ≤ 2000W/
27 Control system Operating System of Control WIN2000\XP Computer+ Control Software and Hardware + Play Software and Hardware
28 Control mode Synchronization with Computer VGA(Display Synchronization)
29 Control system DVI Graphics Card+Full-Color control Card+super 5 wire(or fiber) transmission
30 Input mode Computer and other peripheral equipment; PAL/NTSC/SECAM, S-Video; VGA; RGB; HDVD; Composite Video, and SDI etc.
31 Main technologyreference LED driver Constant current driver
32 Computer display mode 640× 480, 800× 600, 1024× 768
33 Scan speed >140Hz
34 Refreshing frequency >400Hz
35 Gray level/color Level 8192\ 68, 266, 000, 000
36 Full-Screen luminance >2500CD/
37 Brightness Level Level 100
38 Brightness's adjustment Level 7
39 Life-Span Over 100000 hours
40 Display content Video DVD \VCD\ TV, Pictures, Words, Flash, etc.
41 MTBF ≥ 10000 hours
42 Interface Standard Ethemer internet interface, communication adopt RS-422
43 Communication medium and command range Multimode fiber<500m, monomode fiber transmission < 30km, type 5 wire < 100m
44 Protection technology Against moisture, dust, decay, static electronity, lighting, shock, and the protection fuction of over current, short circuit, over voltage and under voltage.
45 Software The common video software of Leder
*Specification subjeted to change without prior notice
| NO. |
pixels consistation |
Title |
PH5 SMD 3 in 1 |
| 1 |
Item of lamp |
SMD |
| Spread pattern |
|
| 2 |
Dot Pitch(Pixel) |
5mm |
| 3 |
Pixel Color |
1R1G1B |
| 4 |
Color consistation |
Primary colors(1red,1pure green,1pure blue) |
| 5 |
Physical density(Point/) |
40000point |
| |
Installation environment |
Indoor |
| 8 |
Module |
Module size |
160W×160H(mm) |
| 9 |
Module pixel dentisy |
32W×32 H(dot) |
| Physical pixel resolution |
1024 dot |
| 10 |
Cabinet weight |
≤45kg |
| 11 |
Malfunction dot rate |
5<100000(dispersion) |
| 12 |
Screen crack |
Same Crack <0.9 |
| 13 |
Video-distance |
3-30m |
| 14 |
Reviewing angle |
Horizontal 120,Vertical 140 |
| 15 |
Surface flatness |
largest difference≤±0.9 |
| 16 |
Black surface screen |
same blackness,without glisten |
| 17 |
homogeneity |
Module luminance uniform,homogeneity amount to 98% |
| 18 |
PCB layout |
Resonable layout,standard and beautiful line |
| 19 |
Environment temperature |
—10-45 |
| 20 |
Raletive humidity |
25%~95% |
| 21 |
Panel thickness |
13cm |
| 22 |
Power request |
Input voltage(AC) |
220V, ±10% |
| 23 |
Leakage current to ground |
<3mA |
| 24 |
Input frequency |
50HZ |
| 25 |
Input Rated Power |
800W/ |
| 26 |
Input Peak Power |
≤2000W/ |
| 27 |
Control system |
Operating System of Control |
WIN2000\\XP Computer+ Control Software and Hardware + Play Software and Hardware |
| 28 |
Control mode |
Synchronization with Computer VGADisplay (Synchronization) |
| 29 |
Control system |
DVI Graphics Card+Full-Color control Card+super 5 wire(or fiber) transmission |
| 30 |
Input mode |
Computer and other peripheral equipment ;PAL/NTSC/SECAM, S-Video;VGA;RGB;HDVD;Composite Video,and SDI etc. |
| 31 |
Main technologyreference |
LED driver |
Constant current driver |
| 32 |
Computer display mode |
640×480,800×600,1024×768 |
| 33 |
Scan speed |
>140hz |
| 34 |
Refreshing frequency |
>400hz |
| 35 |
Gray level/color |
Level 8192\\ 68,266,000,000 |
| 36 |
Full-Screen luminance |
>2500cd/ |
| 37 |
Brightness Level |
Level 100 |
| 38 |
Brightness's adjustment |
Level 7 |
| 39 |
Life-Span |
Over 100000 hours |
| 40 |
Display content |
Video DVD VCD TV,Pictures,Words,Flash,etc. |
| 41 |
MTBF |
≥10000 hours |
| 42 |
Interface |
Standard Ethemer internet interface ,communication adopt RS-422 |
| 43 |
Communication medium and command range |
Multimode fiber500m,monomode fiber transmission < 30km,type 5 wire < 100m |
| 44 |
Protection technology |
Against moisture,dust,decay, static electronity,lighting,shock,and the protection fuction of over current, short circuit,over voltage and under voltage. |
| 45 |
Software |
The common video software of Leder |
| *Specification subjeted to change without prior notice |
