Shenzhen Leder Electronics Co., Ltd. >> PH6 Indoor LED Display

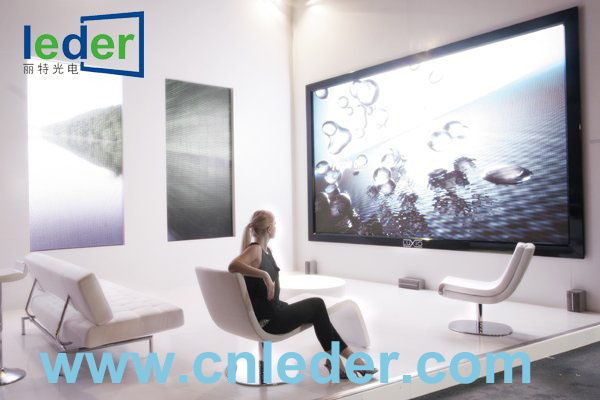

PH6 Indoor LED Display

PH6 Indoor LED Display
Price: Negotiable/Square Meter
Trade Terms: FOB
Min Order: 5/Square Meter
Pay Type: T/T
Prod Model: PH6
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Pixel Configuration: 1R,1G,1B
Pixel Pitch: 6mm
Scanning Mode: 1/8 Scan
Display Function: Video Display
Tube Chip Color: Full Color
IP Rating: IP43
System Operating Platform: WIN XP
Certification: CE
Application: Stage Performance
Pixel Density: 3906 Dots/Sqm

Product Description

pH6 Indoor LED Display Manufacturer:

Best competitive price and high quality
Best equality
High consistency
Big viewing angle.
ITEM P6
Pixel Pitch(mm) 6mm
Constitution of Pixel 1R1G1B
Scan Mode 1/8
Brightness (cd/m 2 ) > 2500cd
Average Power (W/m 2 ) 780W
Max Power (W/m 2 ) 1950W
Pixel of Module (dot) 32× 16
Module Size(mm) 192mm× 96mm
Pixel Density (dots/m 2 ) 27, 777dots
Viewing Distance(m) 6m-50m
Weight (kg/m 2 ) 50kg
LED Drivemode Constant Current
Gray scale 12-16bit
Refresh Rate 1, 300-10, 000Hz
Frame-changing Frequency More than 60Hz
Display Interface VAG+DVI display card
Display Mode 640× 480, 800× 600, 1024× 768, 1280× 960… 1920× 1200, 2048× 640
Control Mode Point to Point connect between LED display and Computer
Transmission Distance CAT-5E≤ 130m/Multi-mode Optical Fiber≤ 500m  / Single Mode Optical Fiber≤ 10km
Video Acceptable TV, VCD, DVD
Continuous Working Hours > 72 Hours
Using Life 100, 000  Hours
MTBF > 10, 000 Hours
IP Grade In-door IP43
Working Temperature -35 to +60
Working Humidity Indoor 10% to 60%
Shenzhen Leder Electronics Co., Ltd. Locates in E Building, the new world of Science and Technology Industrial Park, XiaShiJia, Gongming Street Guangming New Area, ShenZhen, Guangdong, China. LEDER is the high & new technology enterprise specializing in the Research & Development of LED displaying products, production, sales, engineering service, etc.

Based on more than 10 years of outstanding development, LEDER becomes one of the most advanced LED display manufacturers in China and also one of the biggest professional LED display manufacturers in Southern China.

With modern workshop for electronic processing, assembling, adjusting and aging, LEDER ensures the production capability of 20000 m2 LED display for all types yearly, and is able to provide one package service for our clients from consultant, production, installation, adjustment & test, training to after service.

LEDER positively practices the environmental protection and energy saving. In 2008, LEDER firstly launched OUTDOOR SMD (5050, 5060) 3IN1 FULL COLOR LED DISPLAY. Solved 3 difficult problems on outdoor SMD LED Displays successfully - brightness, heat extraction and water proofing, and made-up deficiencies of the traditional LED Display of small viewing angle, module's nonuniform color, large power consumption, overweight, and so on. In 2009, LEDER brought out LED lighting products: Flexible LED video strip, LED flexible strip, LED video pels light, LED module^^, which attracts batches eyes and gains very good comment from experts and audients.

Since the foundation, LEDER has been insisting the tenet of "Build first-class brand, win with superior quality and service", and has actively conducted the ISO 9001 system, its products have been awarded certificates such as CE, RoHS. Besides owning a few of independent core technology and patents, LEDER firstly built up the enterprise standard, which effectively promotes the healthy development of Chinese LED display industry. Successively, LEDER undertakes batches of high quality projects in domestic and oversea. Now LEDER has jumped to be the biggest professional LED display manufacturer in ShenZhen, and has set up its leading position in optoelectronic industry, and to be as sponsors at the 16th Asian Games.

LEDER's General Manager has been directly working on the management of R&D, production, engineering, and after-service for more than 15 years. He has experienced the stage of starting, developing and maturing of China's LED Display industry. He would like to cooperate with all customers, leading all of LEDER staffs, to witness the prosperity of LEDER and LED Display industry together.

"Share our successful happiness with our clients" is the business concept we always keep. With your continuing care and support, we, together enter to LED products' energy saving, colorful, and bright future.
