| Prod Model: |
P5 SMD outdoor full color led display |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| P5 SMD2727 Outdoor LED Display: |
Module Size 160mm X 160mm |
| Good Heat Emission Capability: |
Guarantee: 2year with Parts |
| WiFi ,3G /4G Intelligent Management Core: |
IP67 |
| Cabinet Size 800 Mm X 1600mx115mm: |
Screen Size 800mm X 1280mm |
| Display Type: |
LED Video Display |
| Tube Chip Color: |
Full Color |
| IP Rating: |
IP67 |
| Pixel Configuration: |
1R, 1G, 1B |
| Certification: |
CCC |
| Display Function: |
Video Display |
| Application: |
Advertising |
| Scanning Mode: |
1/8 Scan |
| Pixel Pitch: |
5mm |
| Pixel Density: |
27777 |
Product Description

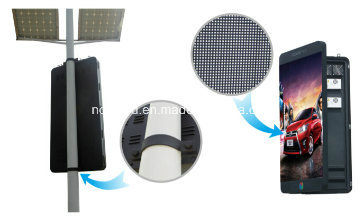

Poster LED Display Application:
Outdoor advertising, Shopping mall, Street light pole, Pedestrian street
Detail specification Outdoor Poster LED Display
| Item | Outdoor Poster LED Display |
| Pixel Pitch: | 5mm |
| Pixel Density: | 27777dot/m2 |
| Brightness: | ≥5000CD/m2 |
| LED Configuration: | SMD2727 |
| Viewing Angle | 120 |
| Refresh Rate: | 960HZ |
| IP Rating(F/B): | IP65 |
| Cabinet size: | 800X1600mm |
| LED Display Size | 800X1280mm |
| Environmental: | Outdoor |
| Cabinet weight: | 65kg |
| Operating temperature | -20ºC to +60ºC |
| Lifetime | 100,000 hours |
Wifi , 3G /4G intelligent management core modules inside, it can change advertisement any place , any time .
With the best LED industrial waterproof and ultraviolet-proof SMD 3 in 1 technology to make a super wide viewing angle and a better surface evenness and stability.
RGB deep gray processing to show any color.
Support point correction function, ensure the consistency of the color and the brightness in the process of use.
Inner fixed reinforcement plate, tensile and shockproof, auto heat dissipation, make the operating life 10 years.
Accurate, shortcut, flexile installation, can be applied to any different installation environment.
With the protection rating of IP65, face any bad weather.
Complete series, customized to satiny any requirements of customers.
With the professional aviation plug as the connectors ensure the quality
and safety.
With the high quality raw material, mature process and scale production,
the quality is ensured.
