| Prod Model: |
P10 led display |
| Module Size: |
320*160 |
| Cabinet Size: |
640*640 |
| Cabinet Material: |
Iron or Aluminum |
| Brightness: |
More Than 5000 CD/Sqm |
| Best Viewing Distance: |
10-120 M |
| Packing Manner: |
Wooden Case/Flight Case |
| The Way Of Fix Installation: |
Fix Installation |
| Warranty: |
Two Years |
| Tube Chip Color: |
Full Color |
| IP Rating: |
IP65 |
| Pixel Configuration: |
1R, 1G, 1B |
| Display Function: |
Video Display |
| Average Power Consumption: |
220W / m² |
| Scanning Mode: |
1/4 Scan |
| Display Type: |
LED Video Display |
| Application: |
Advertising |
| Certification: |
CCC |
| Pixel Pitch: |
8mm |
| Pixel Density: |
15,625 DOT /Sqm |
Product Description
P8 SMD3535 outdoor full color led display installation

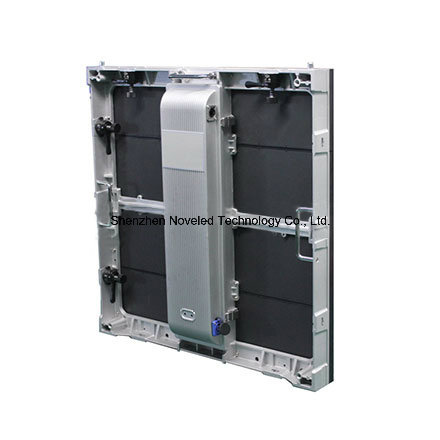

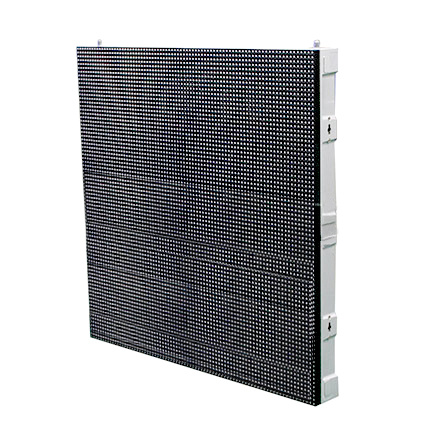

Die cast Rental led display 640 x 640 mm cabinet
Application:

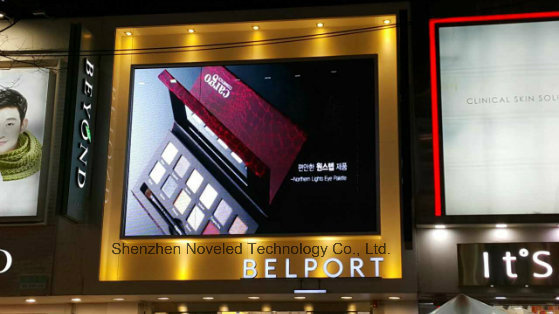

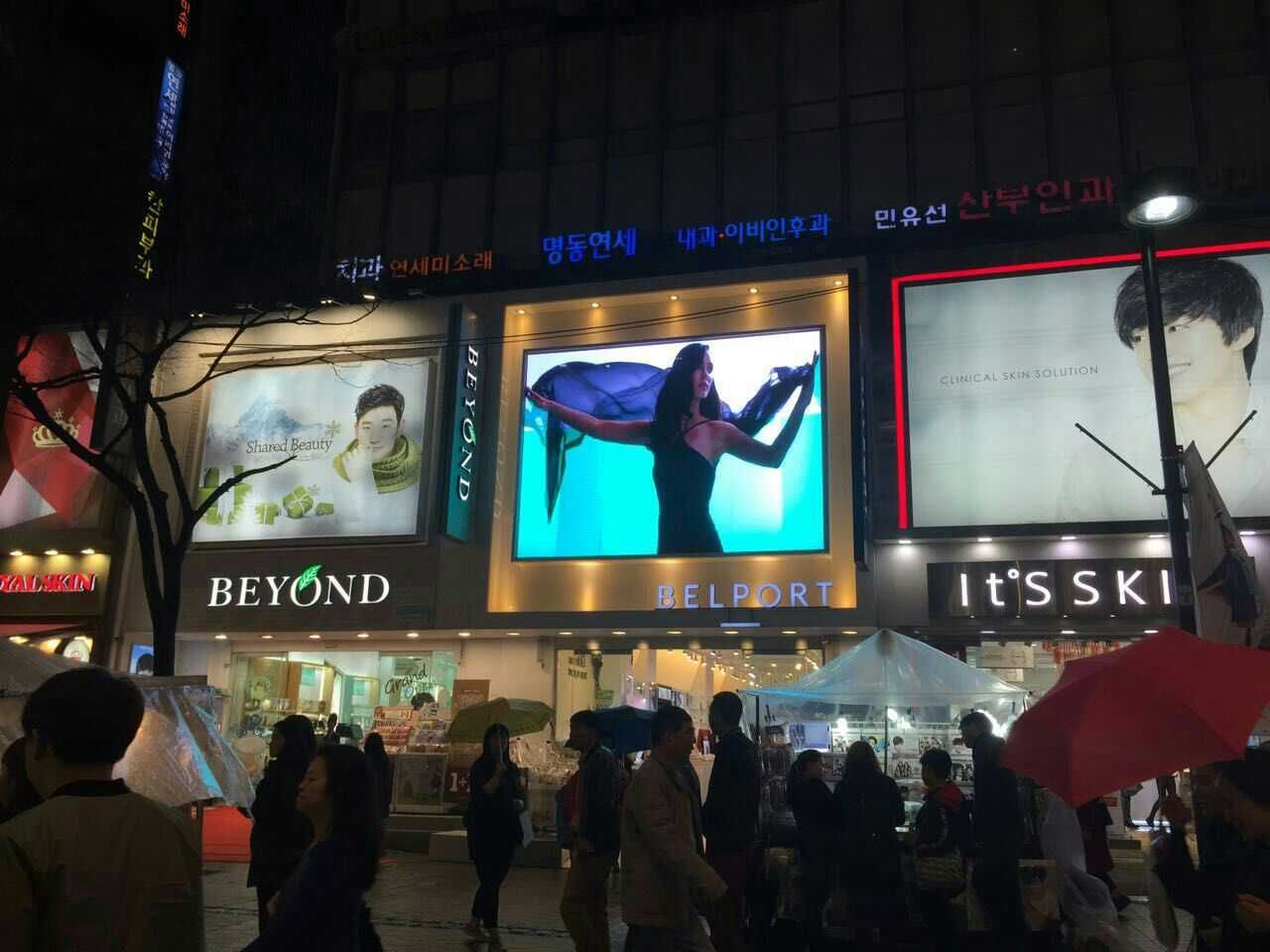

Fix Installation Outdoor LED Displays are widly used in air port ,wharf,station,culture square,stadium,hotel,traffic,party etc.
Export Markets: South America,North America,Oceania,Western Europe,Mid East,Southeast Asia,Africa,Eastern Asia etc.
| Parameters | Outdoor Die-casting LED Display Series ( 640 MM X 640MM ) |
| Pixel Pitch (mm) | 6.67mm | 8mm | 10mm | 10mm |
| Pixel density(pix/m2) | 22545 | 15625 | 10000 | 10000 |
| LED Type | 3535 | 3535 | 3535 | Dip346 |
| Viewing Angle | X,Y140° | X,Y140° | X,Y140° |
| Brightness(nits) | ≥5000 | ≥5000 | ≥5000 |
| Drive Method | 1/8 | 1/4 | 1/4 |
| Color Depth | 65536 |
| Refresh Rate(Hz) | 1920 | 1920 | 1920 |
| Module Size (mm) | 320×160×16 |
| Cabinet Size(mm) | 640×640×80 |
| Cabinet Material | aluminum |
| Cabinet weight(kg) | 12 | 17 | 17 |
| Voltage | 200-240V |
| Average.power(W/m2) | 230 | 230 | 230 |
| Max.power (W/m2) | 700 | 700 | 700 |
| IP Grade | IP65/IP54 |
| Operating temperature/humidity | temperature:-20ºC~ 50ºC humidity:10~90%RH |
| Storage temperature/ humidity | temperature:-40ºC~ 60ºC humidity:10~90%RH |
| Lifetime(h) | ≥50000 |
| Compliant Standard | CCC(CE)Rosh |
P8 Outdoor Rental LED Display Features:
1.Use SMD technology to make the LED display have good video effect.
2.Synchronously adjust the brightness and color to make the true and exquisite image.
3.High contrast, high refresh rate make the image without any delay, trailing smear.
4.Compatible to many signal sources such as AV, S-Video, DVI, VGA, YPbPr, HDMI,SDI,DP etc.
5.Special wooden Case package protect the whole screen system.
6.PCB patent technology, the most stable signal transmission technology in the world.
7.Combine perfect design and stage of the art technology for united cabinet screen with simple appearance, compact strcture, stable performance
8.good quality makes sure the products have long life span
Our service
1.Your inquiry related to our products or price will be replied in 24hrs
2.Protection of your sales area,ideas of design and all your private information
3.Top quality+reasonable price+responsible after service=successful &win
Shenzhen Noveled Technology Co., Ltd ( Noveled ) is a subsidiary of Noveled Group Co, Ltd...Noveled is a national level and high & new technology enterprise which specialize in designing, researching, manufacturing and selling all kinds of LED displays. & LED lighting...
With several years of development, NOVELED own its factory workshop area about 2, 000sqm, professional clean room, Siemens high-speed placement machine, automatic plug Universal, computer intelligence environmentally friendly lead large wave soldering, reflow (8 for 8 microcirculation heat treatment technology), Intelligent glue large stroke machine., monthly capacity is 1000sqm We are an ISO 9001: 2000 company, CE certified, export licence holders. We have the honor to work for hundereds of customers in over 400 cities of 33 provinces in China, and we also have built long-term business relationship with the customers all over the world, for example, PCS Sound in Austria, Screen world in Korea, Mega LED in Turkey, Internacionmidia in Brazil and so on.
NOVELED products widely used in outdoor advertising, cultural and recreational activity, stadium, stage background rental, With its full color LED displays advantages, from the design, productions, installation to the maintenance, Use of comprehensive integration solutions, effectively reduce the overall cost for customers, so as to create more value for customers.
We adhere to the "customer first, quality first, reputation first, " as operating principle. Our assurance is to provide our customers best products with high quality and most reasonable prices above your level of satisfaction.
