| Prod Model: |
P8 mm outdoor led display |
| Module Size: |
320*160 |
| Cabinet Size: |
640*640 |
| Cabinet Material: |
Iron or Aluminum |
| Brightness: |
More Than 5000 CD/Sqm |
| Best Viewing Distance: |
10-120 M |
| Packing Manner: |
Wooden Case/Flight Case |
| The Way Of Fix Installation: |
Fix Installation |
| Warranty: |
Two Years |
| Tube Chip Color: |
Full Color |
| IP Rating: |
IP65 |
| Pixel Configuration: |
1R, 1G, 1B |
| Display Function: |
Video Display |
| Average Power Consumption: |
220W / m² |
| Scanning Mode: |
1/4 Scan |
| Display Type: |
LED Video Display |
| Application: |
Advertising |
| Certification: |
CCC |
| Pixel Pitch: |
8mm |
| Pixel Density: |
15,625 DOT /Sqm |
Product Description
Fix Installation LED Display used Outdoor Series: cabinet view
Application:

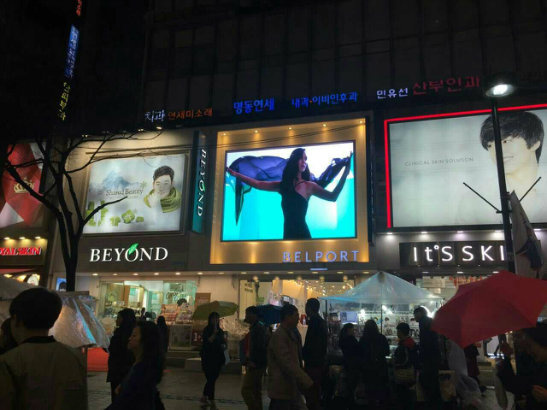

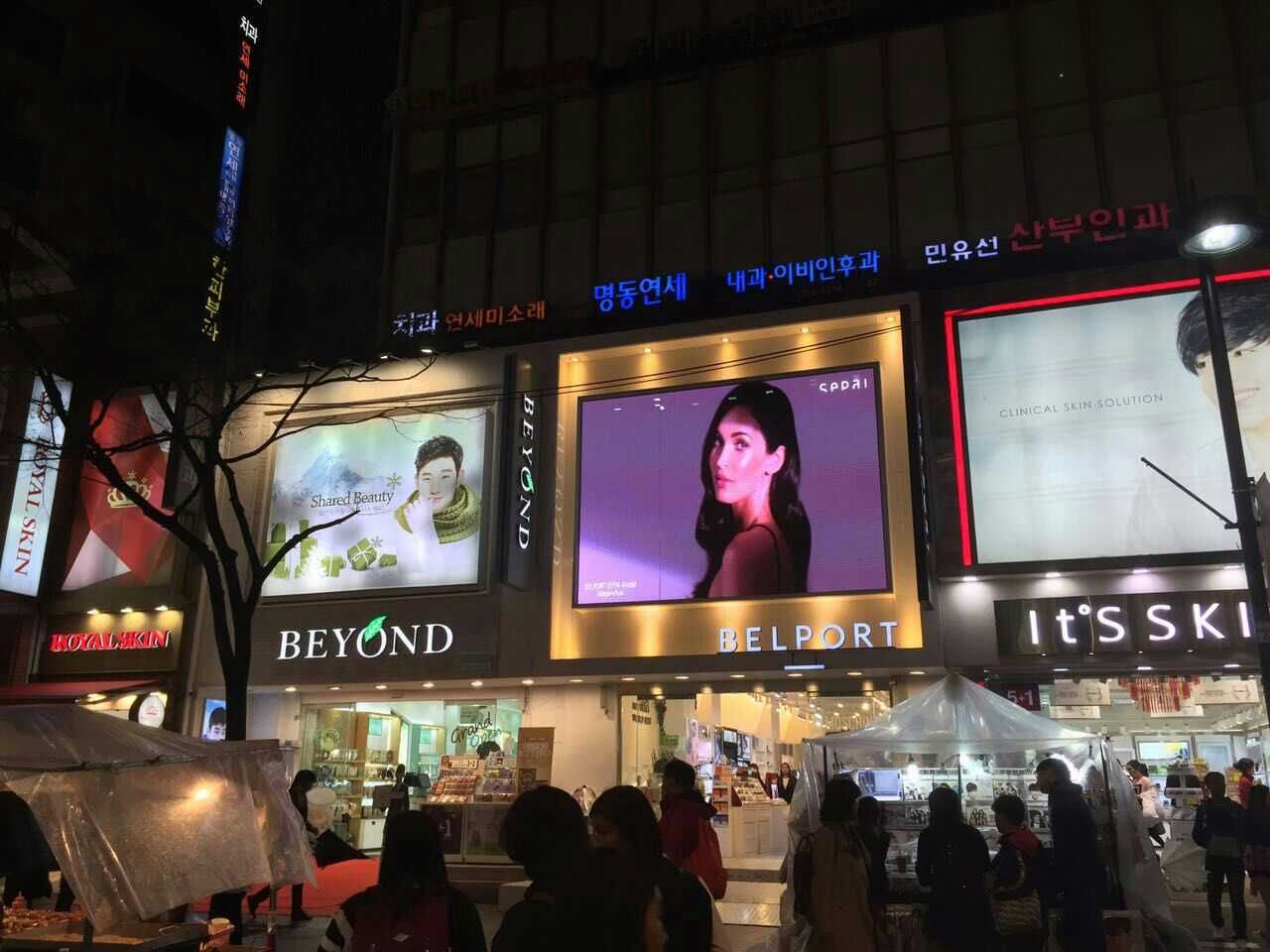

Fix Installation Outdoor LED Displays are widly used in air port ,wharf,station,culture square,stadium,hotel,traffic,party etc.
Export Markets: South America,North America,Oceania,Western Europe,Mid East,Southeast Asia,Africa,Eastern Asia etc.
| Parameters | Outdoor Die-casting LED Display Series ( 640 MM X 640MM ) |
| Pixel Pitch (mm) | 6.67mm | 8mm | 10mm | 10mm |
| Pixel density(pix/m2) | 22545 | 15625 | 10000 | 10000 |
| LED Type | 3535 | 3535 | 3535 | Dip346 |
| Viewing Angle | X,Y140° | X,Y140° | X,Y140° |
| Brightness(nits) | ≥5000 | ≥5000 | ≥5000 |
| Drive Method | 1/8 | 1/4 | 1/4 |
| Color Depth | 65536 |
| Refresh Rate(Hz) | 1920 | 1920 | 1920 |
| Module Size (mm) | 320×160×16 |
| Cabinet Size(mm) | 640×640×80 |
| Cabinet Material | aluminum |
| Cabinet weight(kg) | 12 | 17 | 17 |
| Voltage | 200-240V |
| Average.power(W/m2) | 230 | 230 | 230 |
| Max.power (W/m2) | 700 | 700 | 700 |
| IP Grade | IP65/IP54 |
| Operating temperature/humidity | temperature:-20ºC~ 50ºC humidity:10~90%RH |
| Storage temperature/ humidity | temperature:-40ºC~ 60ºC humidity:10~90%RH |
| Lifetime(h) | ≥50000 |
| Compliant Standard | CCC(CE)Rosh |
P8 Outdoor Rental LED Display Features:
1.Use SMD technology to make the LED display have good video effect.
2.Synchronously adjust the brightness and color to make the true and exquisite image.
3.High contrast, high refresh rate make the image without any delay, trailing smear.
4.Compatible to many signal sources such as AV, S-Video, DVI, VGA, YPbPr, HDMI,SDI,DP etc.
5.Special wooden Case package protect the whole screen system.
6.PCB patent technology, the most stable signal transmission technology in the world.
7.Combine perfect design and stage of the art technology for united cabinet screen with simple appearance, compact strcture, stable performance
8.good quality makes sure the products have long life span
