| Prod Model: |
P10 outdoor led display |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Brightness: |
More Than 6500 CD |
| Mini Order: |
1 Sqm |
| Standard Cabinet Size: |
960mm X960mm X 150mm |
| Packed: |
Wooden Case or Flight Case |
| Tube Chip Color: |
Full Color |
| IP Rating: |
IP65 |
| Pixel Pitch: |
10mm |
| Pixel Configuration: |
1R, 1G, 1B |
| Display Function: |
Video Display |
| Average Power Consumption: |
350W / m² |
| Pixel Density: |
10000 dot / m² |
| Scanning Mode: |
1/4 Scan |
| Display Type: |
LED Video Display |
| Application: |
Advertising |
| Certification: |
CCC |
Product Description

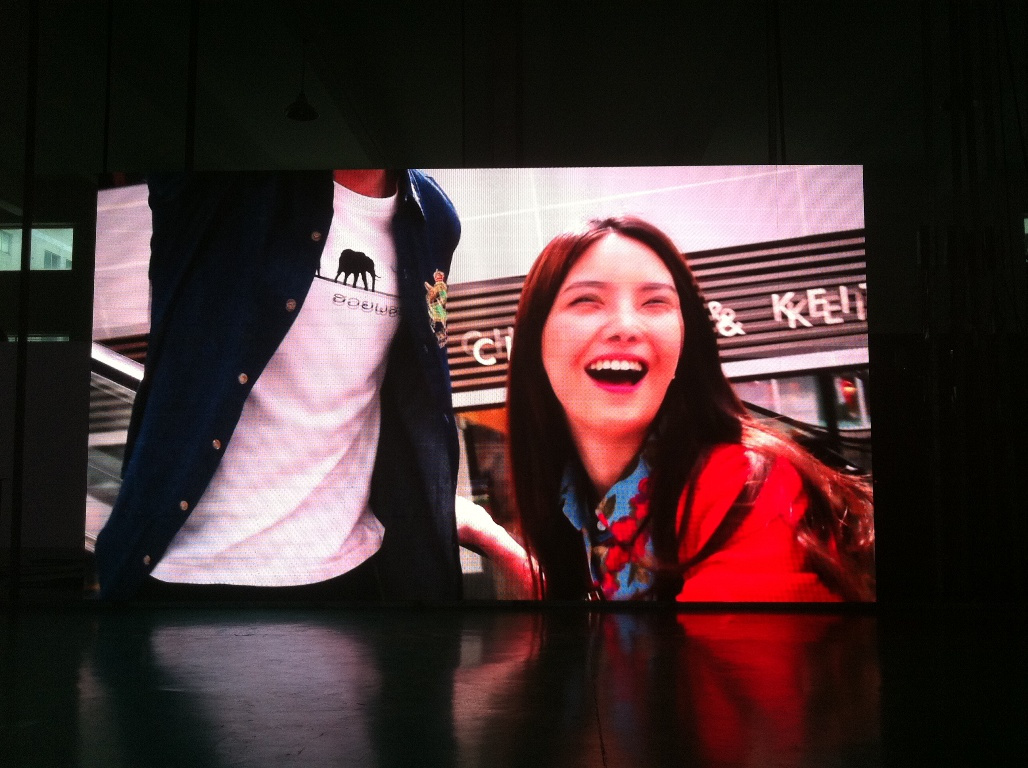

P10 Full color outdoor LED Display for fix installation
Fix installation LED Display Screen cabinet view
P10 Outdoor LED Screen detail specificationFunction and Technology Character
(1) Multiform file formats, such as VGA, Video, AVI, MOV, MPG, DAT, VOB and so on are comprehensive.
(2) Information source can be camera, video, VCD, DVD, LD, TV and so on.
(3) Clear picture without flicker and distortion.
(4) Brightness, contrast, saturation can be adjust by itself and manual.
(5) Show everything with your PC does synchronously.
(6) Super correcting technology for distortion.
(7) One interface for sound signal and two for video signal at least.
(8) Connected and controlled by PC via LAN and remote control.
(9) Multiform language editions, such as English, French, Germany, Greek, Russian and so on.
| Display and control feature | Structure feature |
| Specification | Parameter | Specification | Parameter |
| Pixel Pitch | 10 mm | Module size | 160 mm*160 mm |
| Pixel composing | 1R1G1B | Display resolution/module | 16 dots*16 dots |
| Wavelength (R) | 625±5 | Standard cabinet size | 960mm*960 mm |
| Wavelength (G) | 522±3 | Weight per sqm | 56Kg/sqm |
| Wavelength (B) | 470±5 | Protection classification | --- IP65 |
| Wave Angle (H) | 110°(H)/ 60° | Install mode | Wallmount, hung and stand structure |
| LED package | DIP346 |
|
|
| Density | 10000 | Working power |
| Display color | 256*256*256 | Specification | Parameter |
| Whiteness brightness | ≥7500cd | Working voltage | AC 220v/380v±10% 47~64Hz |
| Brightness level | 128 grade | Max power/sqm | 1000W/sqm |
| Changing frame frequency | 60 Hz | Average power/sqm | 500W/sqm |
| Refresh | 400 Hz | Short circuit protection | Yes |
| Driving method | Constant Static current |
|
|
| Control mode | synchronous | Working environment |
| Display port | DVI | Specification | Parameter |
| Display mode | 1024*768 /1024*1024 | Environment | Outdoor |
| Out of control | 1/10,000 ( scattered) | Working temperature | --20~50c |
| lifetime | 100,000 hours | Working Humidity | 10~90% |
