| Prod Model: |
MAP-1200 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Used For: |
Civilian |
| Tube Type: |
IC Amplifier |
| Function: |
Amplifier Combined |
| Output Number: |
4 |
| Element Number: |
Monoamplifier |
| Conductive Mode: |
D |
| Usage: |
Home System, Civilian |
| Sound Channel: |
6 Channel |
| Voltage: |
AC 115V 60Hz/230V 50Hz Can Be Switched |
Product Description

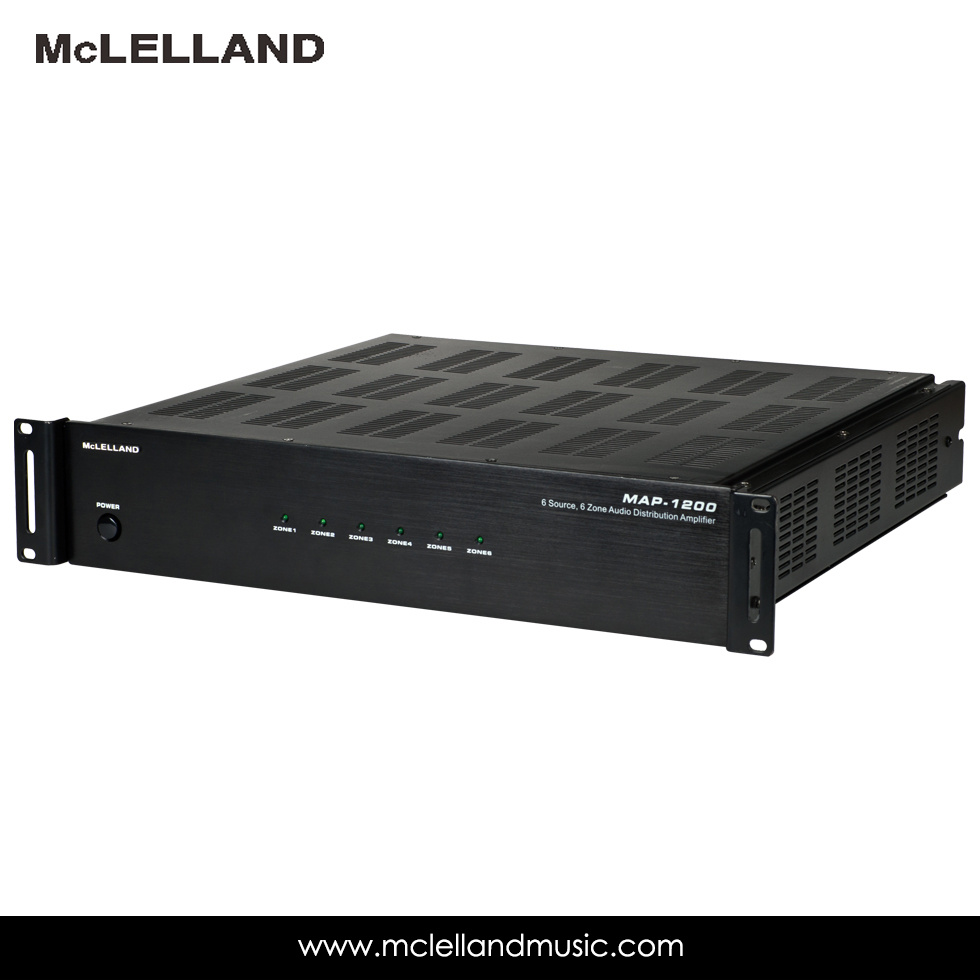

Mutil-Room Amplifier with 6source/Zone Audio(MAP-1200)
Features:
*High efficiency more than 85% (class D) amplification
*50W x 2 @ 4 Ohm output power per zone (25W x 2 @ 8 Ohm)
*Stereo/Bridge mono output
*Built-in IR receiver & IR remote controller for source select/volume/treble/bass
*12V DC trigger out to external devices when system in on
*12V DC mute trigger in from external devices
*RS-232 port allows 2-way communication with the Home Automation system
*Expandable up to 18 zones by additional units
*6 LEDs for 6 zones Power On and Standby
*Built in IR Emitter
*6 Keypads, 1 Remote Control, 1 RJ-45 connection Hub package
| S/N | >85dB A WTD |
| THD | <0.1% |
| Frequency Response | 20Hz-20KHz |
| Input Impedance | >47 K Ohm |
| Input Sensitivity | 250 mv |
| Power Supply | AC115V/60Hz, 230V/50Hz |
| Output Connection | Terminal Block |
| Dimension | 430W x 89H x 416D mm |
