| Prod Model: |
PH12 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Control System: |
Linsn or Colorlight |
| Cabinet Weight: |
<=65 Kg/Sq. M |
| Standard Cabinet Size: |
960mm*768mm |
| Best Viewing Angle: |
140° (H)/60° (V) |
| Max Power Consumption: |
1300W Per Sq. M |
| Brightness: |
>=7000 |
| Frame Frequency: |
60 Hz |
| Refresh Frequency: |
More Than 400Hz |
| Malfunction DOT Rate: |
3/100, 000 |
| LED Display Life Time: |
100, 000 Hours |
| Pixel Configuration: |
1R, 1G, 1B |
| Pixel Pitch: |
12mm |
| Pixel Density: |
6944 dot / m² |
| IP Rating: |
IP65 |
| Tube Chip Color: |
Full Color |
| Display Function: |
Video Display |
| Scanning Mode: |
1/4 Scan |
| Certification: |
CE |
| Average Power Consumption: |
520 W/Sqm |
Product Description

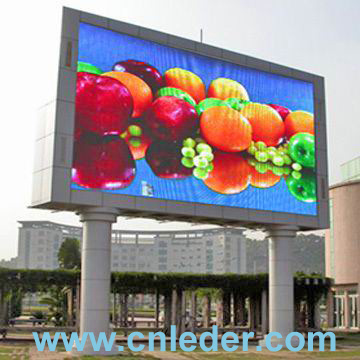

Hot sale brand new LED display board outdoor display pH12
1) CE and RoHS certification
2) Relatively low cost
3) Stable capability
4) High brightness
Features & Technical Specification
1. Wide application field: Advertising LED display, Stadium perimeter LED display, Mobile LED display for mobile media, shopping mall LED display for logo showing, bank & stock exchange LED display for rates showing, train & bus station, airport, telecommunication LED screen system for information showing and instruction, Stage performances and so on.
2. High Contrast and Frequency: With a very high brightness and frequency to ensure a vivid image of our LED screen system.
3. First-class LED chip: Supplied by Silan & other high strictly selected LED chip to ensure the long life time and high brightness of our LED screen system.
4. Clear vivid image quality: Even in direct, full-on sunlight to ensure you attracts more audience to get short ROI of your LED screen's investment.
5. Long-term Brightness: 7000-nit brightness for outdoor full color capacity throughout product lifetime of the LED display.
6. Easy Installation & Using: Easy & simple installation interface and user friendly software to ensure the user friendly interface of the LED screen system.
7. Convenient Servicing: Front or rear cabinet access make the maintains work very convenient and low cost to help you concentrate more time and energy on your main marketing promotion business.
The Advantages of LED DISPLAY
~Multi-formats showing advertising
LED screen can show the dynamic Advertising, play different format and change constantly
~Excellent Image
With vivid color and beautiful image, people will not get bored but get greatly impressed
~Low cost, high feedbacks
Price even same with the traditional billboard but get much higher feedbacks.
|
Display and control feature |
Structure feature |
|
Specification |
Parameter |
Specification |
Parameter |
|
Pixel Pitch |
12 mm |
Module size |
192 mm*192 mm |
|
Pixel composing |
1R1G1B |
Display resolution/module |
16 dots*16 dots |
|
Wavelength (R) |
620-630nm |
Standard cabinet size |
960mm*768mm |
|
Wavelength (G) |
520-535nm |
Cabinet Weight |
≤ 65 Kg/sq. m |
|
Wavelength (B) |
465-475nm |
Protection classification |
IP65 |
|
Wave Angle (H) |
140° (H)/60° (V) |
Install mode |
Wall mounted, hung and stand structure |
|
LED package |
DIP 346 |
Cabinet Material |
Iron/Aluminum |
|
Density per sq. m |
6, 944pixel |
Working power |
|
Grey scale |
12-16bit |
Specification |
Parameter |
|
Whiteness brightness |
≥ 7000 |
Working voltage |
AC 220v/50Hz± 10% or AC110v/50Hz± 10% |
|
Frame frequency |
60 Hz |
Average/Max power |
520W/1300W per sq. m |
|
Refreshing frequency |
More than 400Hz |
Short circuit protection |
Yes |
|
Driving method |
1/4 Constant Driving |
Led Lamp type |
Nichia/Cree/Silan/OPTO |
|
Control mode |
synchronous |
Working environment |
|
Display port |
DVI |
Environment |
Outdoor |
|
Malfunction dot |
3/100, 000 |
Working temperature |
--20~50 |
|
MTBF |
10, 000 hours |
Working Humidity |
10~90% |
Shenzhen Leder Electronics Co., Ltd. Locates in E Building, the new world of Science and Technology Industrial Park, XiaShiJia, Gongming Street Guangming New Area, ShenZhen, Guangdong, China. LEDER is the high & new technology enterprise specializing in the Research & Development of LED displaying products, production, sales, engineering service, etc.
Based on more than 10 years of outstanding development, LEDER becomes one of the most advanced LED display manufacturers in China and also one of the biggest professional LED display manufacturers in Southern China.
With modern workshop for electronic processing, assembling, adjusting and aging, LEDER ensures the production capability of 20000 m2 LED display for all types yearly, and is able to provide one package service for our clients from consultant, production, installation, adjustment & test, training to after service.
LEDER positively practices the environmental protection and energy saving. In 2008, LEDER firstly launched OUTDOOR SMD (5050, 5060) 3IN1 FULL COLOR LED DISPLAY. Solved 3 difficult problems on outdoor SMD LED Displays successfully - brightness, heat extraction and water proofing, and made-up deficiencies of the traditional LED Display of small viewing angle, module's nonuniform color, large power consumption, overweight, and so on. In 2009, LEDER brought out LED lighting products: Flexible LED video strip, LED flexible strip, LED video pels light, LED module^^, which attracts batches eyes and gains very good comment from experts and audients.
Since the foundation, LEDER has been insisting the tenet of "Build first-class brand, win with superior quality and service", and has actively conducted the ISO 9001 system, its products have been awarded certificates such as CE, RoHS. Besides owning a few of independent core technology and patents, LEDER firstly built up the enterprise standard, which effectively promotes the healthy development of Chinese LED display industry. Successively, LEDER undertakes batches of high quality projects in domestic and oversea. Now LEDER has jumped to be the biggest professional LED display manufacturer in ShenZhen, and has set up its leading position in optoelectronic industry, and to be as sponsors at the 16th Asian Games.
LEDER's General Manager has been directly working on the management of R&D, production, engineering, and after-service for more than 15 years. He has experienced the stage of starting, developing and maturing of China's LED Display industry. He would like to cooperate with all customers, leading all of LEDER staffs, to witness the prosperity of LEDER and LED Display industry together.
"Share our successful happiness with our clients" is the business concept we always keep. With your continuing care and support, we, together enter to LED products' energy saving, colorful, and bright future.
