Product Description

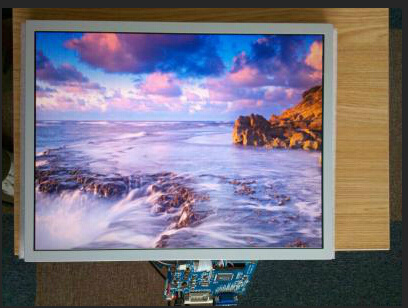

Panel Type :TM150TDS50-02
Panel Type : a-Si TFT-LCD, the LCD screen
Applications : [ computer monitors ]
Working temperature : 0 ~ 55 ° C
Storage temperature : -20 ~ 60 ° C
RoHS Compliance : RoHS Compliance
Salient features : matte surface , wide viewing angle
Remarks Information : TC0'5.0 Compliance
Tianma LCD TM150TDS50-02 structural properties
Panel Size : 15.0 inches
Point resolution : 1024 (RGB) × 768 (XGA)
Pixel density : 85 PPI
Pixel arrangement : RGB vertical stripe [
LCR Vertical Stripe: left, right vertical strip
Rectangle: square
RGB Delta: red, green and blue triangle
RGB Horizontal Stripe: Red and Green blue horizontal stripes
RGB Vertical Stripe: RGB vertical stripe
RGBW Rectangle: red, green, blue and white squares
RG (BW) PenTile :( red and green ) ( blue ) vertical bar like
RG (BG) PenTile :( red and green ) ( blue-green ) vertical strip
RGBY Vertical Stripe: red, green, blue and yellow vertical stripes ]
Aspect Ratio : 4 : 3 ( width: height )
Physical shape: flat rectangular display
Dot pitch : 0.099 × 0.297 mm ( horizontal * vertical )
Pixel pitch : 0.297 × 0.297 mm ( horizontal * vertical )
Panel Weight : 1.00Kgs (Typ.)
Finish: matte
Display area : 304.128 × 228.096 mm ( horizontal * vertical )
Viewable area : 307.4 × 231.3 mm ( horizontal * vertical )
Dimensions : 326.5 × 253.5 mm ( horizontal * vertical )
Dimensions : 11.3 / 12.0 (Typ / Max..) Mm ( thickness )
Hole bracket : Side mounting holes (4-M3) on left, right bezel
Touch Screen: No
Tianma LCD TM150TDS50-02 optical properties
Display Mode : TN, often white display , transmissive [br /> IPS hard screen series : AAS, ADS, AHVA, FFS, IPS, New Mode2, PLS, SFT, Vistarich
VA soft screen series : ASV, HVA , MVA, PVA, SVA, UV2A, VA]
Panel Brightness : 400 cd / m2 (Typ.)
Contrast Ratio : 600: (. Typ) 1 ( transmission )
Display Color : 16.7M (6-bit + Hi-FRC)
Gamut : 60% NTSC (CIE1931)
Response time : (. Typ) 2/6 (Tr / Td) (ms)
Viewing Angle : 80/80/80/80 (. Typ) (CR≥10) ( left / right / up / down )
White color : X: 0.313; Y: 0.329
White field change : 1.20 / 1.30 (Typ / Max..) (9 points) [ The maximum brightness value of the white field variation = white field / minimum luminance value white field ]
Tianma LCD TM150TDS50-02 electronic properties
Scanning Frequency : 60Hz [
120Hz (60HZ Input ) : Built MEMC circuit
120Hz + 120Hz: 120Hz panel + 120Hz backlight
240Hz (60HZ Input ) : Built MEMC circuit ]
Reverse Scan : No
Total power consumption : (. Typ) 10.1W
Tianma LCD TM150TDS50-02 lighting system
Lamp Location : side- light ( top and bottom )
Light source type : LED 50Khrs+LED Driver
Lamp Quantity : 2 pcs [ [ screen Copyright, plagiarism is strictly prohibited ] CCFL, EEFL, HCFL, FFL quantity : x pcs
WLED, RGB LED quantity : x strings, xSxP
Examples Description 3S8P × 2CN
3S: 3 LED series ,
8P: 8 series and parallel ,
2CN: 2 terminals ]
Lamp Shape: straight
Source life : 40K (Min.) ( H )
Single lamp voltage : 610 ± 61V
Single lamp current : 3.5 / 7.0 / 7.5mA (. Min / Typ / Max..)
Lamp Frequency : 50 ± 10KHz
Lamp starting voltage : (. Max) 1100 / 1600V (Ta = + 25/0 ºC)
Interface Type: Terminal
Backlight interface : Brand Model number defines the number of feet away from the foot [br> H: Higt Voltage ( high pressure )
N: No connection ( not connected )
L: Low Voltage ( Low )
A: anode ( anode )
C: Cathode ( cathode ) ]
JST BHR-03VS-1 4.0 mm 3 pins 2 pcs BLL-3PINS-HNL
Tianma LCD signal interface
Signal categories : LVDS
Signal categories : LVDS (1 ch, 8-bit)
Panel Voltage : 3.3V (Typ.)
Panel Current : 500 / 700mA (Typ / Max..)
Interface Type: Terminal
Signal Interface: Brand Model feet away from the pin count the number of definitions [ screen libraries internal code ]
HRS DF14H-20P-1.25H 1.25 mm 20 pins 1 pcs LVDS-20P1C8B-020C
Tianma LCD TM150TDS50-02 Package
Qty : 14 pcs
Carton size : 378 × 368 × 315.5 mm ( length × width × height )
Gross Weight : 14.6 Kgs
Yaosheng provide total solutions for LCD panels and modules. We support both monochrome STNs and full-color TFT LCDs. We provide full customized monochrome STN, and semi-customized TFT modules. We are supplying a wide variety of LCD modules to meet the ever-growing demands.
Yaosheng Solutions get strong support from Tianma, Truly, and Innolux, we provide flexible support to our customers, fast delivery, flexible MOQ, and competitive cost.
Please check the following website to find the products supported by us.
Our products include LCD panels of TN, STN, FSTN; LCMs with COG, COB, TAB; And TFT LCD modules.
Custom LCD Panels: Segment, icon, chracter, and mixed
Custom / Standard Character: 16X1, 16X2, 16X4, 20X2, 20X4, 24X2, 40X2, 40X4
Custom / Standard Graphic: 128X64, 128X128, 160X128, X160X160, 240X128, 240X64, 320X240
Semi-custom / Standard TFT Modules: 2.8", 3.5", 4.3", 4.7", 5.0", 7.0", 10.4"
All of our displays are RoHS compliant, which have been used in wide range of applications: Communication, Medical, Instrumentation, Metering, and Industrial applications.
We endeavour to serve our customers with Quality Products, Competitive Cost, Excelled Service, and Fast Delivery.
