| Prod Model: |
TM150TDSG52 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Application: |
Graphic Design |
| Aspect Ratio: |
4:3 |
| Feature: |
LED Backlight Display |
| Type: |
TFT |
| Widescreen: |
Widescreen |
| Response Time: |
10ms |
| 3D: |
Not 3D |
| Screen Size: |
15inch |
| Optimum Resolution: |
1024*768 |
| Interface Type: |
Lvds |
Product Description

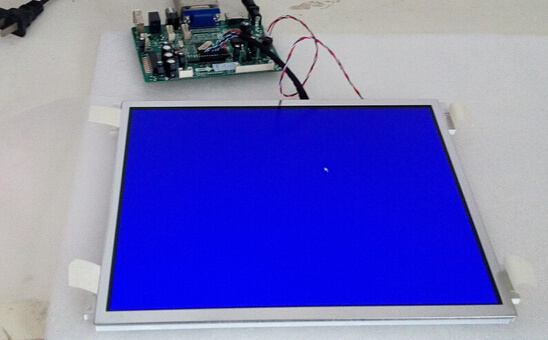

Panel Type : TM150TDSG52
Panel Type : a-Si TFT-LCD, the LCD screen
Panel Size : 15.0 inches
Resolution : 1024 (RGB) × 768
Display Mode : TN, often white display , transmissive
IPS hard screen series : AAS, ADS, AHVA, FFS, IPS, New Mode2, PLS, SFT, Vistarich
VA soft screen series : ASV, HVA , MVA, PVA, SVA, UV2A, VA]
Finish: matte
Panel Brightness : 250 cd / m2 (Typ.)
Contrast Ratio : 600: (. Typ) 1 ( transmission )
Display color : 262K / 16.7M (6-bit / 6-bit + Hi-FRC)
Response time : 3/5 (. Typ) (Tr / Td) (ms)
Viewing Angle : 80/80/80/80 (. Typ) (CR≥10) ( left / right / up / down )
Scanning Frequency : 60Hz
120Hz (60HZ Input ) : Built MEMC circuit
120Hz + 120Hz: 120Hz panel + 120Hz backlight
240Hz (60HZ Input ) : Built MEMC circuit ]
Light source type : WLED [
CCFL, EEFL, HCFL, FFL quantity : x pcs
WLED, RGB LED quantity : x strings, xSxP
illustrate 3S8P × 2CN
3S: 3 LED series
8P: 8 series parallel
2CN: 2 terminals ]
Signal Interface : LVDS (1 ch, 6/8-bit)
Panel Voltage : 3.3V (Typ.)
RoHS: [RoHS Compliance]
Yaosheng provide total solutions for LCD panels and modules. We support both monochrome STNs and full-color TFT LCDs. We provide full customized monochrome STN, and semi-customized TFT modules. We are supplying a wide variety of LCD modules to meet the ever-growing demands.
Yaosheng Solutions get strong support from Tianma, Truly, and Innolux, we provide flexible support to our customers, fast delivery, flexible MOQ, and competitive cost.
Please check the following website to find the products supported by us.
Our products include LCD panels of TN, STN, FSTN; LCMs with COG, COB, TAB; And TFT LCD modules.
Custom LCD Panels: Segment, icon, chracter, and mixed
Custom / Standard Character: 16X1, 16X2, 16X4, 20X2, 20X4, 24X2, 40X2, 40X4
Custom / Standard Graphic: 128X64, 128X128, 160X128, X160X160, 240X128, 240X64, 320X240
Semi-custom / Standard TFT Modules: 2.8", 3.5", 4.3", 4.7", 5.0", 7.0", 10.4"
All of our displays are RoHS compliant, which have been used in wide range of applications: Communication, Medical, Instrumentation, Metering, and Industrial applications.
We endeavour to serve our customers with Quality Products, Competitive Cost, Excelled Service, and Fast Delivery.
