| Prod Model: |
TMS150XG1-10TB |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Application: |
Graphic Design |
| Aspect Ratio: |
4:3 |
| Feature: |
LED Backlight Display |
| Type: |
TFT |
| Widescreen: |
Widescreen |
| Response Time: |
10ms |
| 3D: |
Not 3D |
| Screen Size: |
15inch |
| Optimum Resolution: |
1024*768 |
| Interface Type: |
Lvds (1 CH, 8-Bit) |
Product Description

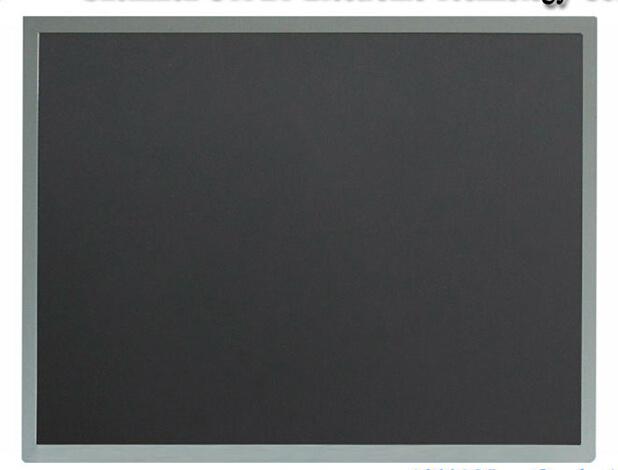

Panel Type : TMS150XG1-10TB
Panel Type : a-Si TFT-LCD, the LCD screen
Applications : [ computer monitors ]
Working temperature : 0 ~ 55 ° C
Storage temperature : -20 ~ 60 ° C
RoHS Compliance : RoHS Compliance
Salient features : matte surface , wide viewing angle
Remarks Information : TC0'5.0 Compliance
Tianma LCD TMS150XG1-10TB structural properties
Panel Size : 15.0 inches
Point resolution : 1024 (RGB) × 768 (XGA)
Pixel density : 85 PPI
Pixel arrangement : RGB vertical stripe [
LCR Vertical Stripe: left, right vertical strip
Rectangle: square
RGB Delta: red, green and blue triangle
RGB Horizontal Stripe: Red and Green blue horizontal stripes
RGB Vertical Stripe: RGB vertical stripe
RGBW Rectangle: red, green, blue and white squares
RG (BW) PenTile :( red and green ) ( blue ) vertical bar like
RG (BG) PenTile :( red and green ) ( blue-green ) vertical strip
RGBY Vertical Stripe: red, green, blue and yellow vertical stripes ]
Aspect Ratio : 4 : 3 ( width: height )
Physical shape: flat rectangular display
Dot pitch : 0.099 × 0.297 mm ( horizontal * vertical )
Pixel pitch : 0.297 × 0.297 mm ( horizontal * vertical )
Panel Weight : 1.00Kgs (Typ.)
Finish: matte
Display area : 304.128 × 228.096 mm ( horizontal * vertical )
Viewable area : 307.4 × 231.3 mm ( horizontal * vertical )
Dimensions : 326.5 × 253.5 mm ( horizontal * vertical )
Dimensions : 11.3 / 12.0 (Typ / Max..) Mm ( thickness )
Hole bracket : Side mounting holes (4-M3) on left, right bezel
Touch Screen: No
Tianma LCD TMS150XG1-10TB optical properties
Display Mode : TN, often white display , transmissive [br /> IPS hard screen series : AAS, ADS, AHVA, FFS, IPS, New Mode2, PLS, SFT, Vistarich
VA soft screen series : ASV, HVA , MVA, PVA, SVA, UV2A, VA]
Panel Brightness : 250 cd / m2 (Typ.)
Contrast Ratio : 600: (. Typ) 1 ( transmission )
Display Color : 16.7M (6-bit + Hi-FRC)
Gamut : 60% NTSC (CIE1931)
Response time : (. Typ) 2/6 (Tr / Td) (ms)
Viewing Angle : 80/80/80/80 (. Typ) (CR≥10) ( left / right / up / down )
White color : X: 0.313; Y: 0.329
White field change : 1.20 / 1.30 (Typ / Max..) (9 points) [ The maximum brightness value of the white field variation = white field / minimum luminance value white field ]
Tianma LCD TMS150XG1-10TB electronic properties
Scanning Frequency : 60Hz [
120Hz (60HZ Input ) : Built MEMC circuit
120Hz + 120Hz: 120Hz panel + 120Hz backlight
240Hz (60HZ Input ) : Built MEMC circuit ]
Reverse Scan : No
Total power consumption : (. Typ) 10.1W
Tianma LCD TMS150XG1-10TB lighting system
Lamp Location : side- light ( top and bottom )
Light source type : CCFL
Lamp Quantity : 2 pcs [ [ screen Copyright, plagiarism is strictly prohibited ] CCFL, EEFL, HCFL, FFL quantity : x pcs
WLED, RGB LED quantity : x strings, xSxP
Examples Description 3S8P × 2CN
3S: 3 LED series ,
8P: 8 series and parallel ,
2CN: 2 terminals ]
Lamp Shape: straight
Source life : 40K (Min.) ( H )
Single lamp voltage : 610 ± 61V
Single lamp current : 3.5 / 7.0 / 7.5mA (. Min / Typ / Max..)
Lamp Frequency : 50 ± 10KHz
Lamp starting voltage : (. Max) 1100 / 1600V (Ta = + 25/0 ºC)
Interface Type: Terminal
Backlight interface : Brand Model number defines the number of feet away from the foot [br> H: Higt Voltage ( high pressure )
N: No connection ( not connected )
L: Low Voltage ( Low )
A: anode ( anode )
C: Cathode ( cathode ) ]
JST BHR-03VS-1 4.0 mm 3 pins 2 pcs BLL-3PINS-HNL
Tianma LCD TMS150XG1-10TB signal interface
Signal categories : LVDS
Signal categories : LVDS (1 ch, 8-bit)
Panel Voltage : 3.3V (Typ.)
Panel Current : 500 / 700mA (Typ / Max..)
Interface Type: Terminal
Signal Interface: Brand Model feet away from the pin count the number of definitions [ screen libraries internal code ]
HRS DF14H-20P-1.25H 1.25 mm 20 pins 1 pcs LVDS-20P1C8B-020C
Tianma LCD TMS150XG1-10TB Package
Qty : 14 pcs
Carton size : 378 × 368 × 315.5 mm ( length × width × height )
Gross Weight : 14.6 Kgs
