| Prod Model: |
From GM-035K(0.35T/day) to GM-500K(50T/day) |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Quality: |
Top Quality and Superior Perfomance |
| Material Of The Evaporator: |
Stainless Steel or Carbon Steel |
| Power Supply: |
3pH/380v/50Hz |
| Refrigerant: |
R22/R134a/R404a |
| Efficiency: |
Energy-Saving |
| Control: |
Electric |
| Power: |
<200W |
| Structure: |
Integral Type |
| Material: |
Stainless Steel |
| Application: |
Industrial |
| Condensing Mode: |
Air-Cooled |
| Filtering Device: |
Without Filtering Device |
| Automatic Cleaning Device: |
Without Automatic Cleaning Device |
| Ice Shape: |
Flake Ice |

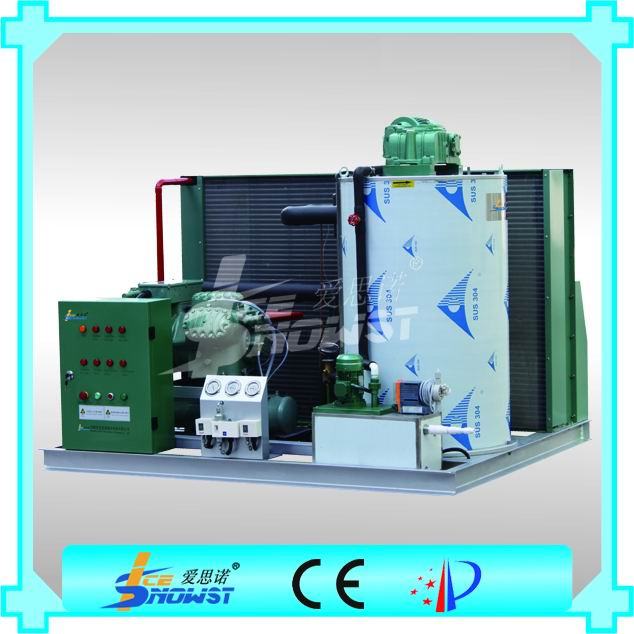

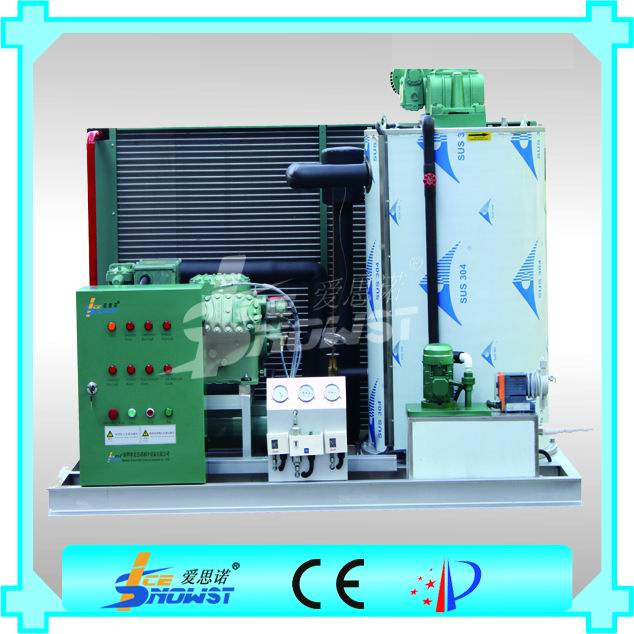

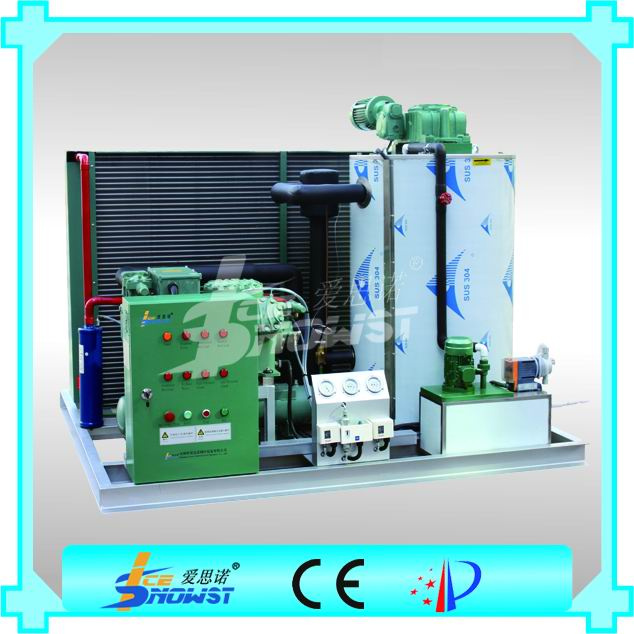

Product Description
Flake ice making machine Features:
1) Flake ice maker Daily output: 350kg/24h----50000kg/24h
2) Ice flake making machine Capability: Good
3) Flake ice temperature: -5 degrees~-8 degrees
4) Flake ice thickness: 1.8-2.5mm
5) Ice flake machine Texture: Excellent
6) The flake ice is dry and smooth with not obvious edges, which will not damage the goods and can maintain the original flavor of the freezing food and keep the freshness of the food and fruits.
Flake ice machine is a type of ice making machine, widely been applied in the industrial and commercial fields. Flake ice is type of dry and crispy ice, it hardly forms any shape edges, in food cooling process, this nature has made it the best material for cooling, it can reduce the possibility of damage to food to the lowest rate and maintain the freshness of the vegetables and fruits.
Features and advantages of Flake ice:
1. Flake ice--Large contact area
As its flat and thin shape, it has got the largest contact area among all types of ice. The larger its contact area is, the faster it cools other stuff. In comparison with 1 ton of cube ice, 1 ton of flake ice has 1799 sqm of contact area while 1 ton of cube ice only has 1383 sqm, therefore the flake ice has got much better cooling effects than cube ice.
2. Ice flake--Low cost of producing
The producing of flake ice is very economical, it only requires 1.3RT refrigerating effect to make 1 ton of ice from 16C water.
3. Flake ice--Perfect in food cooling
Flake ice is type of dry and crispy ice, it hardly forms any shape edges, in food cooling process, this nature has made it the best material for cooling, it can reduce the possibility of damage to food to the lowest rate.
4. Flake ice--Thoroughly mixing
Flake ice can become water quickly through the rapid heat exchanging with products, and also supply the moisture for products to be cooled.
5. Flake ice--Convenient for delivery
Because the flake ice fairly dry, it will not stick with others during delivery or storage.
The procedure of producing flake ice: When the refrigeration system begins to work normally, the water in the water tank is pumped into the water distribution pan by the circulating pump. Driven by the reducer, the water in the pan evenly flows down to the inner wall of the evaporator. The refrigerant in the refrigeration system evaporates through the loop inside the evaporator and absorbs large amount of heat by exchanging heat with the water on the wall. As a result. The water flowing over the surface of inner evaporator wall sharply cools down to below the freezing point and freezes into ice instantaneously. Part of the water film attached the bottom of the evaporator and then into the water tank for recycling. When the ice on the inner wall reaches a certain thickness, ice blade is driven by the reducer and then scratches the ice off. Finally the ice flakes fall into the ice storage bin at the bottom of the ice flaker and are stored for future uses.
| Model | daily output | Bin capacity | Ref. capacity (kcal/h) | Evaporating Temperature | Total power | Power supply | Refrigeration | Cooling mode | Unit Dimension L*W*D(mm) | Bin size | weight (exclude bin)(kg) |
| (kg/24h) | (kg) | (kw) | L*W*D(mm) |
| GM-035K | 350 | 200 | 1645 | -20 degrees | 2.5 | 3p/380/50Hz | R404A | air cooling | 1050*740*780 | 1070*980*900 | 196 |
| GM-04K | 400 | 300 | 1880 | -20 degrees | 2.68 | 3p/380/50Hz | R404A | air cooling | 1235*740*780 | 1280*1050*1060 | 205 |
| GM-05k | 500 | 300 | 2350 | -20 degrees | 2.7 | 3p/380/50Hz | R404A | air cooling | 1235*740*780 | 1280*1050*1060 | 205 |
| GM-06k | 600 | 300 | 2820 | -20 degrees | 3 | 3p/380/50Hz | R404A | air cooling | 1235*740*780 | 1280*1050*1060 | 215 |
| GM-08k | 800 | 300 | 3760 | -20 degrees | 3.5 | 3p/380/50Hz | R404A | air cooling | 1235*740*862 | 1280*1050*1060 | 240 |
| GM-10k | 1000 | 400 | 4700 | -20 degrees | 4.5 | 3p/380/50Hz | R404A | air cooling | 1290*970*912 | 1330*1250*1210 | 295 |
| GM-12k | 1200 | 400 | 5640 | -20 degrees | 5 | 3p/380/50Hz | R404A | air cooling | 1290*970*982 | 1330*1250*1210 | 340 |
| GM-15k | 1500 | 400 | 7050 | -20 degrees | 8.3 | 3p/380/50Hz | R404A | air cooling | 1290*970*982 | 1330*1250*1210 | 360 |
| GM-20k | 2000 | 500 | 9400 | -20 degrees | 9.7 | 3p/380/50Hz | R404A | air cooling | 1500*1085*1208 | 1520*1320*1300 | 420 |
| GM-25k | 2500 | 500 | 11750 | -20 degrees | 10.2 | 3p/380/50Hz | R404A | air cooling | 1500*1085*1208 | 1520*1320*1300 | 440 |
| GM-30K | 3000 | 1200 | 14100 | -20 degrees | 11.2 | 3p/380/50Hz | R404A | air cooling | 1800*1135*1308 | Subject to the actual needs of the customer | 550 |
| GM-40K | 4000 | 2500 | 18800 | -200 degrees | 15.1 | 3p/380/50Hz | R404A | Water cold | 1650*1555*1308 | 820 |
| GM-50K | 5000 | 3000 | 23500 | -20 degrees | 18 | 3p/380/50Hz | R404A | Water cold | 1650*1555*1580 | 1050 |
| GM-80K | 8000 | 5000 | 37600 | -20 degrees | 30.5 | 3p/380/50Hz | R404A | Water cold | 2230*1890*1470 | 1280 |
| GM-100K | 10000 | 6000 | 47000 | -20 degrees | 31 | 3p/380/50Hz | R404A | Water cold | 2230*1890*1640 | 1360 |
| GM-120K | 12000 | 8000 | 56400 | -20 degrees | 42.1 | 3p/380/50Hz | R404A | Water cold | 2480*2000*1780 | 1530 |
| GM-150K | 15000 | 8000 | 70500 | -20 degrees | 56 | 3p/380/50Hz | R22 | Water cold | 3400*2080*1880 | 2820 |
| GM-200K | 20000 | 12000 | 93500 | -20 degrees | 63 | 3p/380/50Hz | R22 | Water cold | 3400*2080*2300 | 3650 |
| GM-250K | 25000 | 15000 | 116875 | -20 degrees | 78.3 | 3p/380/50Hz | R22 | Water cold | 3400*2080/2600 | 3980 |
| GM-300K | 30000 | 15000 | 141000 | -20 degrees | 102.5 | 3p/380/50Hz | R22 | Water cold | 4580*2770*2400 | 5000 |
| GM-400K | 40000 | 20000 | 188000 | -20 degrees | 124.3 | 3p/380/50Hz | R22 | Water cold | 4580*2770*3000 | 5500 |
| GM-500K | 50000 | 25000 | 235000 | -20 degrees | 147.4 | 3p/380/50Hz | R22 | Water cold | 4580*2770*3500 | 6300 |
Shenzhen Icesnow Refrigeration Equipment Co., Ltd. is a high-tech enterprise and professional manufacturer of refrigeration equipment and system which specialized in researching, designing, producing and trading of industrial and commercial refrigeration technology and facilities of ice flake machine. The company owns the first-class equipment, advanced manufacturing workmanship and complete testing method as well as modern management mode. Now we have launched 3 series ice flake machines covering 16 types, with its daily output ranging from 400kgs to 50ton, which greatly satisfied the increasing demands on the commercial ice and industrial ice. Our products are widely used in hyper market freshing, food processing, ocean fishery, Chemicals and dyeing, bio-pharmacy and laboratories.
Icesnow ice system, with its main parts imported abroad, is elaborately designed and has a superior performance. For the whole system is automatically controlled by microcomputer, so it's extremely easy and simple for operation. And the bin cylinder is our patented product, which ranks a leading level and gains widely reputation in and abroad.
First-class products, continuous innovation, durative improvement and clients satisfaction is our tenet. Excellent quality product, complete service and reasonable price is our persistent principle to hold market. We believe our sincerity and seeking-better altitude deserves your trust.
