| Prod Model: |
GM-035K-GM30K |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Quality: |
Top Quality and Superior Perfomance |
| Material Of The Evaporator: |
Stainless Steel or Carbon Steel |
| Efficiency: |
Energy-Saving |
| Refrigerant: |
R22/R407c/R404A |
| Voltage: |
3p/380V/50Hz |
| Cooling Type: |
Air Cooling or Water Cooled |
| Compressor: |
Danfoss, Copeland, Bizter |
| Control: |
Electric |
| Structure: |
Integral Type |
| Application: |
Industrial |
| Condensing Mode: |
Air-Cooled |
| Filtering Device: |
Without Filtering Device |
| Automatic Cleaning Device: |
Without Automatic Cleaning Device |
| Ice Shape: |
Flake Ice |
| Power: |
2.4kw |
| Material: |
Carbon Steel |
Product Description

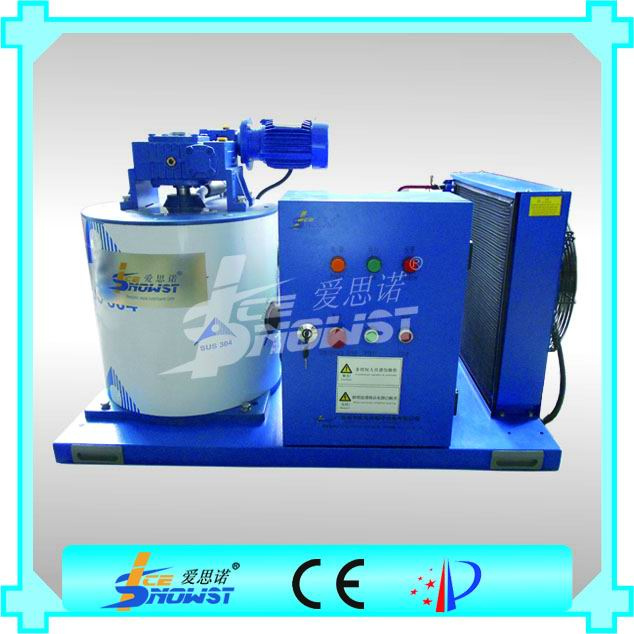

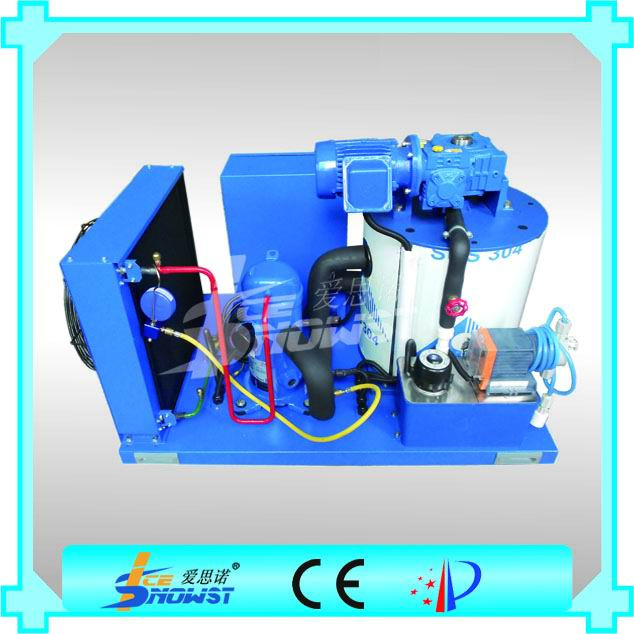

Icesnow Flake Ice Machine / China Ice Maker
Quality Flake Ice MachineFlake Ice is essential at all stages of fish and food from controlling temperature to keep fresh of food.
Flake ice may be used for various purposes such as,
1. Supermarket preservation: Keep the food and vegetable fresh and beautiful.
2. Fishery industry: Keeping Fish fresh during sorting, shipping and retailing,
3. Slaughtering industry: Maintain temperature and keep the meat fresh.
3. Concrete construction: Reduce the temperature of concrete during mixing, making the concrete more easy to composite.
Flake ice machine Features1. Daily output (kg/24hrs): 350-50000
2. Flake ice machines compressors: Famous brands compressor Bizter, Danfoss, Copeland, Hanbell
3. Refrigerant: R404A/R22/R407c
4. Flake ice thickness(mm): 1.5-2.2
5. Cooling type: Air cooling or water cooled or evaporative
6. Dimension (L*W*H, mm): 1650*1555*1650
| Model | daily output
(kg/24h) | Bin capacity
(kg) | Ref. capacity (kcal/h) | Evaporating Temperature | Total power
(kw) | Power supply | Refrigeration | Cooling mode | Unit Dimension L*W*D(mm) | Bin size
L*W*D(mm) | weight (exclude bin)(kg) |
| GM-10k | 1000 | 400 | 4700 | - 20 degrees | 4.5 | 3p/380/50Hz | R404A | air cooling | 1290*970*912 | 1330*1250*1210 | 295 |
| GM-12k | 1200 | 400 | 5640 | - 20 degrees | 5 | 3p/380/50Hz | R404A | air cooling | 1290*970*982 | 1330*1250*1210 | 340 |
| GM-15k | 1500 | 400 | 7050 | - 20 degrees | 8.3 | 3p/380/50Hz | R404A | air cooling | 1290*970*982 | 1330*1250*1210 | 360 |
| GM-20k | 2000 | 500 | 9400 | - 20 degrees | 9.7 | 3p/380/50Hz | R404A | air cooling | 1500*1085*1208 | 1520*1320*1300 | 420 |
| GM-25k | 2500 | 500 | 11750 | - 20 degrees | 10.2 | 3p/380/50Hz | R404A | air cooling | 1500*1085*1208 | 1520*1320*1300 | 440 |
Icesnow factory tour
Shenzhen Icesnow Refrigeration Equipment Co., Ltd. is a high-tech enterprise and professional manufacturer of refrigeration equipment and system which specialized in researching, designing, producing and trading of industrial and commercial refrigeration technology and facilities of ice flake machine. The company owns the first-class equipment, advanced manufacturing workmanship and complete testing method as well as modern management mode. Now we have launched 3 series ice flake machines covering 16 types, with its daily output ranging from 400kgs to 50ton, which greatly satisfied the increasing demands on the commercial ice and industrial ice. Our products are widely used in hyper market freshing, food processing, ocean fishery, Chemicals and dyeing, bio-pharmacy and laboratories.
Icesnow ice system, with its main parts imported abroad, is elaborately designed and has a superior performance. For the whole system is automatically controlled by microcomputer, so it's extremely easy and simple for operation. And the bin cylinder is our patented product, which ranks a leading level and gains widely reputation in and abroad.
First-class products, continuous innovation, durative improvement and clients satisfaction is our tenet. Excellent quality product, complete service and reasonable price is our persistent principle to hold market. We believe our sincerity and seeking-better altitude deserves your trust.
